Home > Products > EUI/EUP Repair Test Kits > CAMBOX EUI/EUP TESTER AND ADAPTORS OF EUI/EUP EUS-2000

CAMBOX EUI/EUP TESTER AND ADAPTORS OF EUI/EUP EUS-2000

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other	Certification	CE
Applicable Models	Delphi E3 dual-solenoid EUI, Siemens Piezo for Audi EUI, Cummins ISX/QSX, Scania 12L EUI, and other single solenoid EUI/EUPs(Detroit, Cummins, Caterpillar, DDC92, Iveco Cursor, Volvo, Scania, Audi, VW Seat, Skoda, Land Rover, John Deer, DDC/MTU S2000, Mercedes Benz, Mack,RenaultDAF, Deutz 2015, Deutz 1013,	Brand Name	injectronix
Model Number	EUS-2000

Product Description

EUS-2000 Repair Test Kits for EUP and EUI

Test an EUI or an EUP on a conventional pump test bench. Offer adapter kits for most EUIs and EUPs on the world market.

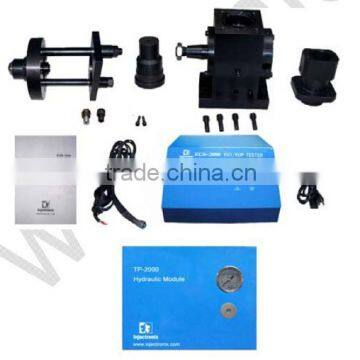

The EUS-2000 repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP). The tester consists of a mechanical cam box (CB-1000) with customer specified EUI/EUP adapter kits and a modular designed electronic controller (EU-2000). The CB-1000 cam box is driven by a standard high pressure fuel injection pump test bench. The EU-2000 controller is modular designed to fit customer’s applications for testing various EUI.s/EUPs.

Testing an EUI Testing an EUP

The tester is capable to test EUI/EUP products for following brands of manufacturers.

EUI/EUP Applications

Design Features

One cambox for all major EUI/EUP models with corresponding adapters and camshafts
Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench
EU-2000 Controller, modular design
- Base system. Single solenoid EUI/EUP module, for
  - Most of single EUI/EUP on the market
  - Cummins CELECT EUI, (L10/M11/N14)
- Option. Dual-solenoid module for Delphi E3 EUI
- Option. Piezo EUI module for VW Piezo EUI
- Option. Response time measurement module
- Option. Cummins ISX EUI metering and timing control module
- Customer may upgrade EU-2000 by adding a few more optional modules themselves
- Adjustable Beginning of Injection (BOI) in crank angle degrees
- Adjustable injection period (PW) in crank angle degrees
Engine standard cam lobe designs:
- Four levels of cam lifts
- Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams

EUS-2000 Controller

LCD Display

TP-2000 Modual for Cummins ISX EUI testing

New Option. Cummins ISX EUI metering and timing control module kits, including
- Cummins HPI-TP electronic control module
- TP-2000 Hydraulic Module
