Rock Breaker HB20G 30 40
US$ 1 - 24,500
/ Unit
1 Unit(Min. Order)
- Qingdao Port
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | EDT | |
| Model Number | EDT3000 |
Product Description
| rock breaker | Model | EDT3000 |
| Specification | Unit | |
| Body weight | kg | 1106 |
| lbs | 2438 | |
| Total weight | kg | 2540 |
| lbs | 5599 | |
| Length | mm | 3020 |
| inch | 118 | |
| Width | mm | 640 |
| inch | 25.2 | |
| Hydraulic oil pressure | kg/cm2 | 160-180 |
| psi | 2272-2556 | |
| bar | 157-180 | |
| Hydraulic oil flow | l/min | 150-190 |
| gal/min | 39.6-50.2 | |
| Impact frequency | bpm | 300-450 |
| Hose diameter | mm | 31.75 |
| inch | 1.25 | |
| Chisel diameter | mm | 150 |
| inch | 5.91 | |
| Chisel weight | kg | 160 |
| lbs | 352 | |
| Applicable bucket capacity | m3 | 0.9-1.2 |
| yard3 | 0.69-0.92 | |
| Applicable vehicle weight | ton | 27-35 |
| lbs | 59542-77161 | |
| Impact power | ft-lbs | 5163 |
| Joule | 7000 | |
| Main valve type | Outward | |
| Accumulator | Yes | |
| Accumulator pressure | kg/cm2 | 60±0.5 |
| Nitrogen pressure | kg/cm2 | 6±0.5 |

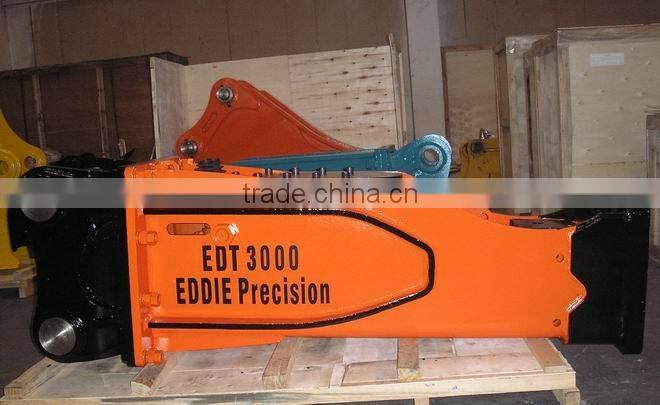

EDT breaker is of optimized design, powerful impact, long reliability, and reliability. easy maintenance and low price rock breaker. EDT3000 is for 27-35ton excavator.
