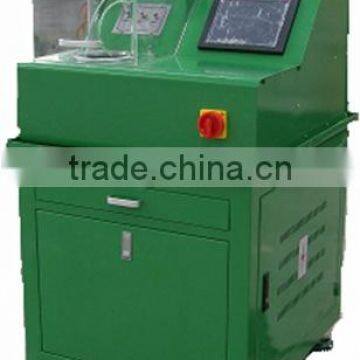

Common Rail Injector test bench

Specifications

Complete test bench to perform automatic test for a common rail injector with either solenoid or piezo technologies.
Features
*Using a Bosch CP3.3 common rail pump to generate high pressure up to 1600bar
*Using a Bosch fuel rail with DRV and pressure sensor
*Measuring fuel delivery and fuel return of a common rail injector using a gear flow meter made in Germany
*The injection pressure is regulated by variation of pump speed, pump load and DRV duty to ensure the stability of fuel rail pressure and a long-time continuous operation without over heat on fuel tank with minimized system heat rejection.
*10’ touch color screen
*User friendly interface
*Build-in automatic test procedures
*Build-in database over 400 injectors made by Bosch, Delphi, Denso and Siemens
*System upgradeable. One year free system upgrade.
Specification
*Injection pressure: 0-1600bar
*Pressure stability: ±10bar
*Test oil type: ISO4113 or equivalent
*Two levels of test oil filtration
**Course filter 10µm
**Fine filter 3µm
*Controller
**Modular design for easy service and system expansion
**Simulate engine ECU signals to drive either a solenoid or a piezoelectric actuator in a common rail injector
***Adjustable injection frequency, 0-4000inj/min
***Adjustable injection pulse width or injection duration, 0-6ms
**Automatic testing procedures
*Fuel flow measurement
**By a gear meter made in Germany
**Accuracy: ±1%
*Main motor Power: 5.5KW
*AC Power supply: 3-phase, 380/220VAC, 50/60Hz
*Rich accessories
