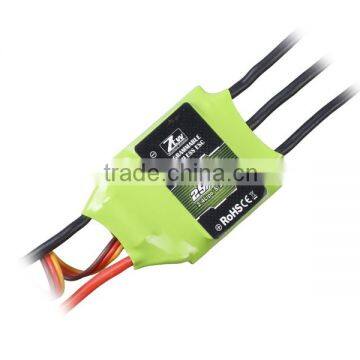

ZTW Mantis 25A BEC 2-4S Lipo 5V 2A BEC Brushless ESC Mini Speed Controller

ZTW Mantis 25A BEC 2-4S Lipo 5V 2A BEC Brushless ESC Mini Speed Controller

Overview

ZTW Mantis series ESC is a medium level product line designed for fixed wing and Helis. This product line cover wide range of product to meet various customer needs from 6A to 155A including OPTO HV version.It’s performance and stability have been approved by distributors and pilots around the world. It features compact size, light weight, fashion design, super smooth start up and throttle linearity, multiple protection, governor, strong BEC output etc. All these feature make this product line a perfect intermediate level for the park, sports, aerobatic pilots.

Features:

1. Supports high RPM motors,can be used with most of the motors in the rc market .
2. Secondary sub-menu setting ,is easier to be programmed .
3. Advanced Governor Mode ( has the B-Series ESC to keep the motor speed even though the load is changed)
4. More optional motor timing Setup and soft acceleration start ups ( make the motors run smoothly)
5. Super smooth and accurate throttle linearity
6. Power arming protection (prevents the motor from accidentally running when switched ON)
7. Auto throttle shut down in signal lose situation
8. Safety thermal over-load protection, when the temperature of ESC exceeds 110 deg C,the ESC will reduce the output power to allow it to cool.
9. Use new generation of the MOSFET to ensure ESC's heating low,supporting biggest Peak current and higher reliability .
10. 3.1 New Advanced programming software

Specifications:

Continuous Output: 25A
Burst Output: 35A
Battery: 5-14NC/2-4S Lipo
Length: 28mm
Width:  29mm
Height: 9mm
Weight: 19g


Package list:
1 * Original Mantis 25A BEC 5V 2A

Product Show:

Packing:

Certificate:
