Hydroponics Silent Flexible Inline Duct Fan
- Xiamen
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Duct Fan | Place of Origin | Fujian, China | |
| Brand Name | Orientrise | Model Number | ORBF | |
| Power | 190W | Voltage | 120~230V | |
| Air Volume | 240-480 ㎡/h | Speed | 2600-2900 | |
| Certification | Other | After-sales Service Provided | Overseas third-party support available |
Product Description

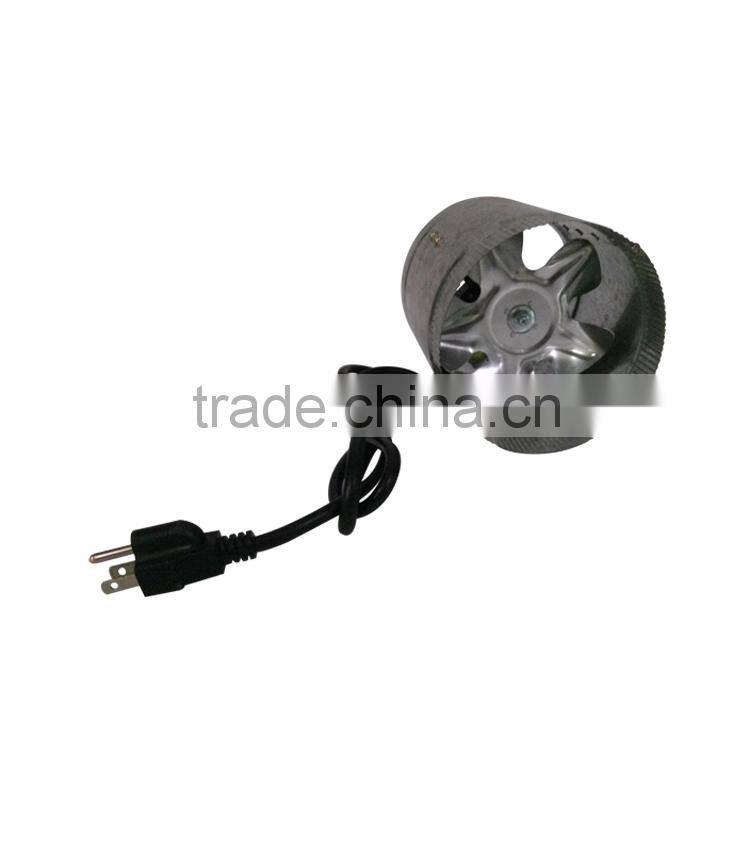

Hydroponics Silent Flexible Inline Duct Fan
1.Description
Inline fan is used in the growing room to exchange stale air with fresh air to keep temperature and humidity under control and cool your reflector.
The fan is suitable for operation at any angle and delivery exceptional airflow performances against the high static pressure.
The inline duct fan features high power motor and aerodynamically designed shape. It is able to move air through long stretches of ducting, grow light reflector or carbon filters.
Consist of housing, impeller, motor, bracket and connection box, the brief design making it easy to use. It is quick to install and uninstall, and the impeller and the motor are combined to a whole with small volume and litter install space, mini size, reliable performance, high efficiency and long life.
In order get the longest life, the fan should keep running continuously.
2. Main Features
1.Drive by external rotor motor, powder coated in black
2.Impact resistant
3.Thermal protector AC motor
4.Plastic & galvanized steel impeller
5.Aerodynamic design allows more air flow
6.Sheet steel housing, powder coated in black/gray/silver
7.UL recognized components
8. Mounting bracket included
9.Vibration free operation
10.Permanently lubricated bearings
11.Sound dampening cover
12.Easy installation
13.Engineered for maximum boost with minimum noise
14.Efficient &economical
15.Blade material is polycarbonate
3.Size Available
| Item No. | Air Vent Size | Air Flow/CFM | Speed/RPM |
| ORIF100 | Φ100mm/4'' | 150 | 2600 |
| ORIF125 | Φ125mm/5'' | 195 | 2600 |
| ORIF150 | Φ150mm/6'' | 265 | 2510 |
| ORIF160 | Φ160mm/6.5'' | 285 | 2520 |
| ORIF200 | Φ200mm/8'' | 470 | 2520 |
| ORIF250 | Φ250mm/10'' | 650 | 2540 |
| ORIF315 | Φ315mm/12'' | 950 | 2540 |
| ORBF4 | Φ100mm/4'' | 100 | 2800 |
| ORBF6 | Φ150mm/6'' | 240 | 2900 |
| ORBF8 | Φ200mm/8'' | 420 | 2900 |
4.Packaging and Shipping
| Item No. | QTY/CTN (pcs) | CTN GW (kg) | CTN NW (kg) | CTN(L) | CTN(W) | CTN(H) |
| ORIF100 | 1 | 4 | 3.5 | 31cm | 26cm | 24cm |
| ORIF125 | 1 | 4.3 | 3.7 | 31cm | 26cm | 24cm |
| ORIF150 | 1 | 5.1 | 4.6 | 36cm | 36cm | 25cm |
| ORIF160 | 1 | 5.3 | 4.7 | 36cm | 36cm | 25cm |
| ORIF200 | 1 | 6.9 | 6.3 | 47cm | 37cm | 29cm |
| ORIF250 | 1 | 7.2 | 6.7 | 47cm | 37cm | 29cm |
| ORIF315 | 1 | 8.4 | 7.9 | 49cm | 44cm | 29cm |
| ORBF4 | 20 | 19 | 17 | 65cm | 25cm | 42cm |
| ORBF6 | 20 | 30 | 28 | 88cm | 36cm | 42cm |
| ORBF8 | 12 | 25 | 23 | 75cm | 45cm | 42cm |
| Trade Term | EXW,FOB,CIF,CFR |
| Payment Term | L/C, T/T, Western Union, Paypal |
| Lead Time | 3 to 4 weeks after well received the deposit |
| Shipping Choices | DHL, Air Shipping or Sea Shipping |
5. What can I do for you?
1.Design for products and custom tailor
2.One-Stop-Purchase service
3.Whole course of quality control
4.Timely arrange for delivery
5.Unobstructed communion
6. Brief Introduction of Our Company

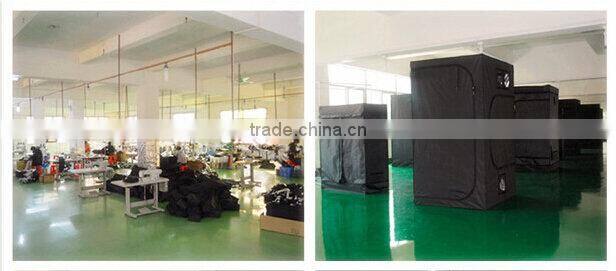

Our company was originally set up since 2005, along with the rapid development of e-business. Then, we built up our own manufacturing plant in 2009. After the establishment of our Sales Department in 2010, the departments of Research and Development (R&D) and Quality Control (QC) have also been established.
Now, we are a professional manufacturer and exporter of gardening equipment in China. We have three subsidiary factories.Our company specializes in different fields including grow lights, grow tents, grow pots, carbon filters, bubble bags, etc. We have three subsidiary factories. Our products have been exported all over the world, including the USA, Canada, Germany, the UK, Spain, Italy, South Africa, France, etc.

7.Questions
1.Can I receive a discount on a bulk purchase?
Our prices for bulk orders are highly competitive because we are the key supplier. All you need is to inform us the product name and quantity (must be more than our MOQ). We will offer you our best price ASAP.
2.What's your main products?
Grow tent, Dry net, bubble bag, lighting reflector, carbon filter.
3.Is sample available?
Yes, we can supply samples for reference.
4.Can you accept OEM or ODM?
Yes, of course. Logo is also acceptable.
5.Why choose us?
We hold the production principle of "we should be responsible for our customers, for the quality of our products and for our shareholders, that is, for every staff member".
6.I couldn’t find the right model from the products list, is custom size available?
We can produce as your demands.
7.How to deal with if the products have quality problems?
You can contact us freely if any questions and we’ll try our best to satisfy you.
