Home > Products > Spare Parts > High Speed Nylon Zipper Sewing Machine/quilting Machine/stitching Machine
High Speed Nylon Zipper Sewing Machine/quilting Machine/stitching Machine
US$ 3,500 - 4,000
/ Set
1 Set(Min. Order)
- shenzhen
- T/T Money Gram
You May Like
-
5# Colorful Plastic Painting Zipper Slider Puller
-
Industry Nylon Zipper Sewing Machine Part
-
T6-30 Needle Plate(small)2#-10#, Industry Nylon Zipper Sewing Machine Part
-
Lower Main Shaft Driving Mechanism, Industry Nylon Zipper Sewing Machine Part
-
ZT-B7 Adjusting Screw, Industry Nylon Zipper Coiling Machine Parts
-
Needle Thread Breaking Sensor C.Set, Industry Sewing Machine Part
Product Details
| Condition | New | Type | Industrial Sewing Machine | |
| Place of Origin | Guangdong, China | Brand Name | HKT | |
| Model Number | HKT0302 | Stitch Formation | Chain Stitch | |
| Mechanical Configuration | Flat-Bed | Max. Sewing Speed | optional | |
| Max. Sewing Thickness | optional | Stitch Length | optional | |
| Power | 1.5KW | Overall Dimensions | 150cm*60cm*200cm | |
| Feed Mechanism | Needle Feed | Certification | CE/ISO9001/SONCAP | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

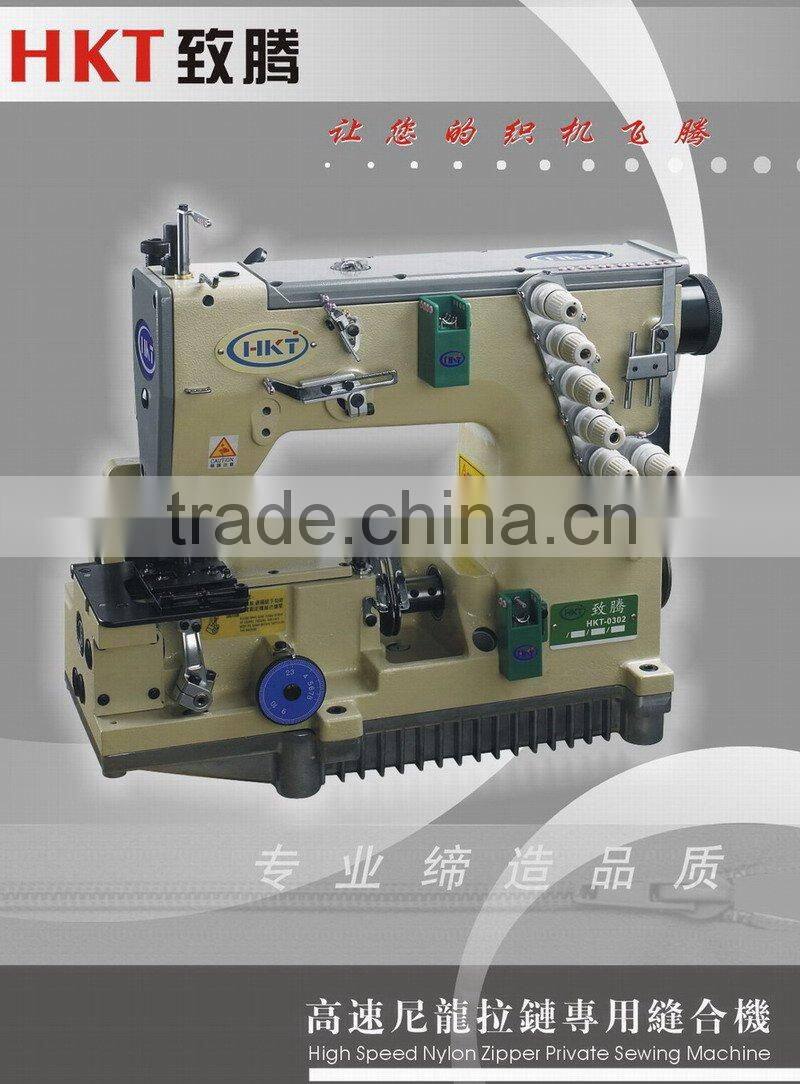

High speed nylon zipper sewing machine/quilting machine
Specification:
Average yield: 3000rpm
Impetus: 2hp
Phases: 3
Voltage: 380V
Complete appliance length: 150cm
Complete appliance width: 55cm
Complete appliance height: 200cm
Single-head packing measurement: 57*38*52cm
Net weight (two):160kg Gross weight (two):240kg
Capacity yards/hour
Specification | Production(yards/hour) |
#3 | 200-220 YDS/HR |
#4 | 230-250 YDS/HR |
#5 | 260-280 YDS/HR |
#6 | 280-300 YDS/HR |
#8 | 270-290 YDS/HR |
#10 | 240-260 YDS/HR |
Features:
- The Special Two-in-One Puller and Press Foot lefter which can leave the puller alone or left all of them together to save the time.
- The Looper Shaft move in ellipse to decrease needle burning. The adjustable needle. The adjustable looper holder makes the threading easy.
- The looper thread take-up can make it up and down for threading easy.
- Adjustable micro stitch length dial, it can adjust to follow the zipper different pitch when the machine operation.

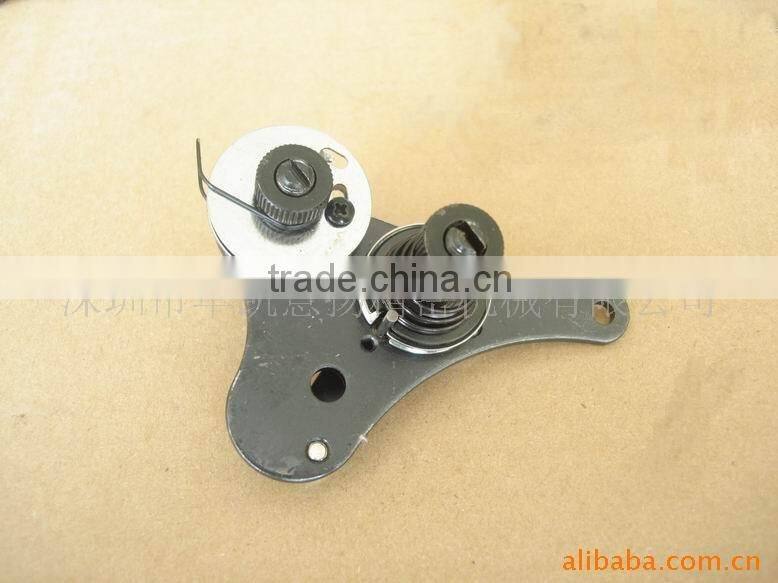

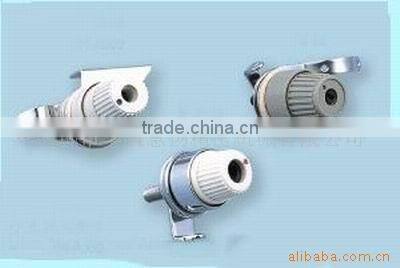

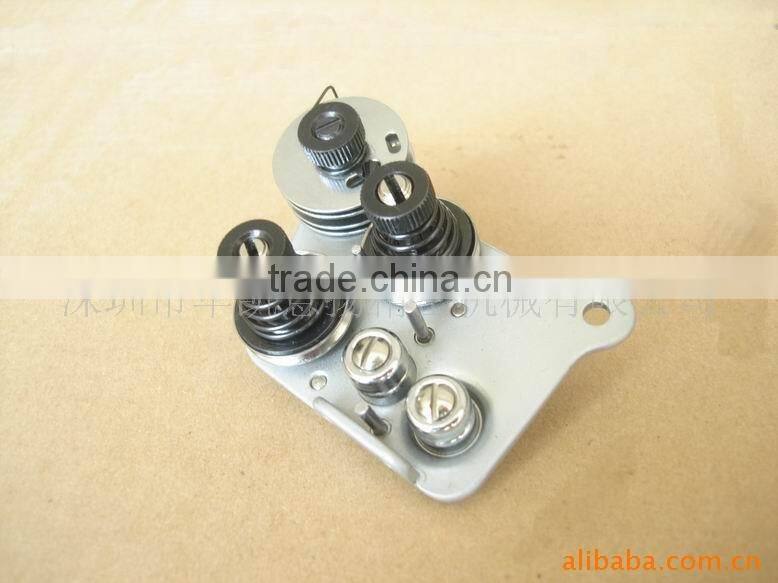

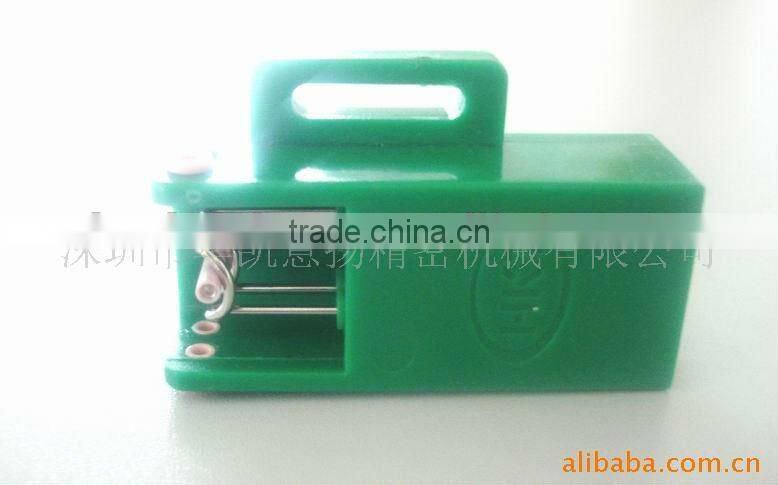

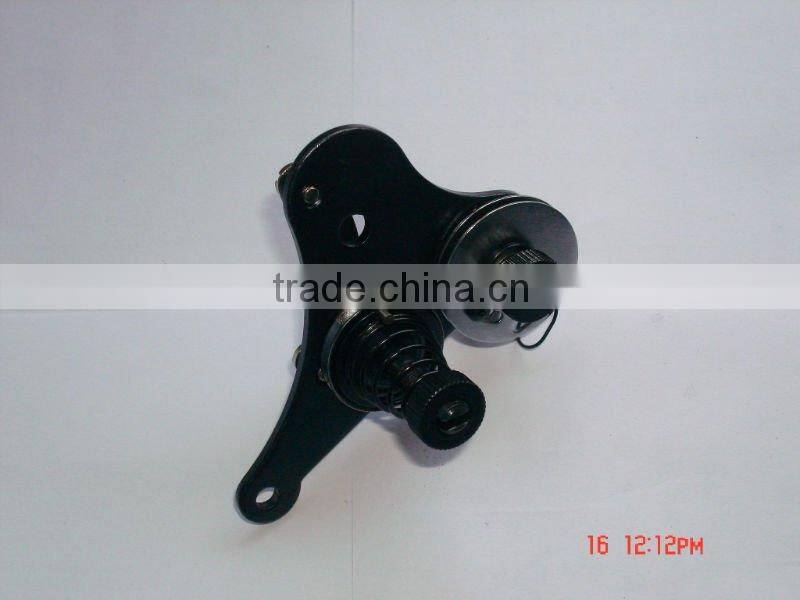

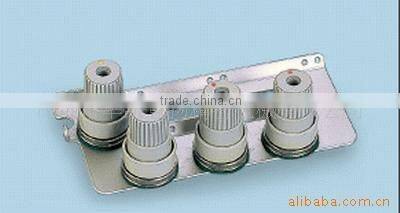

Zipper machinery pictures:
Textile macinery spare parts OEM service available
* Design Service Offered
* Buyer Label Offered
•CNC processing center
•Dewaxing process
•Stamping
•Wire cut Electrical Discharge Machining
•Milling machine
•Grinding machine
•etc.
Related spare parts:
