Cooking oil filling machine
- 10 Set / Sets per Month
- shanghai port for Cooking oil filling machine
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage, Other, Beverage, Machinery & Hardware, food | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 2KW | |
| Place of Origin | Jiangsu, China | Brand Name | jinri | |
| Model Number | GU | Dimension(L*W*H) | 1800*1000*1500mm | |
| Weight | 300kg | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

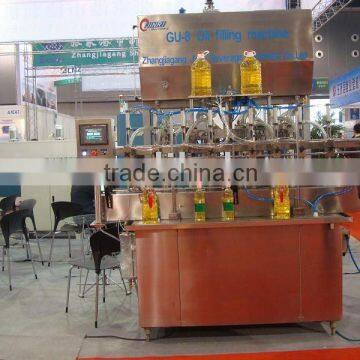

Cooking Oil Filling Machine
The advanced antileakage device ensures no oil leakage occurs in filling process, so it is economical and save oil source, and keep filling area and conveyor clean.
Delivery is stepping, primary delivery adopts variable frequency control which has higher efficiency. The following process (stamping, ink-jet printing, light-check and case sealing, etc) adopts special double dislocation connection, which makes sure the whole production line more accurate and smooth.
High and low double speed filling avoids overflow and increase the production efficiency.
The control system has intelligent protection function. When there is any problem, bell alarms and machine stops work. The problem is shown on PLC screen.
Filling volume is adjustable. When changing for another filling volume, only need write the pointed filling volumes into PLC control, so the change is easy and simple.
Optional devices:
Automatic bottle unscramblering and feeding device, automatic continuous capping machine, screw cap machine and pressing cap machine, leakage detecting machine, aluminum foil sealing machine, ink-jet printing machine, automatic unpacking machine, packing machine and pack - sealing machine, etc.
Specifications:
Model | Unit | Gu8004R-1 | Gu8004R-5 |
number | set | 4 | 4 |
Filling volume | ml | 250-1000 | 2000-5000 |
Production capacity | b/h | 850-1080 | 720-900 |
Filling precision | % | less than 0.5% | |
Power source | V | three-phase four-wire AC220V 380V ±10% | |
Consumed power | KW | 1.0 | |
Gas source pressure | Mpa | 0.55-0.8MPa | |
Air consumption | m3/min | 0.8 | |
