Beer Machine Rinser Filler Capper 32-32-10 Monobloc

FOB Price

US$ 15,000 - 200,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	JINRI
Model Number	BGF beer filling machine

Beer bottling machine

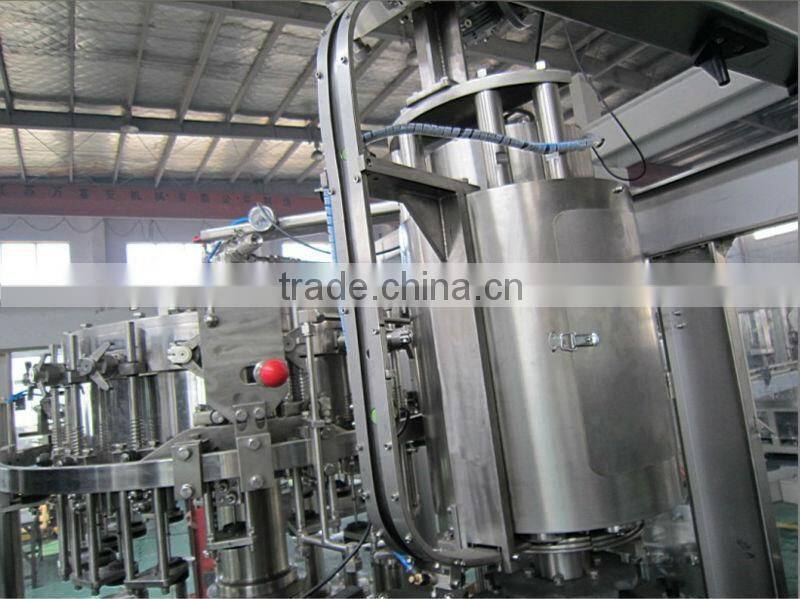

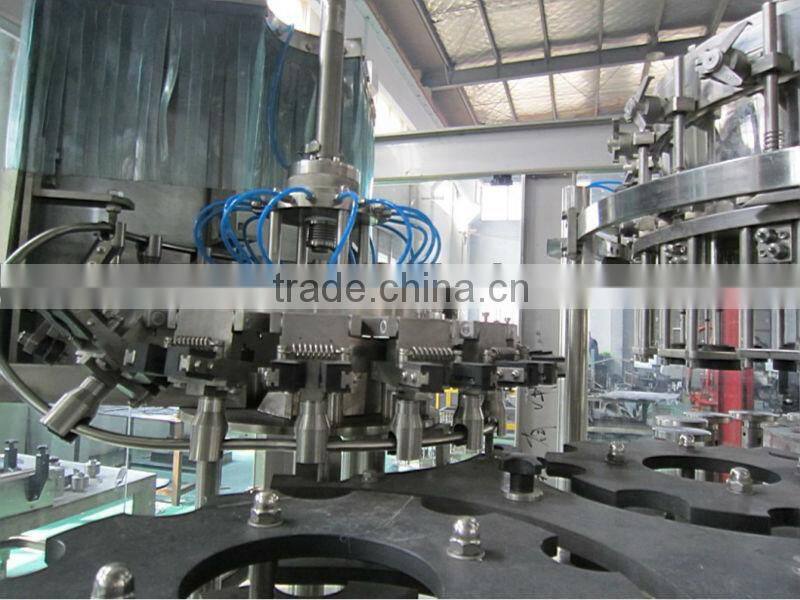

---Product Images

1.Washing part

2.Filling part

3.Capping parts

---Product Main Technical Data

Model	BGF14124	BGF18186	BGF24248	BGF323210	BGF404012	BGF505012	BGF606015	BGF808020
Number of washing, filling and capping heads	14-12-4	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(500ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	15000

WELCOME TO JINRI BEVERAG MACHINERY!

---Factory

---Certification

---Working

---Customers

---Delivery

For any further information about this machine,please contact us without hesitation,we will reply to you asap.Thank you and welcome to JINRI .
