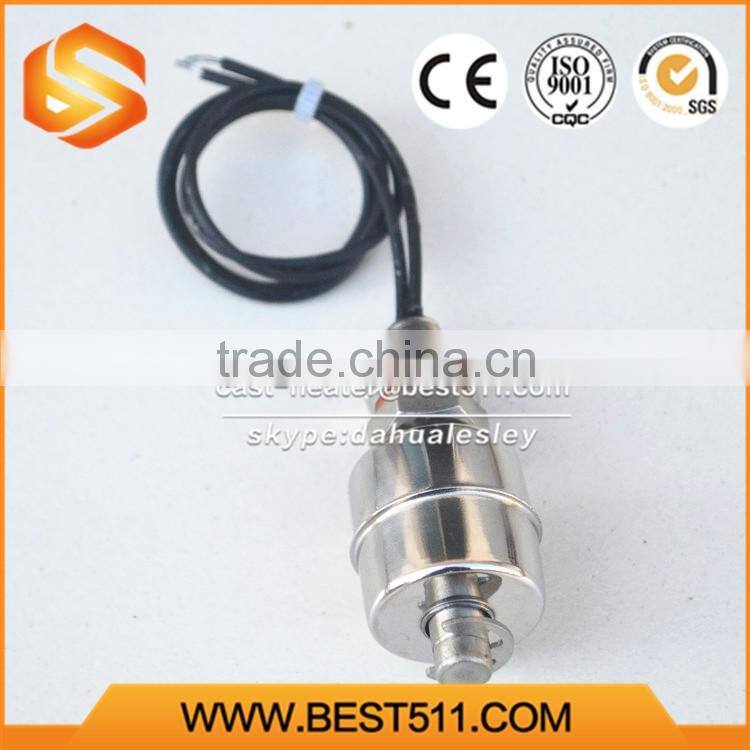

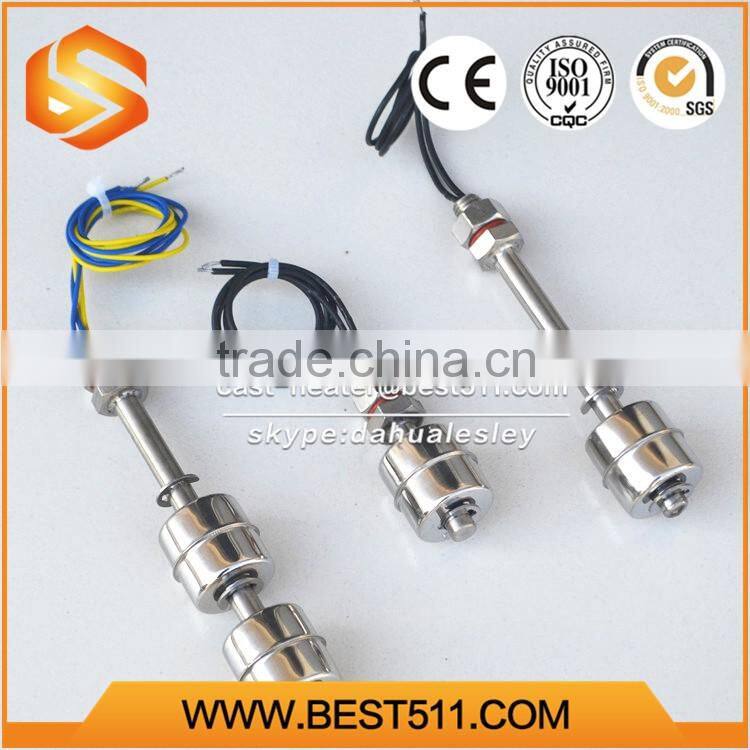

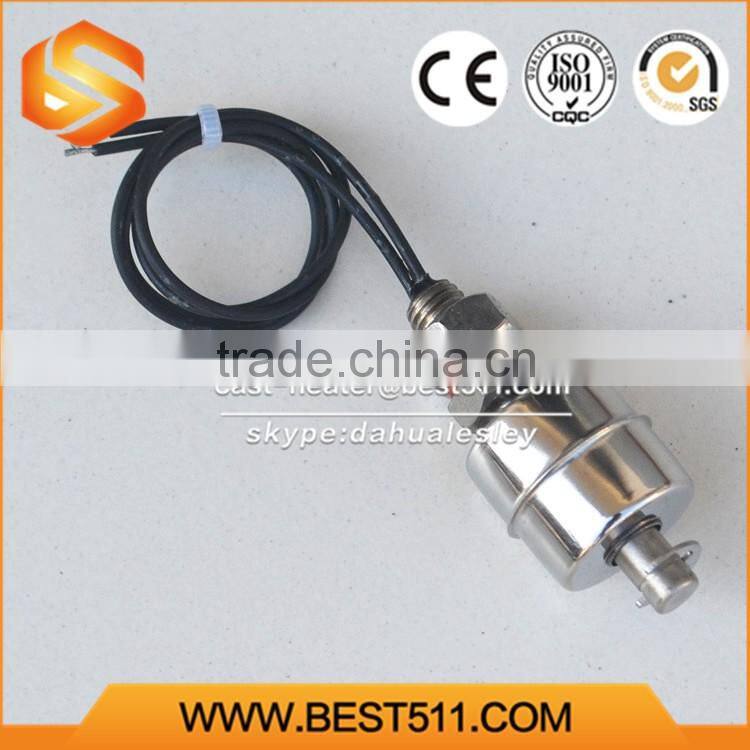

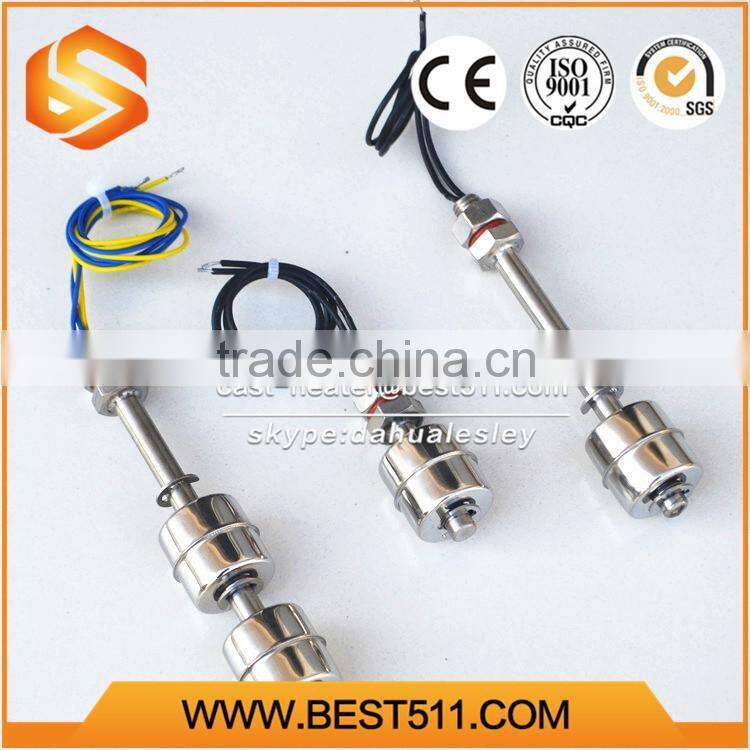

Vertical Mounted Water Float Sensor

FOB Price

US$ 5 - 50 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	BEST
Model Number	CX-ULM, CX-FLM-FYK

What is the introduction of level switches?

1.Muti-point small float level switch (direct mounted with double points and double float)

2.Simple structure , conveniently usage’s level control parts

3.It can control the level for hot water inside the appliance or mechanical equipment or sealed container

What 's the main parameters of float level switches?

Installation	Side-mounted / Top or bottom-mounted (vertical +/-20 ℃)
Installation screw	M10,can customize inG1/8”
Electric connection	300mm, UL1430 AWG22
Bar material	SUS304/316
Float material	SUS304/316
Working pressure	6 Bar
Working temperature	-10~70℃
Accuracy	+/-2mm (in the water)
Repeatability	+/-1mm (in the water)
Switch type	N.C./N.O
Work voltage	250VAC,200VDC, 220VAC
Work current	0.5A/0.7A
Switch power	70VA
Durability	100000times
Float dimension	Dia.28 * dia.9.50*28
