Product Details
| Condition | New | Type | Immersion Heater | |
| Power Source | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | BEST | Model Number | general | |
| Dimension(L*W*H) | as your requests | Weight | weight after production | |
| Voltage | 380V,240V, 220V,110V,36V,24V or 12V | Power(W) | 50W-1200w,can also be customized | |
| Certification | CE,ISO9001,UL,ROHS | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

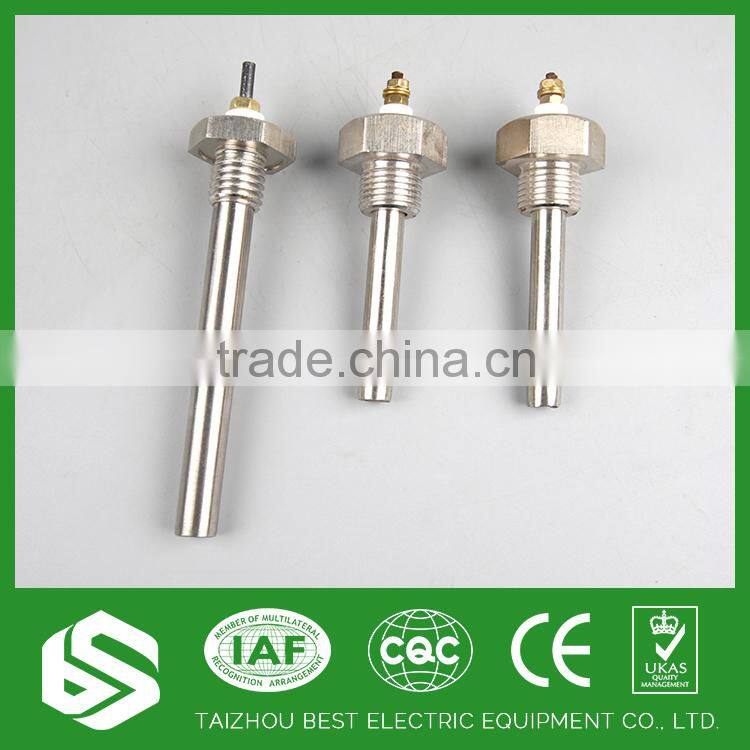

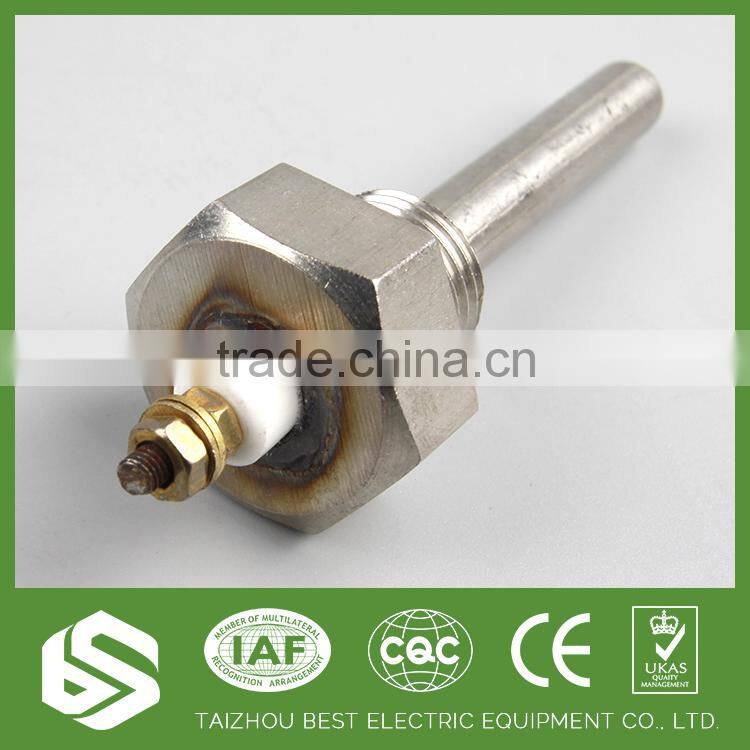

Tube for 220v cartridge heater heating element in screw type
1.Introduction of Cartridge Heater Element
Cartridge Heating Element is a piece of equipment made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens and so forth.
2.Recommended for temperatures up to 750°C
All high temperature resistance cartridge heater are available with a built in Thermocouple Type J or K
Sheath Material | SUS 304/316/ Incoloy 840 |
Spirals | Nickel - Chrome |
Insulation | Magnesium Oxide Powder |
Voltage Supply | 12V to a maximum of 480V |
Maximum Temperature | 750 °C |
Resistance Tolerance | +10% - 5% |
Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
3.Specification Requirements For Ordering
There are many leads options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.
4.When Ordering high temperature resistance cartridge heater , please specify the following information :
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Tube diameter of cartridge heater.
3.Overlength of catridge heater.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
5.Options uses for high temperature resistance cartridge heater .
1.Plastic Processing
2.Packaging Machinery
3.Injection and Blowing Moulding
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots
| |
|
