Inverted Bottle Sterilizing Machine
- shanghai port for Inverted bottle sterilizing machine
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | JINRI | Model Number | SRD | |
| Usage | Diary Product | Type | Autoclave | |
| Voltage | 380V | Power(W) | 1.5kw | |
| Weight | 500kg | Dimension(L*W*H) | 7350*731*1120mm | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Inverted bottle sterilizing machine
Inverted bottle sterilizing machine
Inverted bottle sterilizing machine could overturn bottles(sterilizer glass bottle or PET bottle), which have been filled and sealed, to sterilize inside of bottle mouth and caps by high temperature drink in bottle.bottle sterilizer machine,bottle overturn sterilizer

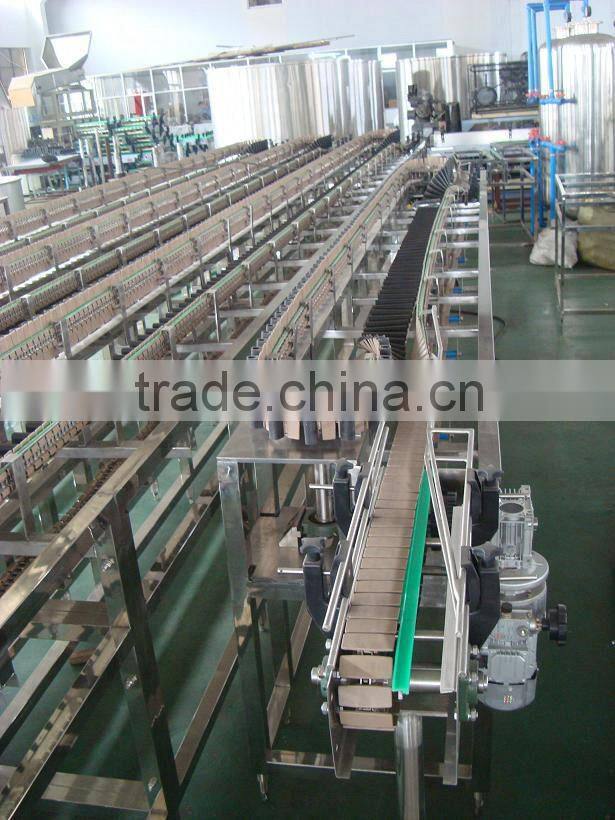

Chain conveyor overturns finished bottles from upright to horizon when sterilizing cap and bottle mouth. And the conveyor transfers bottles into cooling tunnel.
Top grade of conveying chain is used on the machine, more stable and reliable when it is working, no breaking bottles. Speed of conveying system is infinitely variable
Inverted bottle sterilizing machine
1.sterilizer the glass bottle /PET bottle beverage 2.minimum output:4000b/h
| model | SRD-100 | SRD-200 | SRD-300 |
| Capacity | 4000-6000b/h | 8000-12000B/H | 12000-18000B/H |
| Application range | Plastic bottle , glass bottle | ||
| Sterilizing times | 12-40s | ||
| Chain speed | 4.5-25m/min | ||
| motor power | 1.5kw | ||
| outer dimension | 7350*731*1120mm | 8350*731*1120mm | 10350*731*1120mm |
