Home > Products > Servo motor and drive > AC Servo Motor Drive 380V EMM-130 series 15N.m 2000RPM 3.1kW

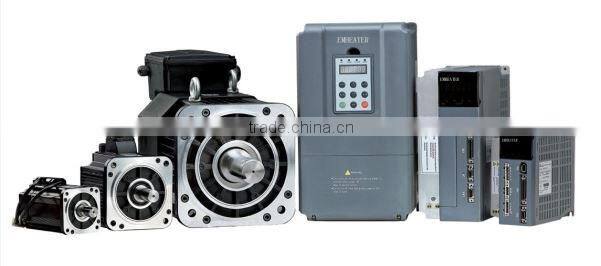

AC Servo Motor Drive 380V EMM-130 series 15N.m 2000RPM 3.1kW

FOB Price

USD $385 - $1,350 / Set

1 Set(Min.Order)

Supply Ability 500000 Set / Sets per Month
Port Shenzhen/Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	EMHEATER
Model Number	EMA/EMB	Output Power	Other, 0.2kw-7.5kw
Output Type	Triple	Size	As per product
Weight	As per product	Input Voltage	200V-240V/360V-440V
Output Voltage	200V-240V/360V-440V	Type	DC/AC Inverters
Output Frequency	0-rated frequency	Output Current	1.5A-22A

Product Description

Company Information

Product Description

EM Series Servo System Introduction

Servo Drive Feature:

1. Power Voltage: single phase AC 220V±15% / 3 phase AC 220V±15%.

2. Control Model: Position, speed, torque, speed trial run, and JOG trial run.

3. Built-in regenerative brake.

4. Optional incremental encoder, wire-saving encoder, absolute encoder and resolver.

5. Speed frequency response over 400Hz.

6. Speed fluctuation is less than 0.03% of rated speed.

7. Speed control ratio 1:5000.

8. Input pulse frequency: 0~500 KHz.

9. Applicable for servo motor with less than 5 times moment of inertia.

10. Strong protection function, abundant control models and higher performance.

Servo Motor Feature:

1. The max torque is up to 300% of rated torque.

2. The max current is up to 300% of rated current.

3. The max speed is up to 4500rpm.

4. Be used to drive the feed shaft of various machineries.

5. Various models (200W~22KW, with brake etc).

6. Standard mounted wire-saving encoder 2500rpm, optional absolute encoder 131072rpm or resolver.

7. Standard protection configuration is IP65.

8. The malfunction ratio is less than 0.01%within 18 months warranty.

Servo motor and servo drive model selection:

Servo Drive	Servo Motor							G.W
Model	Model	Series	Torque(N.m)	Speed(rpm)	Max(rpm)	Power(KW)	Current(A)	(KG)
EMA-05A	EMM-60S006A	60	0.64	3000	4500	0.2	1.5	4.0
EMA-05A	EMM-60S013A	60	1.27	3000	4500	0.4	2.5	4.0
EMA-08A	EMM-80S016A	80	1.6	3000	4500	0.5	3	4.5
EMA-08A	EMM-80S024A		2.4	3000	4500	0.75	4	5.5
EMA-10A	EMM-80S032A		3.2	3000	4500	1.0	5.2	6.3
EMB-15A	EMM-110S040B	110	4.0	2500	3200	1.0	4.0	9.8
EMB-15A	EMM-110S060B	110	6.0	2500	3200	1.57	6.0	10.3
EMB-15A	EMM-130S040B	130	4.0	2500	3200	1.0	4.2	10.8
EMB-15A	EMM-130S050B		5.0	2500	3200	1.3	5.0	10.8
EMB-15A	EMM-130S060B		6.0	2500	3200	1.57	6.2	12.8
EMA-10A	EMM-130S060E		6.0	1000	1500	0.63	3.6	12.2
EMB-15A	EMM-130S075B		7.5	2500	3200	1.96	7.8	14.2
EMB-25A	EMM-130S075C		7.5	2000	2500	1.57	6.5	14.6
EMA-10A	EMM-130S075E		7.5	1000	1500	0.79	4.5	13.8
EMB-30A	EMM-130S100B		10	2500	3200	2.6	10.5	16.5
EMB-30A	EMM-130S100C		10	2000	2500	2.1	9.0	16.5
EMB-25A	EMM-130S100D		10	1500	2000	1.57	6.5	16.2
EMA-10A	EMM-130S100E		10	1000	1500	1.0	5.0	16.6
EMB-30A	EMM-130S150C		15	2000	2500	3.1	11.5	19.5
EMB-30A	EMM-130S150D		15	1500	2000	2.35	9.0	19.5

Remark:

1. Free match 3.5 meters power cable and encoder cable.

2. Adding braking should specially mention.
