Home > Products > Diesel generator > 5kva Silent Type/Open Type Diesel Generator Set
5kva Silent Type/Open Type Diesel Generator Set
- Fuzhou China
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | BAIHUA FMW | |
| Model Number | GF | Output Type | AC Three Phase | |
| Speed | 1500/1800 | Frequency | 50/60HZ | |
| Rated Power | 5KW | Rated Voltage | 400/230V | |
| Rated Current | 9A |
Product Description
Super Silent Diesel Generator Sets
1.FEATURES AND ADDITIONAL EQUIPMENTS:
1. Noise LEVEL 65dB-85Db(A)(7M)
2.Particular stainless steel,high noise-absorbing,sponge,alloy material, times’ epoxy painting,easy maintenance.
3.Automatic starting control panel,time relay,indicator testing button,alarm restring button,over speed inductive switch,alarm buzzer of low-voltage of battery,starting malfunction alarm.
4.Automatic changing-over panel. When the electric supply has been stopped, the gen-sets will start automatically; When the electric supply has been remended, the gen-sets will halt automatically.
5.Automatic diesel generator sets with intelligence performance.
6.Trailer movable power station.
2.BRIEF INTRODUCTION
Kangbai GF3 Series soundproof super silent generator sets consists of well-known diesel engines such as Shanghai/Pakai, Weichai, Yangdong, Volvo, Deutz, Cummins, Perkins, Isuzu etc. And Hi-Tech TFS or TFW2 series alternators with Stamford and Leroy Somer immitation Design. By absorbing various of silent generator sets technologies from all over the world such as Germany and Japan, Kangbai silent are blessed with advanced design, compact construction, low noise level and easy maintenance ect., therefore, Kangbai super silent generator sets are being applied widely in many area such as the telecom, banks, mansions and airports where noise pollution are highly prohibited.
3.MAIN TECHNICAL PARAMETER OF SILENT DIESEL GENERATOR SETS AS FOLLOW:
| 5KW Diesel Generator Set Technical Data | ||
| Silent Type (Single Phase) | ||
| MODEL | GF-5KW | |
| Rated voltage (V) | 110;220;230; 110/220 | 120;240;120/240 |
| Rated frequency (Hz) | 50 | 60 |
| Max. power (KW) | 5 | 5.5 |
| Rated power (KW) | 4.5 | 5 |
| DC output (V/A) | 12/8.3 | |
| Power factor (cos) | 1 | |
| Excitation system | Transistorized self-excitation Constant voltage (AVR) | |
| Engine model | KB186FAE | |
| Type | Singe-cylinder, verticalz, 4-stroke,air-cooled, direct-injection | |
| Displacement (cc) | 418 | |
| Rated output (Hp/rpm) | 8.6/3600 | |
| Starting system | 12V electric starter | |
| Fuel tank capacity (L) | 15 | |
| Lube-oil capacity (L) | 1.65 | |
| Dimension (L*W*H)(mm) | 930*540*710 | |
| Net weight (kg) | 190 | |
| Unit Price FOB Fuzhou (USD) | 570 | |
| Open type (Single Phase) | ||
| MODEL | GF-5KW | |
| Rated voltage (V) | 400/230 | 416/240 |
| Rated freqyency (Hz) | 50 | 60 |
| Max. power(KW) | 5.5 | 6.5 |
| Rated power(KW) | 5 | 6 |
| DC output (V/A) | 12/8.3 | |
| Power factor (cos) | 0.8 | |
| Phase | single | |
| Excitation system | Transistorized self-exciation constant voltage(AVR) | |
| Engine model | KB 186FAE | |
| Type | Single-cylinder,direct-injection | |
| 4-stroke, air-cooled, direct-injection | ||
| Displacement (cc) | 418 | |
| Rated output (Hp/rpm) | 8.6/3600 | |
| Starting system | 12V electric starter | |
| Fuel tank caoacity (L) | 15 | |
| Lube-oil capacity (L) | 1.65 | |
| Dimension (L*W*H) (mm) | 730*490*610 | |
| Net weight (electric) (kg) | 105 | |
| Unit Price FOB Fuzhou (USD) | 470 | |
4.ABOUT KANGBAI AND CERTIFICATION :
Organized by ISO9001:2008 management system and inspected by Entry-Exit Inspection and Quarantine Bureau. We have passed and work in full compliance with CE, UL.EPA. The following picture of CE certification is for your reference. For more certificates information, please log to Certificates.
5.MAIN MARKET:
Our generator has been exported to South America, Europe, the Middle East, and Africa with supreme quality and after-service by amount about 10 million dollars last year. Especially Bangladesh and Philippines.
6.WARRANTIES:
Guarantee For One Year Or 1200 Hours (According To Whichever Reaches First)From Ex-Factor During The Guarantee Period, We Will Offer Free-Of-Charge Spares In Case There Is Any Damage Caused By Defects Of Our Goods. We Also Supply Charge Spares After Guarantee Period Or Damage Created By End Customers.
6.PAYMENT TERM:
A: Irrevocable L/C At Sight
B: T/T (30 Percent In Advance And 70 Percent Before Shipment)
C: D/P at Sight (Only For Specified Customers)

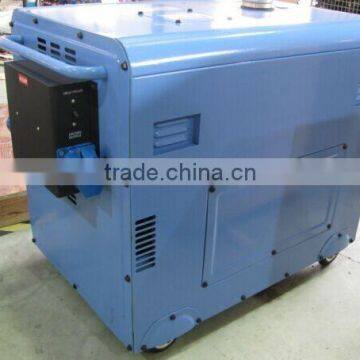

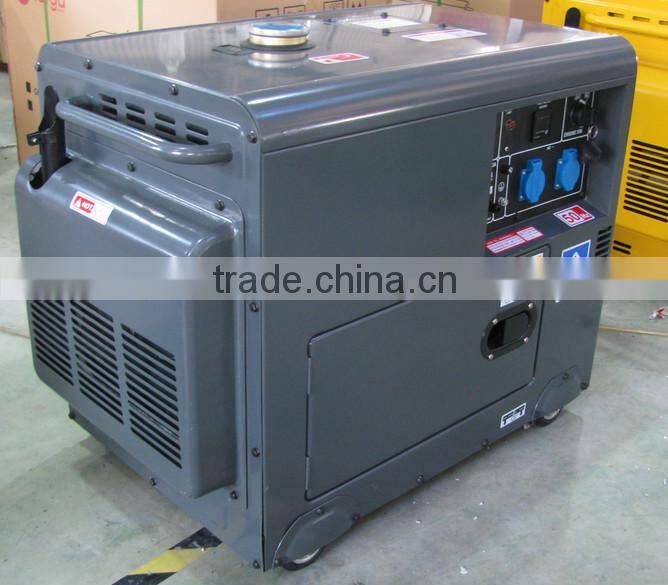

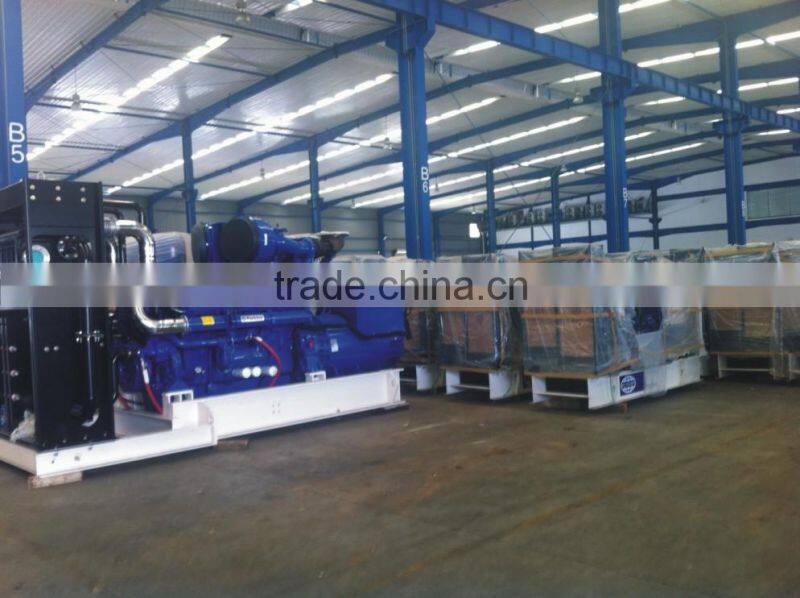

7. FOLLOWING PICTURE FOR YOUR REFERENCE:
