Home > Products > Silent type generator set > High quality low rpm generator super silent outdoor and indoor soundproof genset 80kw 100kva by shanghai engine

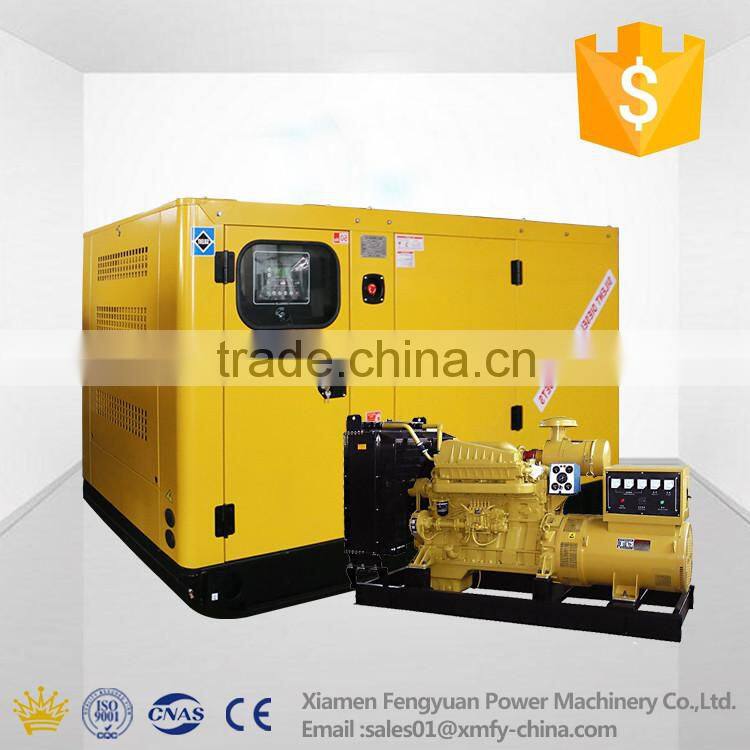

High quality low rpm generator super silent outdoor and indoor soundproof genset 80kw 100kva by shanghai engine
USD $6,000 - $6,300
/ Set
3 Sets(Min.Order)
- 500 Set / Sets per Month
- Fuzhou
- T/T L/C D/P D/A Credit Card
You May Like
-
AC three phase output slow speed diesel engine 100kw 125kva silent type genset
-
High quality 62.5kva 50kw low rpm generator Shangchai diesel power plant
-
Direct factory sale sound proof 200kw 250kva diesel generator price super silent genset
-
High quliaty rustproof dustproof soundproof diesel generator fuel consumption per hour
-
High quality cheap 75DB 375kva 300kw soundproof low fuel consumption powerful genset
-
Electric start 437kva 350kw low fuel comsuption silent diesel inverter generator by shanghai engine
Product Details
| Place of Origin | Fujian, China | Brand Name | Shanghai diesel | |
| Model Number | GF-75 | Output Type | AC Three Phase | |
| Speed | 1500rmp | Frequency | 50/60HZ | |
| Rated Power | 80kw/100kva | Rated Voltage | 400V/230V Adjustable | |
| Rated Current | 135A |
Product Description
High quality low rpm generator super silent outdoor and indoor soundproof genset 80kw 100kva by shanghai engine
| Genset Information | |||
| Model | GF-75 | Net dimensions (mm) | 2480*900*1400mm |
| Prime Output(kw/kva) | 80kw/100kva | Standby Output(kw/kva) | 88kw/110kva |
| Rated current(A) | 135A | Standby current(A) | 148A |
| Gross weight (kg) | 1690kg | Net weight (kg) | 1590kg |
| Rated voltage(V) | 400V/230V | Noise (dB) | 100dB(A) |
| Fuel Comsuption (g/kwh) | 207g/kwh | Frequency (HZ) | 50HZ/60HZ |
| Steady voltage adjusting rate | ≤±1% | ||
| Transient voltage regulation | +20~--15 % | ||
| Voltage settling time | ≤1s | ||
| Steady State rate adjustment frequency | ≤±1% | ||
| Frequency fluctuation rate | ≤±0.5% | ||
| Transient frequency regulation | +10~-7% | ||
| Frequency recovery time | ≤3s | ||
| Generator configurations | |||
| Engine Brand: | Shangchai | Fuel Injection | Direct Injection |
| Engine Model: | SC4H115D2 | Bore (mm) | 135*140mm |
| Intake System | Natural aspirated | Cylinder No. | 4/L |
| Cooling method | Closed circulating water cooling | Speed | 1500rpm |
| Compression Ratio | 17:01 | Governor | 110% |
| Starting mode | DC24V electrical starting | Speed adjustment mode | Electronic speed control |
| Alternator configurations | |||
| Alternator Brand: | Fengfengsheng | Protection Grade | IP22 |
| Alternartor Model: | TFW-80 | Connect method | Three phase four wire type y connection |
| Rated output (kw/kva) | 80kw/100kva | Excitation method | AVR(Automatic voltage regulator) |
| Rated voltage(V) | 400V/230V | Frequency (HZ) | 50HZ/60HZ |
| Insulation Grade | H Class | Power Factor | COS=0.8 |
