Home > Products > Cummins Series > Super Silent 640kw 800kva Soundproof Canopy Type Cummins Engine Generator Set
Super Silent 640kw 800kva Soundproof Canopy Type Cummins Engine Generator Set
US$ 1 - 99,999,999
/ Set
1 Set(Min. Order)
- Fuzhou
- T/T L/C D/P D/A Credit Card
You May Like
-
Fujian Factory Price Silent Cummins Diesel Engine Generator Set
-
Electric Control AVR 3phase Cummins 1000kva Diesel Generator Set
-
Slient and Automatic Type 1000kw Generator Cummins 1250kva Diesel Generator With ATS
-
For Outdoor and Indoor Use 1375kva 1100kw Generator Powered by Chongqing Cummins
-
ISO9001&CE Approved High Quality Silent Type Diesel 1500kva Generator by Cummins Engine
-
Warranty Guaranteed 368kw~600kw 460kva 500kva 625kva 750kva High Quality Doosan Generator Price List
Product Details
| Place of Origin | Fujian, China | Brand Name | Cummins | |
| Model Number | GF-640 | Output Type | AC Three Phase | |
| Speed | 1500rmp | Frequency | 50/60HZ | |
| Rated Power | 640kw/800kva | Rated Voltage | 400/230V(adjustable) | |
| Rated Current | 1152A |
Product Description

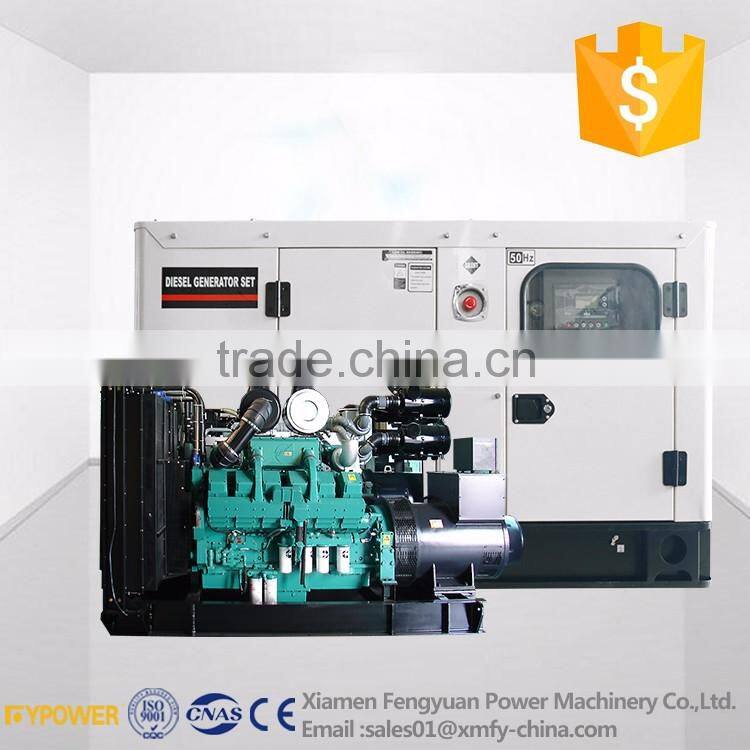

Super silent 640kw 800kva soundproof canopy type cummins engine generator set
| Genset Information | |||
| Model | GF-640 | Net dimensions (mm) | 4800*1680*2460mm |
| Prime Output(kw/kva) | 640kw/800kva | Gross weight (kg) | 7500kg |
| Rated voltage(V) | 400V/230V | Net weight (kg) | 7300kg |
| Rated current(A) | 1152A | Noise (dB) | 105dB(A) |
| Fuel Comsuption (g/kwh) | 205g/kwh | Frequency (HZ) | 50HZ/60HZ |
| Steady voltage adjusting rate | ≤±1% | ||
| Transient voltage regulation | +20~--15 % | ||
| Voltage settling time | ≤1s | ||
| Steady State rate adjustment frequency | ≤±1% | ||
| Frequency fluctuation rate | ≤±0.5% | ||
| Transient frequency regulation | +10~-7% | ||
| Frequency recovery time | ≤3s | ||
| Generator configurations | |||
| Engine Brand: | CCEC CUMMINS | Injection method | Direct Injection |
| Engine Model: | KTA38-G2B | Bore (mm) | 159*159mm |
| Intake System | Turbocharging | Cylinder No. | 12/V |
| Cooling method | Closed circulating water cooling | Speed | 1500rpm |
| Compression Ratio | 15.5:1 | Governor | 110% |
| Starting mode | DC24V electrical starting | Speed adjustment mode | Electronic speed control |
| Alternator configurations | |||
| Alternator Brand: | Yongfengsheng | Protection Grade | IP22 |
| Alternartor Model: | TFW-640 | Connect method | Three phase four wire type y connection |
| Rated output (kw/kva) | 640kw/800kva | Excitation method | AVR(Automatic voltage regulator) |
| Rated voltage(V) | 400V/230V | Frequency (HZ) | 50HZ/60HZ |
| Insulation Grade | HClass | Power Factor | COS=0.8 |
