Original Huawei UA5000 A32 service card

FOB Price

US$ 60 - 100 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock		Brand Name	huawei
Model Number	A32

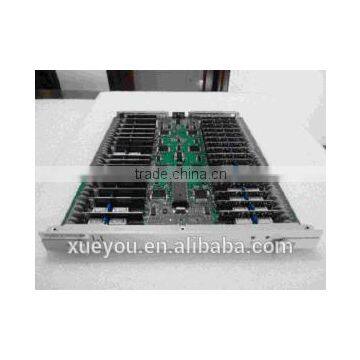

Huawei UA5000 A32 POTS service card in stock

Front panel of the A32 board (CC0HASL, CC0NASL and CC0SASL) :


	RUN: running status LED
	For the unshielded filler panel, the status of the LED is as follows
	Red: on for 0.5s and off for 0.5s repeatedly		The board is starting up.
	Red: on for 1s and off for 1s repeatedly		The board works in the normal state.
	Red: on		The protective unit of the board blows, and the -48 V input is off.
	For the shielded filler panel, the status of the LED is as follows
	Green: on for 0.5s and off for 0.5s repeatedly		The board is starting up.
	Green: on for 1s and off for 1s repeatedly		The board works in the normal state.
	Green: on		The protective unit of the board blows, and the -48 V input is off.

	BSY: port status LED
	Green: on		At least one POTS port is busy.
	Green: off		No POTS port is busy.

Front panel of the A32 board (H608ASRB1 and H608ASRB) :


	RUN: running status LED
	Green: on for 0.5s and off for 0.5s repeatedly		The board is starting up.
	Green: on for 1s and off for 1s repeatedly		The board works in the normal state.
	Green: on		The protective unit of the board blows, and the -48 V input is off.

	BSY: port status LED
	Green: on		At least one POTS port is busy.
	Green: off		No POTS port is busy.

Port of the A32 board :

Port	Function	Position	Connection
32-channel analog service port	Accesses analog subscribers.	Backplane (rear access shelf)	Use the 32-channel subscriber cable to connect the port to the MDF.
32-channel analog service port	Accesses analog subscribers.	SLTF (front access shelf)	Use the 32-channel subscriber cable to connect the port to the

Specifications of the A32 board :

Board	Dimensions (W x D x H)	Static Power Consumption	Typical Power Consumption	Maximum Power Consumption
CC0HASL	23 mm x 292 mm x 242 mm	7.84W	10.53W	13.22W
CC0NASL	23 mm x 292 mm x 242 mm	7.84W	10.53W	13.22W
CC0SASL	23 mm x 292 mm x 242 mm	12.0W	18.68W	26W
H608ASRB1/H608ASRB	23 mm x 292 mm x 242 mm	5.2 W	8.27 W	12.88 W
