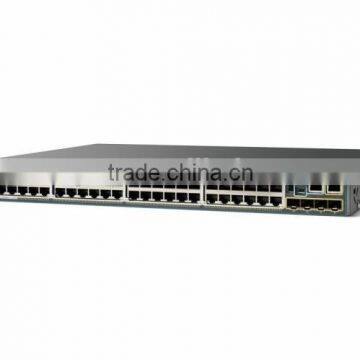

Huawei S5700 Series Switches wired and wireless devices S5720-56C-PWR-EI-AC1

Specifications

S5700-28C-EI

S5700-28C-PWR-EI

S5700-28C-EI-24S

S5700-52C-EI

S5700-52C-PWR-EI

S5710-28C-EI

S5710-28C-PWR-EI-AC

S5710-52C-EI

S5710-52C-PWR-EI-AC

S5710-52C-PWR-EI

Fixed Ports

S5700-28C-EI/S5700-28C-PWR-EI: 24 x 10/100/1000 Base-T ports

S5700-28C-EI-24S: 24 x 100/1000 Base-X ports, two 10/100/1000 Base-T combo ports

48 x 10/100/1000 Base-T ports

24 x 10/100/1000 Base-T, two GE SFP combo ports, 4 x 10 GE SFP+ ports

48 x 10/100/1000 Base-T ports, 4 x 10 GE SFP+ ports

Extended Slots

The S5700C series switch provides two extended slots, one for an uplink sub-card and the other for a stack card.

The S5710C series switch provides two extended slots that support uplink sub-cards.

MAC Address Table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

32K MAC

Interoperability

VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

Access Security

DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI

Management and Maintenance

Intelligent stacking (iStack)

Virtual cable test

SNMP v1/v2c/v3

eSight and web-based NMS

Auto-config

HTTPS

System logs and multi-level alarms

Remote network monitoring (RMON)

NetStream (supported by the S5710-EI)

sFlow

VLAN

4K VLANS

Guest VLAN and voice VLAN

GVRP

MUX VLAN

Super VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN mapping

Ring Network Protection

STP, RSTP, and MSTP

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

Smart Ethernet Protection (SEP)

G.8032 Ethernet Ring Protection Switching (ERPS)

BPDU protection, root protection, and loop protection

BPDU tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

Enhanced Trunk (E-Trunk)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

DLDP

LACP

IP Routing

Static route

Layer 3 dynamic route
