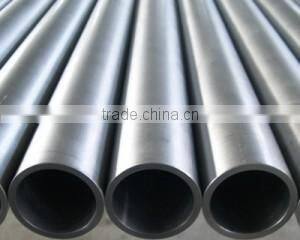

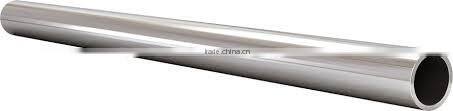

Zirconium Tube/Pipe

  Zirconium Tube/Pipe

R60702 seamless Zirconium tubes and pipes are our main products. Our tube rolling mill specializes in seamless Zirconium tubes and pipes.

Our Zirconium tubes and pipes are availabe in varying wall thicknesses and can be ordered in different lengths and specifications. Our capability can be used to customize your order including stamping welding and bending.

Grade:

R60702

Size:

Outer diameter:0.315" to 5.99"(8mm to 152mm)

Wall thickness: 0.02mm to 0.59"(0.5mm to 15mm)

Length: up to 354" ( 9000mm).

Standard:

ASTM B523/B523M-12a

ASME SB-523

ASTM B658/B658M-11E1

ASME SB-658/SB-658M

Mechanical Properties:

Grade

Tensile Strength,

min ksi(Mpa)

Yield Strength

min ksi(Mpa)

Elongation in 2 in.

or 50mm,min %

R60702 55(380) 30(205) 16

Test:

Seamless tubes and pipes are tested according to customers' quality requirements:

1 Tension test

2 Ultrasonic test

3 Eddy current test

4 Hydrostatic test

5 Pneumatic test

6 Flare test

7 Chemistry test
