Home > Products > Our Products Showroom > LS VISION Top 10 Cctv 16Ch Dvr P2p Tvi Dvr 16Ch 1080P 20Fps Cctv Camera System

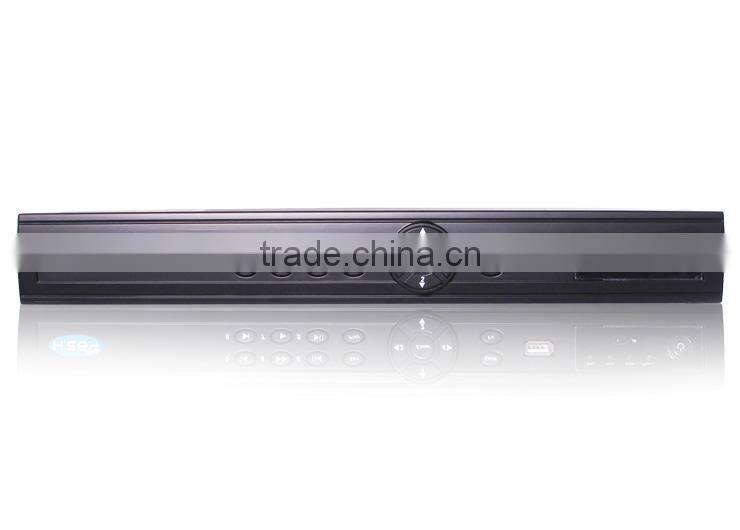

LS VISION Top 10 Cctv 16Ch Dvr P2p Tvi Dvr 16Ch 1080P 20Fps Cctv Camera System
- shenzhen
- Credit Card
You May Like
-
LS VISION 1080P Cloud Server P2P Dvr Factory Direct Hd Tvi Cctv Dvr
-
LS VISION Full Real Time 1080p 8Ch Dvr Camera System With Hd Tvi Camera Cctv Kits
-
LS VISION 4Ch Hd 1080P Tvi Dvr H.264 Full Hd Real Time Tvi Dvr With Fine Cctv Camera
-
LS VISION H.264 Network Digital Video Recorder Nvr 1080P Face Detection Poe Nvr
-
LS VISION 64Ch Ip Camera Nvr Dvr H 265 Nvr Camera System With Screen
-
LS VISION Network Video Recorder Pnp Nvr H.265 Nvr
Product Details
| Place of Origin | Guangdong, China | Brand Name | LS VISION | |
| Model Number | LS-TVR7216 |
Product Description
Key Features:
v 16CH 720P&1080P TVI DVR
v Full HD output, support HD, VGA, CVBS synchronization output.

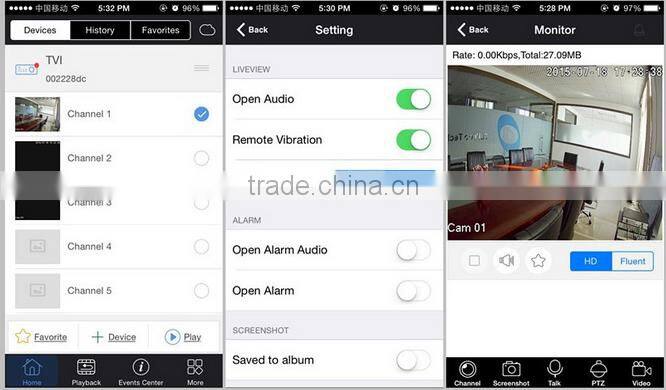

v Supports Iphone,Windows Mobile,Symbian,Android,Blackberry
v Plug and play, support P2P function, cloud services and cloud storage is provided.
Model | LS-TVR7216 | |
System | Operation System | Embedded LINUX |
Pentaplex function | Live monitoring, recording, playback, backup & remote access | |
Control Mode | Front panel, USB mouse, IR remote control,Network | |
Video | CVBS/TVI input | 16 ch. BNC(1.0Vp-p,75ohms) |
Output | 1 CVBS, BNC (1.0Vp-p,75 ohms) | |
1 HD, 1.3a,support 1920×1080 Resolution | ||
1 VGA,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution | ||
Audio | Input | 1 ch. RCA(Line in,2Vpp,1Kohms) |
Output | 1 RCA (Line out,2Vpp,300ohms) | |
Two-way Talk | 1st. channel reuse | |
Display | Resolution | 1080P(25/30fps), 720P(25/30/50/60fps),960H |
Privacy Masking | Four zones for privacy masking for each channel | |
Recording | Video Compression | H.264 HP4.2 |
Audio Compression | G.711A | |
Image Encoding | Adjustable encoding quality, variable code stream/fixed code stream | |
Dual Stream | Support | |
Max compression Ability | 16ch.1080P@15FPS or16ch. 720P@30FPS | |
Recording Mode | Manual, auto, motion detection, stop | |
Video Detection & Alarm | Trigger Events | Recording, PTZ, Tour,Email |
Motion Detection | 396 (22×18) detection zone, variable sensitivity levels | |
Capture | JPEG capture | |
Alarm Input | N/A | |
Alarm Output | N/A | |
Playback & Backup | Sync Playback | 16ch.960H or16ch.720P@30fps or 16ch.1080P@15fps |
Backup Mode | USB,HDD,Network Backup | |
Network | Ethernet | 1 RJ-45 port (10M/100M/1000M) |
Network protocol | TCP/IP, UDP, HTTP, RTP/RTSP | |
Network Functions | DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G | |
Remote Operation | Monitoring,PTZ control,playback,system setting,file download,log information | |
Smart Phone | iPhone,iPad,Android,Blackberry,Windows Mobile | |
Hard Disk | Hard Disk | 2 SATA ports,each SATA supports 4TB |
HDD Management | Hard disk hibernation technology, HDD faulty alarm | |
Auxiliary Interface | USB Interface | 2 USB 2.0 ports |
RS485 | Standard 485, half duplex,PTZ control | |
Environment | Power Supply | DC +12V/4A |
Power Consumption | 20W (without HDD) | |
Working Environment | 0℃~+55℃ / 10%-90%RH | |
Dimension(W*D*H) | 1U,320x245x50mm | |
Weight | 2Kg (without HDD) | |
Installation | Desk type | |

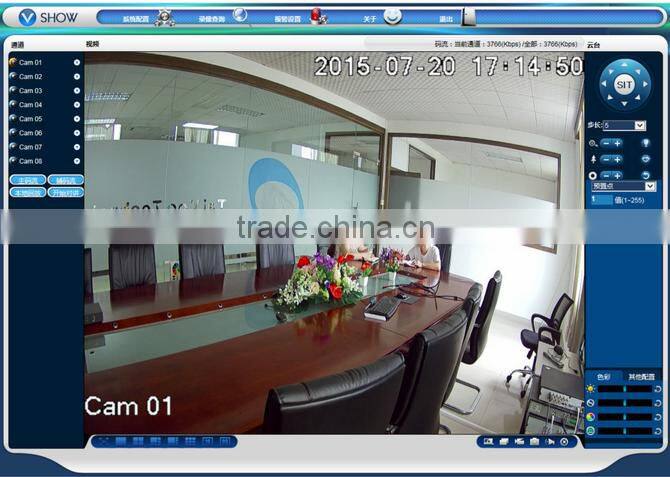

| IE Interface |
|
| CMS / Free APP |
|
| Image Display |
|
1. One year quality guarantee
2. OEM service to meet all your need.
3. Popular model will be suggested,keep our customer updated for the information about the products..
4. 7*24 Technical support
NOTE: The RMA code will be given with the response email. Return shipping charges will be the buyer`s responsibility.
Customers all over the world
Trading Process
Why LS VISION will be your first choice in the market?
1.Shenzhen LS Vision Technology Co., Ltd., established with the purpose of serving the house ware with professional quality products.
2.We have more than years export experience with a turnover more than 16 million US dollars.
3.We win a high reputation with our great ideas of creation and High quality products. LS VISION has exported our products all around the world, like USA, European countries.
4.We are also OEM&ODM manufacturer.
5.We own a professional engineering team and with our own factories to service different need of customers.
6.We believe with the permanent quality and reasonable price and excellent service, we are devoting to built pleasant business relationship with customers from all over the world. LS Vision Technology will be your first choice in the market.
1.Packaging Details:CTN
2.Shipping Details:dhl, fedex, ups
3.Payment Terms: Paypal , Western Union , T/T
4.Delivery Time:Within 7 working days
Contact Us
- Shenzhen LS Vision Technology Co., Ltd.
- Contact nameClara Yang Chat Now
- Phone86-755-26948579
- Address6 Floor, Blg 10, A Region, Tang Lang Industrial Park, Li Shui Road, Xili Town, Nanshan District, Shenzhen, Guangdong
