YQSPL Dry Scroll Vacuum Pump
- Peking Shanghai Tianjin Shenzhen
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shanxi, China | Brand Name | YQMM | |
| Model Number | YQSPL150, YQSPL300, YQSPL600, YQSPL1000 | Theory | Vacuum Pump | |
| Structure | Other, Scroll Pump | Usage | Air Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Other, Ultimate pressure ≤40Pa | |
| Application | Other, Abtain vacuum |
Product Description
Product name: YQSPL dry scroll vacuum pump (Ultimate pressure ≤40Pa)
GWSPL series dry scroll vacuum pump is constructed with fixed scrolls, orbiting scroll, main shaft, cooling fans, crank shaft kits, and bracket.
Its’ operating principle is based on two spiral cylinders, one offset and orbiting against the other with an offset of 180°. Thus several crescent-shaped pockets of differing sizes are created. By means of an eccentric drive, the orbiting scroll is made to orbit about the fixed scroll, reducing the volume of the pockets and compressing gases from the outside towards the inside thereby pumping the gases from vacuum chamber.
Model No.: YQSPL150, YQSPL300, YQSPL600, YQSPL1000
Features:
1.Provide clean vacuum environment: Provide oil free clean vacuum and discharge, no any back migration fluid, guarantees clean vacuum environment.
2.Wider vacuum range, higher ultimate vacuum level, and higher pumping speed: Pumping from atmosphere to ultimate vacuum level in seconds. Suitable for repeated switch on/off operation.
3.Low noise, less vibration; higher efficiency, less power consumption: Suction, compression, and discharge are processed continuously, results in minimum pressure pulsation, less vibration and low noise. Inlet and exhaust are separated, gas pockets are efficiently sealed, ensures minimum gas leak or back migration.
4.Virtually maintenance free: No oil or water in gas line, no need daily maintenance.
5.Provide technical service: Provide technical service and normal maintenance, supply customer order maintenance kits and OEM tip seal fabrication.
6.High reliability: CE, ISO9001 certificated.
7.Quick response:In stock
Technical Specification:

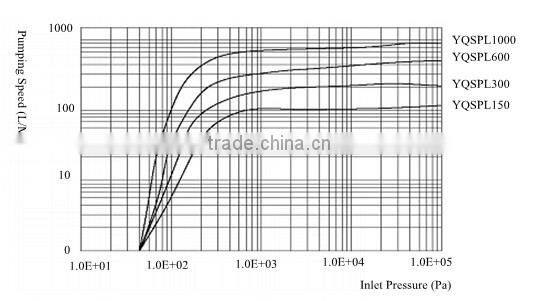

Performance Curve:
Connection:

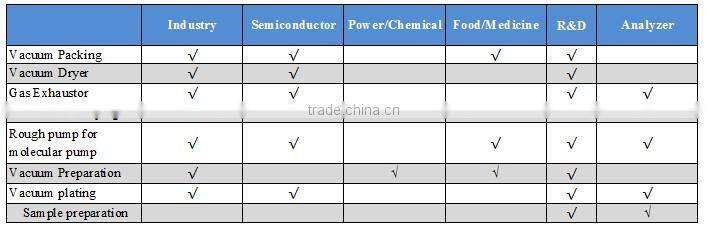

Application:
Packaging:Pacaked in carton or wooden case based on the quantity and customer's requirements.

Shipping: DHL/UPS/TNT/FEDEX/EMS international express/ By sea/ By air according to your quantity.



For more detailed informtion about YQSPL dry scroll vacuum pump, please feel free to contact me.
