CE ROHS IP67 1W Led Inground Light Underground LED Light 3 Years Warranty
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 Supply 1W IP67 Led Underground Light Led Outdoor Lighting Mini Single Led Lights
-
High Quality Outdoor 6W Landscape Lamps IP67 Led Underground Light up Shoes
-
12w Led Inground Light In Concrete Ce Rohs Emc Single Color Led Garden Light
-
Factory Offer IP67 6W Led Inground Light Led Buried Light
-
Shenzhen Offer Top Quality 3W Light up Shoes IP67 Landscape Lamps Inground Led
-
2016 CE Rosh 16w 36w 72w 200x200square Led Panel Light Fixture of Ceiling Light
Product Details
| LED Light Source | Edison | Warranty(Year) | 3 | |
| Input Voltage(V) | AC/DC 12/24V | Lamp Power(W) | 1 | |
| Lamp Luminous Flux(lm) | 80 | Lamp Luminous Efficiency(lm/w) | 80 | |
| Color Temperature(CCT) | Other, RGB | Working Temperature(℃) | -40, 55 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Stainless Steel | |
| IP Rating | IP67 | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | future | |
| Model Number | FL-UGL1x1WA4 |
Product Description
Hot!
High Quality Outdoor 6W Led Inground Light IP67 Led Underground Light
Welcome to send email to me for futher issue, thanks you!
Shenzhen ZCD Technology Co., Ltd.
6/F, Building A1, Yijing Industrial park,
Gongming Town, Shenzhen, Guangdong, China
Tel: +86 0755-23180339
Mob:+86 13425109461
Web:
Skype:Jessica.guo100
WhatsApp:+86 13425109461

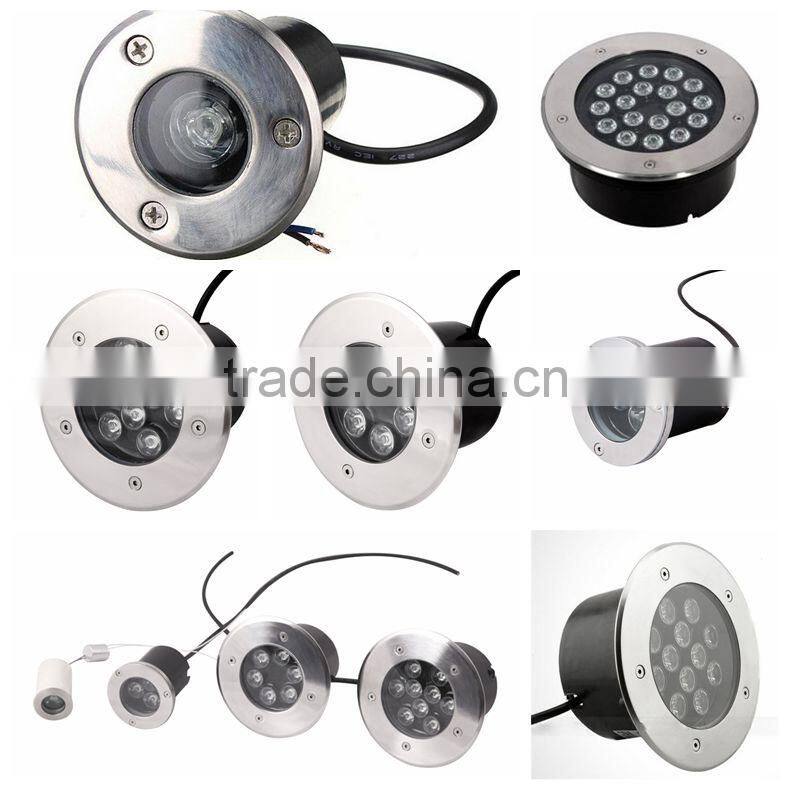

Product presentation
Technical paramter
Input voltage: DC12V/DC24V/AC85-265V
Dimension: Ø140*H95mm
Total harmonic distortion:≤9%
Power factor: >0.9
Power efficiency: >87%
LED working voltage: DC24V
LED quantity: 6pc
LED consumption:5.7W
System consumption:6.5W
LED lumionous efficiency:80LM/W
LED initial flux: 480LM
Lamp's efficiency: >91%
lluminance Uniformity:>0.5
Color rendering indexRa: >75
Light distribution: Symmetric / round spot
Light design: LED+lens second grading
LED junction temperature℃: ≤80℃
Working temperature: "- 40℃ to + 55℃
Storage temperature: "- 25℃ to + 65℃(25℃ optimum)℃
IP grade: IP67
Net weight:0.8 KG
Working lifespan: 50000Hours
Note: Different LED color temperature have deviation, deviate≤5%
Installation Instructions
1. Loose the screw ,remove the mounting bracket down.and convert the bracket angle.
2.Use the screw to place the bracket on the mounting surface.
3. Properly connect the power line.
If you need to replace driver,
a.directly use screwdriver to open rear cover ,
b.remove the driver, three power cords connect to the corresponding driver port “L”, blue to “N”, yellow to “”, Red DC power cord or white cord to driver’s cathode, attention don’t reversely connection.

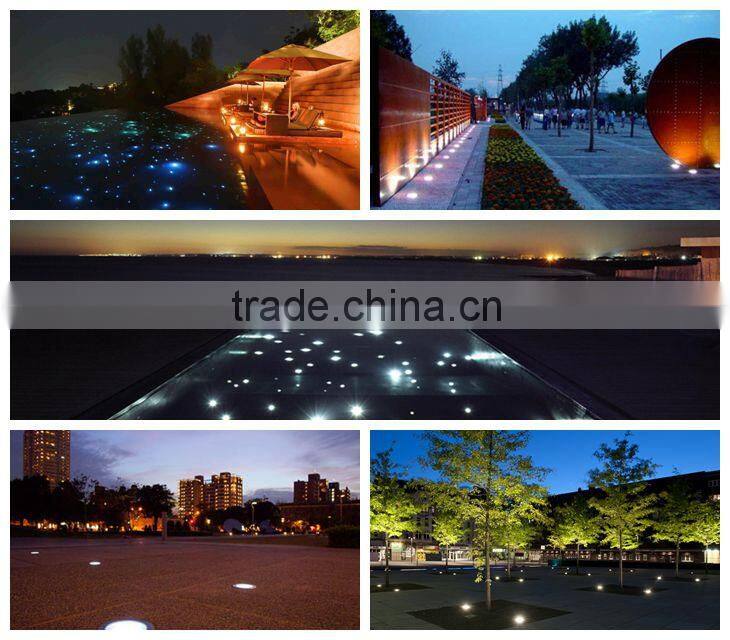

Share by customer
Our Team
Packaging & Shipping
Standard export packaging
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choosethis way.
4. Your shipping agent or forwarder.
Our Services
Trade Terms:
1.Payment: T/T , 30% deposits before production, 70% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 100~500pcs: 10days, 500~1000pcs:15days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities
7.MOQ:5pcs
Payment Terms
1. Samples: Bank TT (Paypal or Western Union are welcomed ),100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Why us
1) CE ROHS EMC ROHS EMC PSE certificate.
2 ) Free replacement&maintaince within 3 years.
3 ) High brightness Epistar chip, lifespan 50000hours.
4 ) Customized box with your logo for order 500pcs
We promise
1)Provide sample for testing.
2)Reply your inquiry within 1 hour in our work time.
3)3-5 years warranty .If any quality problem during the warranting,free replacement.
Welcome to send email to me for futher issue, thanks you!
