High Quality and Large Quantity Supply for Led Digit Oil Pri

packing by wooden box, one for 4 pieces

                High quality and large quantity supply for 20 inch 88.88 led digit oil price signs

Product description

1.Control system:Glare Gas Price control system making price changes quick and easy.

2.Outdoor or Semi-outdoor brightness available.

3.Different sizes and colors are available that fit your flexible needs and wants.

4.A finished cabinet makes installation trouble-free with no addiyional fabrication needed.

5.Customized face designs.

6.Status LEDs placed on the driver for easier troubleshooting.

7.Up to 255 pieces can be networked, and two kinds of remote control methods with twelve-button operation.

8.Power supply with CE/UL approval available.

Technical Parameters

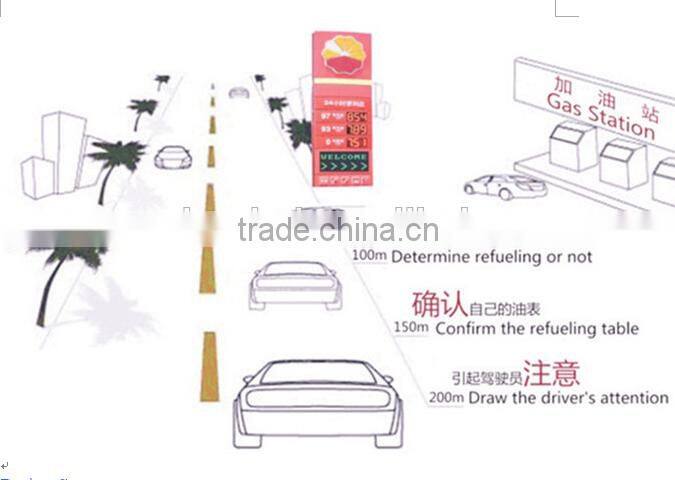

Design Concept:

>> Attracting the driver's eyes when go through the gas station.

 Application

>> Main used in Gas station, Convenience store, Hotel, etc.

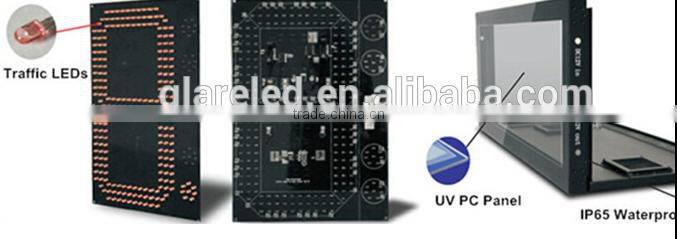

PCB Board & Cabinet:

1. Whole PCB Board

>> The 8 segements (including points) in each 8 digit board and driving board are all in an individual PCBboard, with all copper foil wires, greatly reducing the possible of losing connection.

 >> Can achieve batch production and mechanized production, effectively improve the production efficiency, greatly reducing the quality issues caused by artificial factor.

 >> Because the whole PCB board has a lot of copper foil as heat-eliminating medium, the heat caused byLEDs and IC can be quickly dispersed, ensure the lifespan of LEDs.

 >> If appeared some prombles during the process of using, can easy to repair the problem parts, andthe LED gas price sign can be used again after repair, effectively reduce the maintenance cost.

2. Sheet Metal Cabinet

>> Adopting sheet metal structure, with UV protection and high temperature resistant PC glass, as well ascustomized waterproof wire and waterproof bolt. Good waterproof performance, beautiful, light and not easydeformation.

 >> Super slim design, thickness: 6cm.

 >> Can achieve batch production and Inventories production.

 >> Using special key can easily open the back cover, convenient for maintenance.

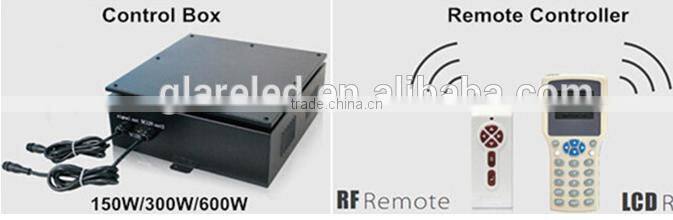

Control Box & Remote Controller:

1. Control Box

>> Control card built-into the Control box, 1pcs Control box at most can control 24pcs LED gas price sign,greatly saving the cost of control card.

 >> Adopt MeanWell power supply, the power supply with UL certification.

 >> Built-in Fans, good heat dissipation.

 >> With Light sensor, can automatic adjust the brightness of LED gas price sign.

2. Remote Controller

>> RF remote: 100~150m control distance, default remote controller.

 >> LCD remote: 150~300m control distance, need additional cost.

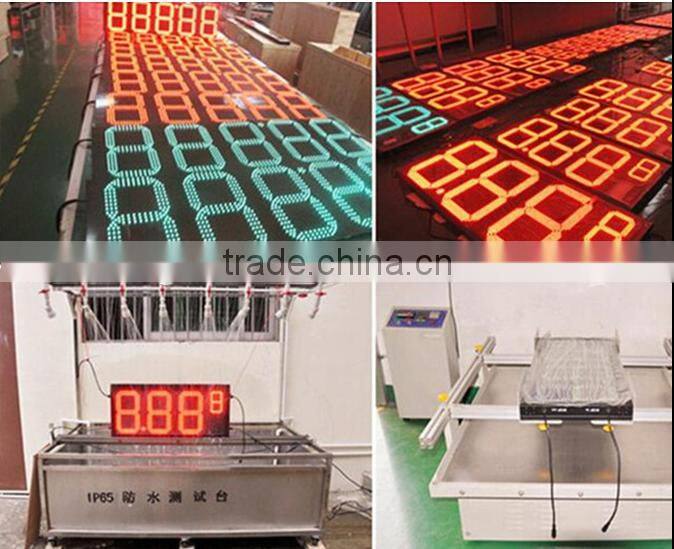

Product Testing:

>> Before delivering the goods, we will do a series of testing for the products, include Aging testing,Waterproof testing, Vibrating testing.Ensure to delivery high quality products to customs.

Shipping&Payment:

1) TT 50% As deposit and 50% Balance before shipping after examine goods.

 2) West union, L/C at sight etc. are all ok.

 3)In general,5~7days after deposit, Accurate production time depends on production schedule.

 4) Sample will be shipped by DHL,

 5) Normal export wooden and Carton case package.

 6) We will always tracking and helping you get the best purchasing experience.

About Glare-LED:

Shenzhen Glare-LED Co.,Ltd is a High-tech enterprises,specializing in R&D, Design, Production, Marketing and

Engineering of LED Display, LED Gas Station applications, LED Industrial Lighting and its supporting products.

Glare-LED as a global leader in the field of Gas Station Applications, has successful cooperated with Mobil,shell,

Petrochina,Sinopec and other global well-known oil companies. The export volume of LED gas price sign, LED

display and Gas station LED light has ranked forefront in Shenzhen.

Glare-LED Honor:

Glare-LED products have passed international and domestic CE,RoHS,FCC,CCC certification, strict in ISO9001:

2008 quality management system certification and focus on 7S management standards. Our products has won

many praise in international and domestic market.

Exhibitions:

In order to enhance the brand awareness and expand markets, Glare-LED attended a lot of large internatioal

exhibitions.
