Traffic Variable Messaging Highway Led Speed Limit VMS Signs
- Shenzhen China
- T/T Credit Card
You May Like
-
Variable Message Signs Speed Limits Traffic Management LED Display Signs
-
Traffic Variable Messaging Speed Limit Highway VMS Signs Buy LED Screen Outdoor
-
Promotional Cheap Speed Limit Display Variable Message Signs
-
Portable Road Safety Traffic Variable Warning Sign With Speed Limit and Guide Sign
-
Highway Safety Variable Speed Limit Sign Traffic Led Road Sign
-
5 Color Variable Message Signs for Traffic Control and Advertising
Product Details
| Place of Origin | Guangdong, China | Brand Name | Glare LED | |
| Model Number | VMS | Usage | Outdoor | |
| Tube Chip Color | Other, 4A, 4R2G, 4R2G1B | Display Function | Graphics | |
| Pixels | Other, 31.25 | Screen Dimension | Customized |
Standard wooden or carton packaging make sure safe deliver.
Product Description
Traffic Variable Messaging Highway led speed limit VMS Signs
- Product types
Product Type | Pixel Pitch | Pixel Composition | Resolution | Encapsulation mode | Consumption W/m2 | View Angle | Brightness | Module Size(mm) |
Amber Single color |
P31.25
|
4A
|
8*8
| perfect circle Ø5 | 120 | 30°/30° | 6500cd/m2 | 250*250 |
Dual Color | P31.25 | 4R2G | 8*8 | perfect circle Ø5 | 200 | 30°/30° | 13500cd/m2 | 250*250 |
Full color | P31.25 | 4R2G1B | 8*8 | perfect circle Ø5 | 300 | 30°/30° | 15000cd/m2 | 250*250 |
- Technical parameters
Item | Parameter |
LEDs | LED for Traffic Usage |
Pixel | P31.25 |
Dimension | Customized |
Cabinet Material | Aluminum or Iron |
Color | Mono color,Double color,Full color available |
Density | 1024 dot/m2 |
Brightness | Manual operation or Automatic different level adjustion |
Watching Distance | Static 300M, Dynamic250M |
Control Way | Asynchronous |
Communication Interface | RS232/RS485/RJ45/GPRS/3G,,, |
Rate of scan | >120hz |
Lifespan | 100,000 hours |
Malfunction dot rate | <1/10000 |
insulation resistance | >100MΩ |
Hi-pot test | 1500V/50Hz for 1 minute,No break,Pass |
Crash test | Pass |
Vibration Test | Pass |
Driving Mode | Static constant current |
IP Rank | IP65 |
Working Humidity | 5%-95% |
Working Temperature | -40℃~+75℃ |
Power supply | AC220V±18% / 50Hz±10% AC380V±18% / 50Hz±10% |
Certification | CE/FCC/ROHS… |
- Features
1 High brightness p31.25 highway Mobile VMS: use ultra-high brightness LED, the display are still visible when exposure to direct sunlight.
2 High uniformity transportation LED guide sign: good performance in uniformity, color consistency and clarity.
3 Good flatness LED Traffic Display: the flatness of module mounting surface must be in the range of ±0.1mm
4 Good effect: adopts not line proofread technology, so that the photo is more clear and arrangement is stronger
5 Patent mask ITS and Traffic Signs: a unique design of lower inclination, reduce waste and increase the effective viewing angle;
6 Strong Reliability transportation LED guide sign: the use of a variety of scanning technology and modular design techniques, with higher reliability and stability;
7 Stable board: PCB board using wave soldering process, with green oil and oxygen barrier, preventing the wet oxidation of the line, and improve the lifespan;
8 with 3-resisting lacquer: protect circuit boards and related equipment from the erosion of the environment; has good resistance to high temperature; after cured into a transparent protective film, with excellent insulation, moisture-proof, leak-proof, shock-proof dust, corrosion, aging resistance, corona and other properties;
9 Waterproof Glue: with automatic irrigation machines, to ensure the uniform, smooth, waterproof;
10 Rigorous testing: products through a series of strict inspection measures, such as raw materials inspection, production process inspection, product testing, and aging testing,etc.

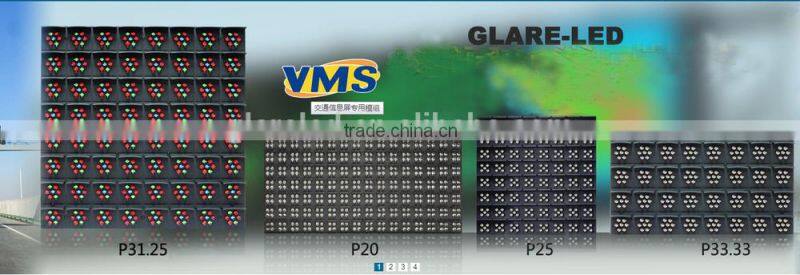

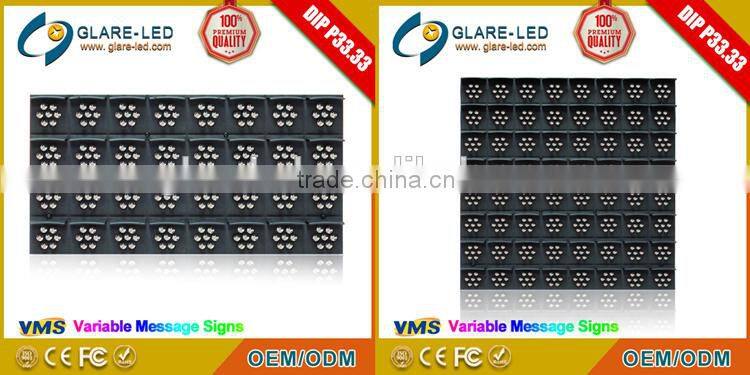

- Module pictures for highway Mobile VMS

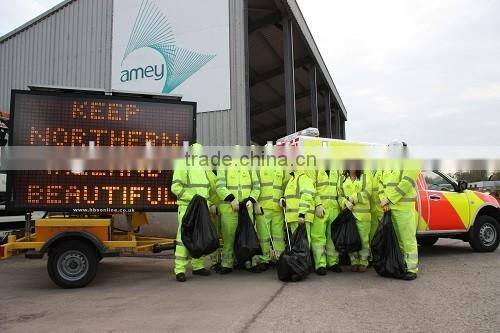

- Project show for highway Mobile VMS

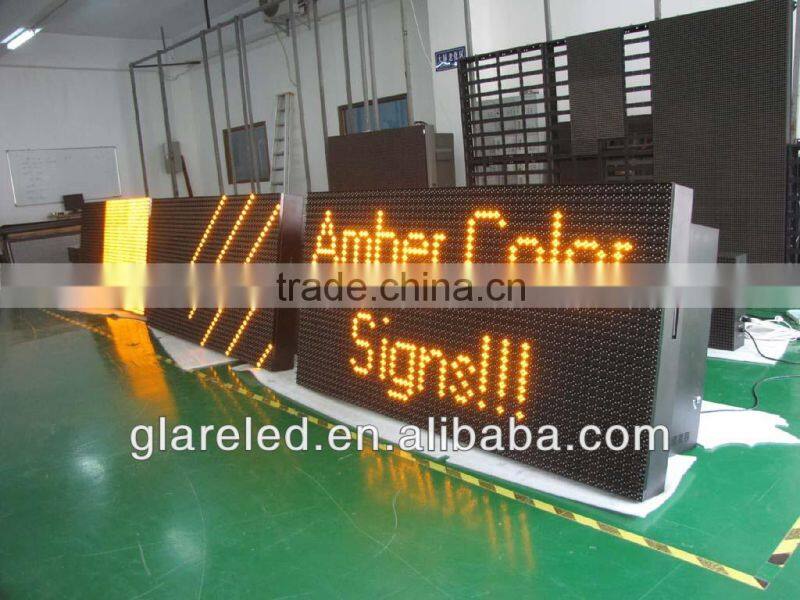

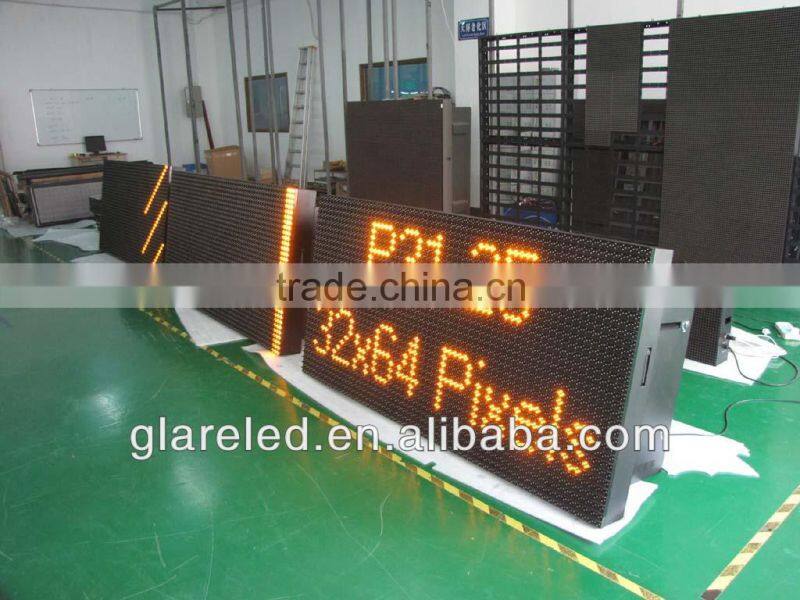

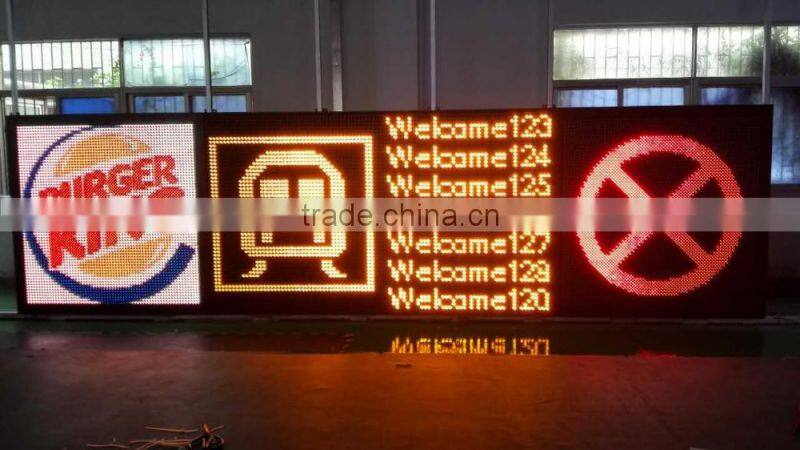

- Real pictures for highway Mobile VMS
Standard Wooden Box Packaging make highway Mobile VMS in the best condition:
1)TT 30% As deposit +70% Balance before shipping after examine goods.
2)West union, L/C at sight etc. are all ok.
3)In general, 7~10working days after deposit, Accurate production time depends on production schedule .
4)Sample will be shipped by DHL, TNT, Fedex depends on your advice.
5)Safe wooden and Carton case package.
6)We will always tracking and helping you get the best Purchasing experience.
Shenzhen Glare-LED Co.,Ltd is one of the high-tech enterprises, which specialized in R&D, designing,producing,marketing and engineering of outdoor/indoor LED display, Traffic LED display, LED gas price sign, LED time & temp sign etc.
With the industry's senior human resources and technological advantages of the elite, combined with its own "integrity first, quality first, service first" business philosophy,as well as our rigorous attitude to the products, we has become a well-known integrated LED products manufacturing company at home and abroad.

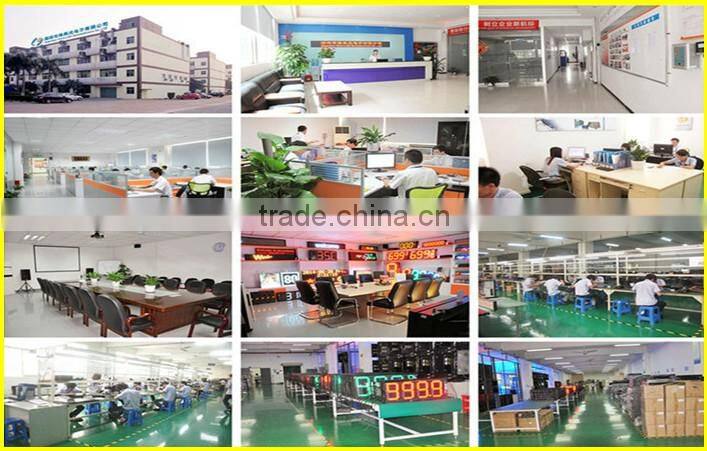

- Our factory
- Certificates
What does this limited warranty cover?
This Limited Warranty applies to new for transportable LED signs for normal use. Glare LED outdoor P31.25 Variable Speed Limit Signs warrants that a covered product is free from defects in materials and workmanship, with the exceptions stated below.
How long does limited warranty coverage last?
This limited warranty lasts for 1 years. And basic spare parts are available.
What the certificates outdoor led transportable LED signs?
The for transportable LED signs has passed the certificates like CE, RoHS, FCC, etc.
Senior sales | Maggie Lu
Skype: glareled2013
Tel: +86-755-29168291 ext 840
Mob: +86 13823780126(24 hours)
WhatsApp: 0086 13823780126
Email: glareledsales006(at)
Web:
www.ledsolution4u.es
.br
