Home > Products > SK gateway > Best Selling of voip gateway 32 port with vpn support and imei change,Sending and Receiving SMS and Call business

Best Selling of voip gateway 32 port with vpn support and imei change,Sending and Receiving SMS and Call business

FOB Price

US$ 935 - 1160 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card PayPal Cash

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	skyline		Place of Origin	China
Model Number	M26		Type	VoIP Gateway

Product Description

sk16-16

Specifications

voip gateway 32 port
1.SIP Protocol
2.IMEI change
3.BTS change and lock
4.SIM rotation

Any inquiries,pls contact me freely.

Telegram: @Victor_168

WA: +86 13923448407

Skype: live:.cid.6dd4c96166eaa6f2

Best Selling of voip gateway 32 port with vpn support and imei change,Sending and Receiving SMS and Call business

Introduction:

Product Name: 32 port GSM/CDMA/WCDMA gateway

Specification:

1.3 channels, up to 32 SIM cards

2.GSM, CDMA, WCDMA VoIP gateway

3.Frequency: GSM. Quad Band 850/900/1800/1900MHz

CDMA. 450MHz or dual band 800/1900MHz

WCDMA 850/900/1800/1900/2100MHz

4.IMEI change, BTS change and lock,SIM rotation

5.SIP protocol, compatible with Asterisk, Elastix, Freeswitch

6.SMS batch receiving/sending, AT command compatible

Series Model:

ACOM504G -- 4 ports 4 SIMs GSM gateway
ACOM508G -- 8 ports 8 SIMs GSM gateway
ACOM508G(SIM switch) -- 8 ports 16/32 SIMs GSM gateway

ACOM504C -- 4 ports 4 SIMs CDMA gateway
ACOM508C -- 8 ports 8 SIMs CDMA gateway
ACOM508C(SIM switch)-- 8 ports 16/32 SIMs CDMA gateway

ACOM504W-- 4 ports 4 SIMs WCDMA gateway
ACOM508W--8 ports 8 SIMs WCDMA gateway
ACOM508W(SIM switch) -- 8 ports 16/32 SIMs WCDMA gateway

Overview:
The series products, rely on leading AudioCodes DSP chips, use the most advanced VoIP technologies.

All products are based on industry standard protocl (SIP call control, G729, G711 voice compression etc.), fully compatible with Asterisk and wellknown VoIP device providers(Cisco, Huawei etc.), for deploying flexibly many communication solutions,to bring deeper clarity and better end user communication experience.

The Ejointech ACOM504G/504C/504W/508G/508C/508W is an analog GSM/CDMA/WCDMA Cellular Gateway that helps directly interconnect a SIP-supporting VoIP network with GSM/CDMA /WCDMA networks.


Features & Specifications:
Call Control Protocols SIP
Compatible
Compatible with Asterisk, VOS,Freeswitch,Elastix,
IMEI change
BTS change and lock
SIM rotation
Number of Channels 8 GSM/CDMA /WCDMA channels
Frequency
GSM:Quad Band 850/900/1800/1900MHz
CDMA: 450/800/1900MHz
WCDMA: Five Band 850/900/1800/1900/2100MHz
Voice CODECs G.729A, G.723.1, G.711 a/ulaw
Network Protocols IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP
Configuration and Management ·Web-based GUI
·Console, telnet command line
·Centralized network management
Firmware Update Local file, FTP, TFTP and HTTP
Message Features SMS batch receiving/sending, AT command compatible
Telephony Features ·Hot-line call
·Dial plan
·Speed dial
·Phone book
·CDR
·White list
Telephony Signaling ·DTMF tone dectection/generation
·DTMF relay: in-band, RFC 2833 and SIP info
·Call forward: unconditional, no answer and busy
·N-way conferencing
·Mobile Number Portability
Voice Quality ·Echo cancellation
·Silence suppression(voice activity detection, comfortable noise generation)
·Adaptive jitter buffer
Number of Ports ·1 WAN 10/100Base-T ethernet(RJ-45 connector)
·1 LAN 10/100Base-T ethernet(RJ-45 connector)
·1 console(RS-11 connector)
LEDs 1 power and 8 groups of signal strength and running indicator
Power Supply 100-240VAC, 50 - 60 Hz
Dimensions -Rack mountable 1U chassis(compatible with 19" Rack)
-Width: 482mm
-Height: 44mm
-Depth: 210mm
Weight 2.5kg
Operating Environment ·Operating temperature: 0 - 50ºC
·Operating humidity: 10 - 90%
Warranty 12 Months

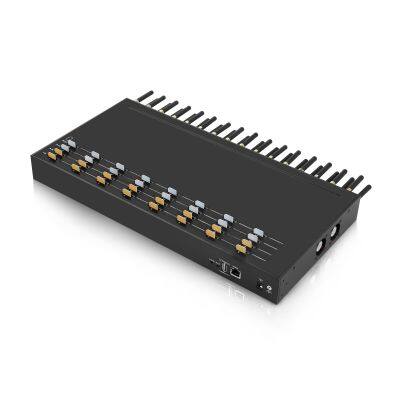

The Detailed Picture:

Application:

Used in conjunction with VOS, VPS, call back or other Asterisk-based softswitches, for accessing VoIP network by

SIM cards, LCR select least cost router to reduce the cost of calls.

Saving Cost on International and Long Distance Calls,when you are in the other countries& you have this gateway at your

Local office,you could dial & receive phone call from your customers as you are there without Long Distance fee Very

excellent solution for internal company with branch offices oversea.

Packages:
