2014 Led Canopy Lights Led Flood Lights Led Panel Lights Led Street Lights

high quality woodex box package

Specifications

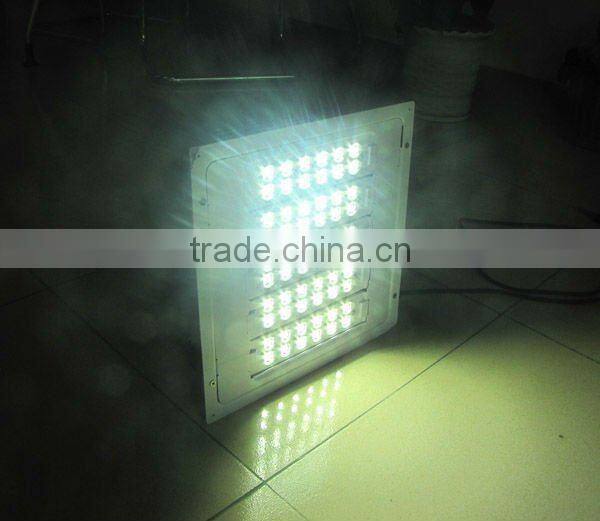

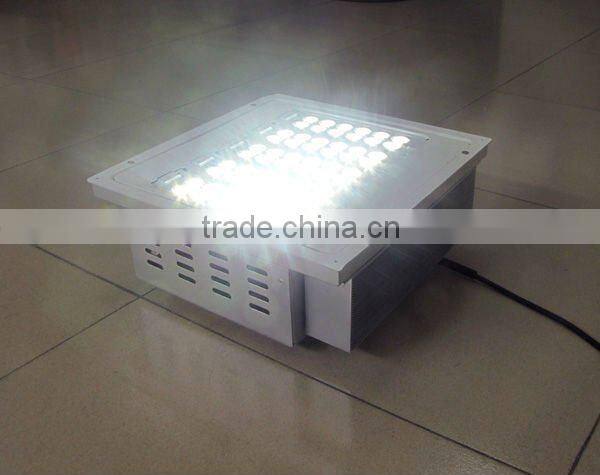

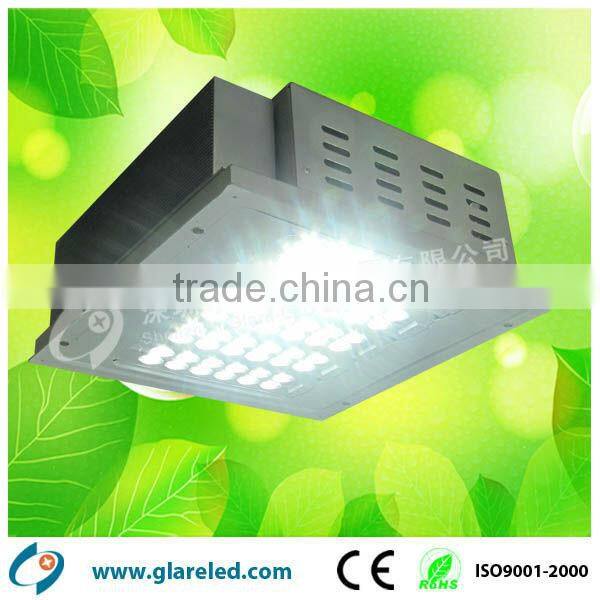

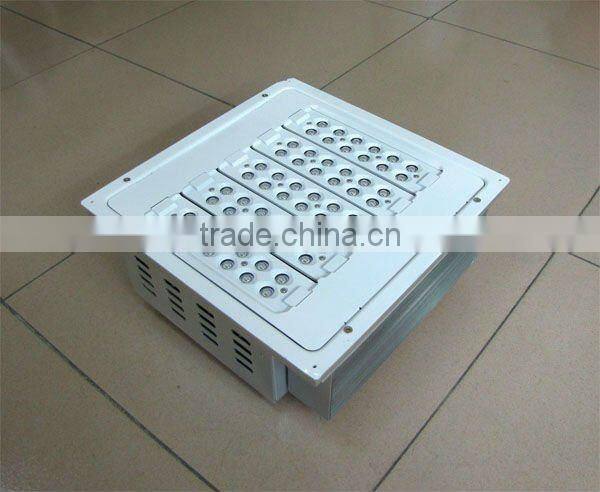

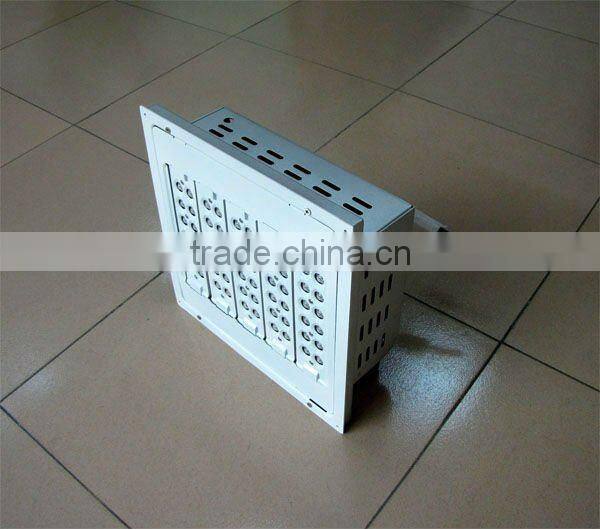

    120w petrol station led canopy lights

1.Chips is original from America.
2.Taiwan original power supply
3.Life span is 30000 hours
4.Easy install
5.Good CRI: Ra80

Product:120W Explosion-proof lamp series

Feature:

1. We have all kinds of lighting lamp in usual environment, Also have explosion-proof and anti-corrosion lamp used in special environment.

 2. The light source is original import from America with high brightness, low light attenuation, large current margin, quality assurance.

3. Adopt Taiwan original power supply, which conform to the world lighting equipment and safety code.

4. The life span is 30000 hours.

 5. Easy install: lifting type and ceiling type.

6. Good color rendering index, any colors by your chose, and can be meet the requirement of different environment.

Applications:

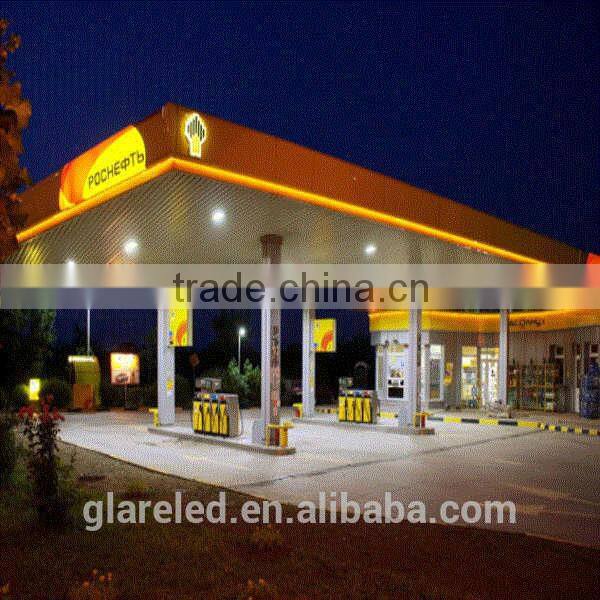

Apply to the gas station, mine, workshop, factory, warehouse, highway toll booth, large supermarket, exhibition hall, the stadium and other big banqueting hall lighting.

Technical specifications:

Products name 120W explosion-proof lamp

Model Tdl-k70012-120

Power 120W

Power factor 0.95

Power supply voltage 100-277VAC 50-60HZ

CRI Ra80

Beam Angle 100°

Size 340*340*150mm

Light Color :

white(5000-6000K)

Natural white(4000-4500K)

Warm white(2700-3000K)

Luminous flux

9500lm(5000-6000K)

9100lm(4000-4500K)

8100lm (2700-3000K)

LCN2 Luminaire Specifications

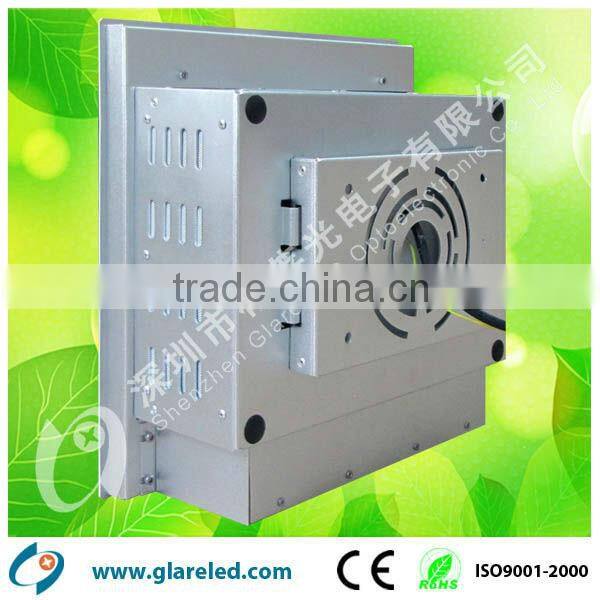

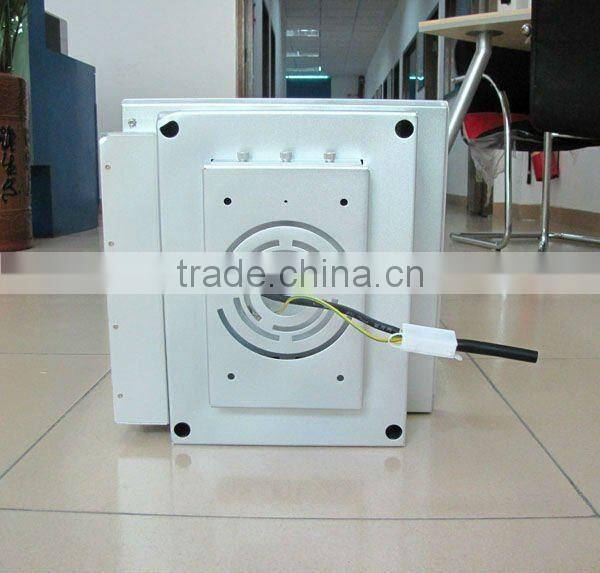

Luminaire Housing: White ABS outer housing with steel top cover. Vertical adjustment brackets allow for leveling and height adjustment. Designed for recessed installation in double-skin canopies.

1. Finish: White.

2. Light-Engine Housing: Die cast aluminum housing with heat dissipating fins.

3. Optical Chamber: Sealed by die formed silicone gasket held captive by stainless steel frame between clear prismatic UV stabilized polycarbonate lens and cast aluminum heat sink to prevent ingress of dust or moisture.

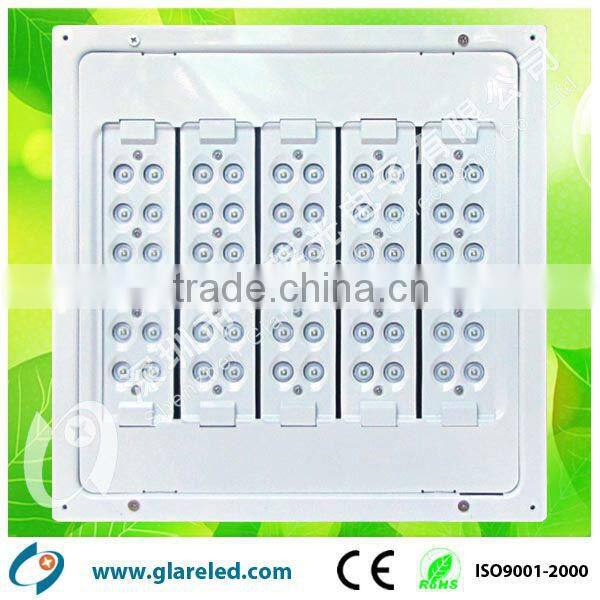

4. Light Emitting Diodes: Hi-flux/Hi-power white LEDs produce 130 lumens (typical) per watt and 70% of initial intensity (L70  projection) at 60,000+/- hours of projected life. They have a CCT (correlated color temperature) of 5000K and a typical CRI of 70. LEDs are 100% mercury and lead free.

5. Electrical: Dual power supplies feature a Power Factor of .9 and <20% Total Harmonic Distortion (THD). EMC meets or exceeds FCC CFR Part 15 Class A. Power supply produces a maximum drive current of 325mA to optimize LED efficiency and life. Operating temperature rating: -40F to 122F (-40C to 50C).

high quality woodex box

Our service:

1. Listings/Ratings/Warranties: Luminaires are listed by CSA for use in damp/dry locations in the United States and Canada as well as CE listed

2. Warranty: Three-year limited warranty is standard on all components.

3. Note: CE only 110-220V model

4. Photometry: IES Type V, Cutoff distribution. All luminaires are photometrically tested by a certified independent testing laboratories in accordance with IESNA LM-79 testing procedures.

Projector for reference:
