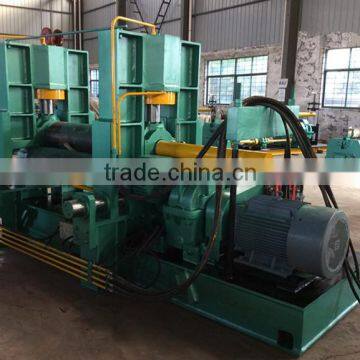

CNC hydraulic upper roller universal metal rolling machine
- 120 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | HSSK | Model Number | W11S 12*2500 | |
| Machine Type | Roller-Bending Machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Carbon Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | End Forming | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
w11s plate rolling machine 12*2500
1.Plate bending machine
2.High precision
3.Auto bending machine
2.Export standard configuration
No. | Item | Remark |
1 | Electric parts | Schneider(France) |
2 | Hydraulic parts | YUKEN (Japan) |
3 | Seals | VALQUA(Japan) |
4 | Forged Rolls | NANGANG (China) |
5 | PLC | OMRON (Japan) |
6 | Main Motor | Siemens(Germany) |
7 | Touch screen | Touch win (Canada) |
8 | valve | Taiwan UOSHEN |
3.Technical data
No. | Specification | Unit | Value |
1 | Model |
| W11S-12×2500 |
2 | Max bend width | mm | 2500 |
3 | Max pre-bend thickness | mm | 12 |
4 | Max bend thickness | mm | 10 |
5 | The diameter of up-roller | mm | Φ300 |
6 | The diameter of down-roller | mm | Φ165 |
7 | The distance of two bottom rollers | mm | Φ270 |
8 | The yielding limit of bend sheet | Mpa | σs≤245 |
9 | Main motor power | KW | 11 |
10 | Hydraulic motor power | KW | 5.5 |
1. Warranty: 14 months after delivery the goods.
2. Payment: 30% down payment and 70% paid after receiving the copy of the documents.
3. Delivery: 30 days after receiving 30% down payment.
4. Loading: Plastic cover coat, through containers
5. Technique support and service: support twice operating training, first one is at my factory during the processing time, second one at the buyer’s factory during the re-installation/testing period. We will send our engineers go to buyer’s factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
