Product Details
| Place of Origin | Shanghai, China | Brand Name | Tianma | |
| Model Number | TM050RDH03 | Type | TFT |
Product Description

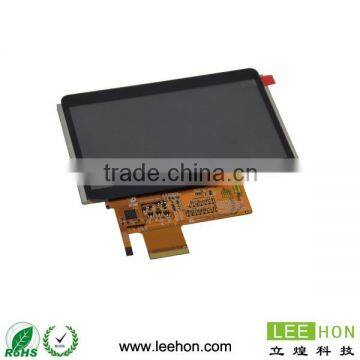

touch screen 5 inches capacitive touchscreen :
| Model | TM050RDH03 |
| Size | 5.0" |
| Resolution (pixel) | 800*480 |
| Active Area(mm) | 108.00*64.80 |
| Pixel Pitch (mm) | 0.360x0.360 |
| Display Mode | TM with Normally White |
| Uniformity(%) | 80 |
NTSC(%) | 50 |
| Color Depth | 16.7M |
| Viewing Angle (R/L/U/L) | 50/70/70/70 |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 600:1 |
| Response Time (ms) | 20(on+off) |
| Outline Dimension (mm) | 120.70*75.80*3.10 |
Weight (g) | TBD |
| Light Source | LED |
| Temperature Range | operating: -20 to +70°C storage: -30 to +80 °C |
| Humidity | operation: 90 (%RH) storage: 90 (%RH) |
Surface Treatment | Anti-Glare(3H) |
| Electrical Interface | RGB 24 bits |
ROHS Compliance | ROHS Compliance |
Touch panel drawing
Interface: I2C
support: multi-touch 5 point
Hardness: 6H
Type: G+G
IC: FT5136 ( chanel 12*21)
Work temp: -20 C to 60C
Storage temp: -30C to 70C
Quality promised, 100% original,fast delivery,also enjoy one year guarantee !
5 inch tft lcd display TM050RDH03:
| 1.What Brand do you have? |
| Re: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG |
| 2.What is your delivery method? |
| Re: DHL , UPS , FedEx ,TNT |
| 3.what’s your products condition? |
| Re: Brand New,A grade,Original Package. |
| 4. What is your guarantee time? |
| Re: 1 year |
| 5. What is delivery time? |
| Re: 2-7 days after payment is received. |
| 6. What payment term do you accept? |
| Re: T/T,PAYPAL etc. |
| 7. what’s the certification your products get? |
| Re: Rohs Compliant |
| 8. How long can you supply the industrial grade products? |
| Re: at least 3-5 years |
| 9.what’s your MOQ of your products? |
| Re: NO MOQ |
Package details:
The more information for Hangzhou Leehon!
* We are one of the main agents for AUO/Tianma/Innolux/Mitsubishi/CMI five brands tft lcd moulds in China from 2009, so from here you can get the most competitive price for real products;
* Application: Idea for Aviation, POS, ATM, Kiosk, Marine, Medical, MFP, facotry automation
* All the panels are 100% original and brand new, no fake panels exists, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from here you can get more convenient delivery;
* Superior After-Sale service.
