Home > Products > New Products > TM047NBH03 4.7 inch lcd module touch
TM047NBH03 4.7 inch lcd module touch
- HK/Shanghai
You May Like
-
Tianma TM047NBH03 4.7 inch touchscreen lcd panel
-
LH101LD1280800-AWTNA 1280(H)x800(V) 10 inch LCD display with touch screen
-
touch screen 5 inches capacitive touchscreen
-
LH101LD1280800-AWTNA 1280(H)x800(V) lcd display panel 10.1inch
-
LH-VD58 tft lcd driver board, with VGA/DVI interface
-
LH-VD58 tft lcd driver board with VGA, DVI interface
Product Details
| Place of Origin | Shanghai, China | Brand Name | Tianma | |
| Model Number | TM047NBH03 | Type | TFT |
Product Description
Tianma TM047NBH03 4.7 inch lcd module touch:
Features:
1)Original guarantee;
2)Competitive prices;
3)Offer 12 months of warranty;
4)Original technology support.
Specification:
| Model | TM047NBH03 |
| Size | 4.7" |
| Resolution (pixel) | 480(RGB) X 272 |
| Active Area(mm) | 103.680 x 58.752 |
| Pixel Pitch (mm) | 0.216 x 0.216 |
| Display Mode | TM with Normally White |
| Uniformity(%) | 80 |
NTSC(%) | 50 |
| Color Depth | 16.7M |
| Viewing Angle (R/L/U/L) | 50/70/70/70 |
| Brightness (cd/m²) | 280 |
| Contrast Ratio | 500:1 |
| Response Time (ms) | 25(on+off) |
| Outline Dimension (mm) | 114.3x72.5x5.0 |
Weight (g) | 76.5 |
| Light Source | LED |
| Temperature Range | operating: -20 to +60°C storage: -30 to +70 °C |
| Humidity | operation: 90 (%RH) storage: 90 (%RH) |
Surface Treatment | Anti-Glare(3H) |
| Electrical Interface | RGB 24 bits |
ROHS Compliance | ROHS Compliance |
Quality promised, 100% original,fast delivery,also enjoy one year guarantee !

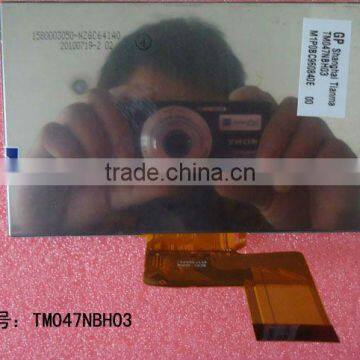

TM047NBH03 4.7 inch lcd module touch real panel show:
LCD Configuration:
How to order:
We are the one of the main agents of AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 2.2"-22" industrial lcds, we provide professional service for all of our customers, and for prices matters, we surely have the priority, and all the products came from original factory directly to save more cost for customers.
Package details:
The reason why you chose Hangzhou Leehon!
* We are one of the main agents for AUO/Tianma/Innolux/Mitsubishi/CMI five brands tft lcd moulds in China from 2002, so from here you can get the most competitive price for real products;
* All the panels are 100% original and brand new, no fake panels exists, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from here you can get more convenient delivery;
* Products are sold to more than 20 countries, regular supplier of Marvell(USA), EUROCOMPOSANT(Franch), Jabert Italia srl(Italy) etc., so from here you can get more stable supplying promise;
* Superior After-Sale service.
More products' info, pls welcome to visit our website and turn to english version.
To get the latest prices, pls feel free to contact me.
