Home > Products > CDMA VoIP gateway > voip gateway wifi router 8 port 32 sim cards gsm/cdma/wcdma gateway

voip gateway wifi router 8 port 32 sim cards gsm/cdma/wcdma gateway

FOB Price

US$ 700 - 920 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	skyline
Model Number	goip8-32		Type	VoIP Gateway

Product Description

Specifications

voip gateway wifi router
1. 8 GSM/CDMA/WCDMA channel.
2. Up to 32 SIM cards.
3. Up to 4 SIM Cards per Channel

voip gateway wifi router 8 port 32 sim cards gsm/cdma/wcdma gateway

Description details list

Call Control Protocols	SIP
Number of Channels	8 channels (32 SIM cards)
Frequency	GSM: 850/900/1800/1900MHz CDMA: 450 or 800/1900MHz WCDMA: 850/900/1800/1900/2100MHz
Voice CODECs	G.729A, G.723.1, G.711 a/ulaw
Network Protocols	IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP
Configuration and Management	- Web-based GUI - Console, telnet command line - Centralized network management
Firmware Update	Local file, FTP, TFTP and HTTP
Message Features	SMS batch receiving/sending, AT command compatible
Telephony Features	- Hot-line call - Dial plan - Speed dial - Phone book - CDR - White list
Telephony Signaling	- DTMF tone detection/generation - DTMF relay: in-band, RFC 2833 and SIP info - Call forward: unconditional, no answer and busy - N-way conferencing - Mobile Number Portability
Voice Quality	- Echo cancellation - Silence suppression (voice activity detection, comfortable noise generation) - Adaptive jitter buffer
Number of Ports	- 1 WAN 10/100Base-T Ethernet (RJ-45 connector) - 1 LAN 10/100Base-T Ethernet (RJ-45 connector) - 1 console (RS-11 connector)
LEDs	1 power and 8 groups of signal strength and running indicator
Power Supply	100-240VAC, 50 - 60 Hz
Dimensions	- Rack mountable 1U chassis (compatible with 19" Rack) - Width: 482mm - Height: 44mm - Depth: 210mm
Weight	2.5kg
Operating Environment	- Operating temperature: 0 - 50ºC - Operating humidity: 10 - 90%
Warranty	12 Months

The gateway is an analog GSM/CDMA/WCDMA Cellular Gateway that helps directly interconnect a SIP-Supporting VoIP network with GSM/CDMA/WCDMA networks.

8 ports with 8 simcard slots :

8 ports with 32 simcard slots :

Functions

Support 8 Channels (Up to 32 SIM cards) 850/900/1800/1900MHz Quad-band GSM, 450MHz or 800/1900MHz Dual-band CDMA,850/900/1800/1900/2100MHz WCDMA Cellular Network

SMS receiving/batch sending, AT command compatible

Support SIP registration and peer-to-peer

encryption: RC4, VOS and Ejoin private etc.

firmware by local or internet

Support Hotline, Phone book, Speed dial, Dial Plan

Update

Field proven compatible with Asterisk-based soft switches

Features

4 SIM cards per channel (SimSwitch version optional

LCR automatically route calls

Single-channel debug for manual calling, directly AT command

Support USSD balance enquiry, billing

Automatically lock/switch SIM card according to its balance, balance alarm

Centralized network management

Caller ID detection and generation

Master and slave SIP server

SIM card hot plug

IMEI modified

Calling Statistics

Applications

Mobility uplink and downlink

Used in conjunction with VOS, VPS, call back or other Asterisk-based soft switches, for accessing VoIP network by SIM cards, LCR select least cost router to reduce the cost of calls.

Mobility extension cdma gateway

Most of mobile carriers offer zero or almost zero tariff for calls within a group of SIM cards. Mobile phones can be considered as" mobile extensions" of the telephone system. Additionally,"Least Cost Router" permits to select the cheapest route for any call.

SMS batch sending

The device support SIP SMS sending and receiving, used with the SIP server as a SMS gateway.

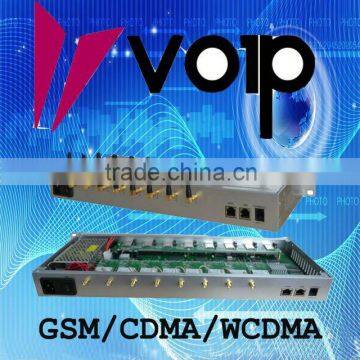

Below is PIC show and our contact details.welcome to keep in touch.

Price and support

we are manufacturer and can give you factory price. we can give you professional free support services with the help of our technology support engineers.
