Bending Machine for Steel/bending Machine for Die Blade/plate Hydraulic Bend Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI /NANJING
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	HSSK	Model Number	HSK160t/3200
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Cnc
Automation	Automatic	Extra Services	End Forming
Certification	ISO 9001:2000	After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

HSSK Hydraulic CNC Press Brake 2 Axis.
Fast clamping tool;
Servomotors.
Delem DA41, DA51 CNC optional.

Product Description

Hydraulic Plate Bending Machine, Sheet Bending Machine

Main Parts	Description
Operating system	Delem DA41
Model	HSK160T/3200mm
Size(LxWxH;mm)	3300x1600x2600
Backgauge	ball screw and linear guide
Foot switch	One set
Retaining device	Special Retaining device
Power	Hydraulic/CNC
Weight	9t
Die clip	Die fast clip
Dies	Standard Upper and Lower Dies
Electric motor	Two set;550W each;3 phase/380V
Motor	11 KW
Valve group	USA VTOZ
Oil Cylinder	TAIFENG Oil Cylider

Performance:

1. Steel-welded construction, vibration to eliminate stress with high strength and good rigidity;

2. Italy ATOS valves or American OMG vales optional;

3. Electric components SCHNEIDER;

4. DZ-UN from Taiwan or Japan NOK sealings for hydraulic system;

5. Hydraulic top-drive, steadiness and reliability;

6. Electrical hydraulic synchronization, high precision;

7. Deflection compensation unit installed on the top die;

8. Emergency buttons for back and front control panel, also food pedal;

9. Standard top tool & bottom die supplied with the machine;

10. Special tools are optional, will be designed according to your needs;

11. Cylinder stroke is adjustable, according to your bending needs.

12. Backgauge with servomotor + ball screws + linear guideway.

13. Laser safety protection is optional;

14. Standard top & bottom tooling;

15. Fast clamping tool;

16. Standard front support.

17. Delem DA41, DA52, DA69W CNC etc optional.

product pictures

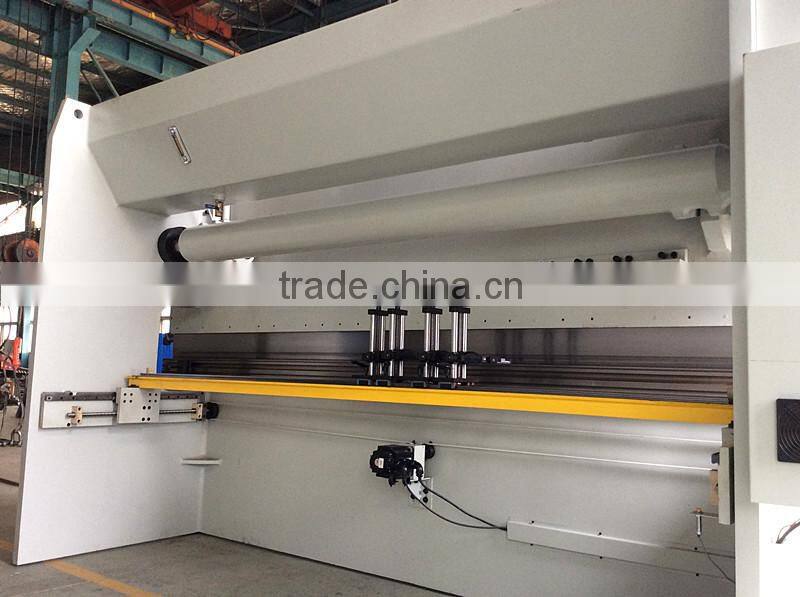

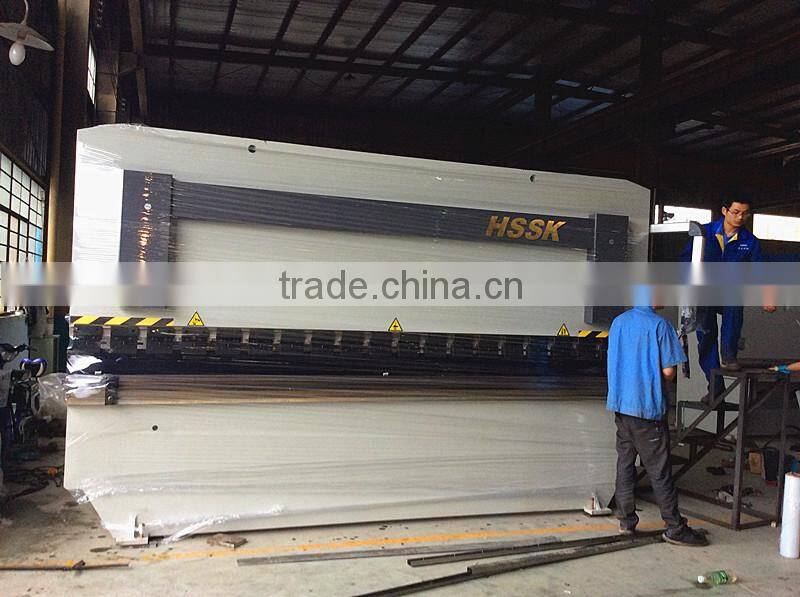

Detailed Images

Contact Us

Nanjing Huangshi Machine Tool Manufacturing Co., Ltd.: Contact nameqin xu
Chat Now; Phone86-025-57269008; AddressMingjue industrial park,lishui district,nanjing city., Nanjing, Jiangsu

*Email
Please enter Your valid email address.
*To

qin xu
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

Guillotine shear	V grooving machine	upper roller universal metal rolling machine	shearing machine
rolling machine	New Products	hydraulic press brake	hydraulic bending machine
guillotine shearing machine	3 roller symmetrical rolling machine	cutting machine	cnc slotting machine
cnc press brake	cnc guillotine shearing machine	cnc bending machine	all item
4 roller plate roll bending machine

a.	Delivery Time	15-60 days after receiving deposit or L/C.
b.	Payment Terms	30% deposit in advance 70% before shipment, or 100% L/C at sight.
c.	Guarantee	14 months after shipment.
d.	Service	Return air ticket and economic food and hotel should be supplied by customer when needs training or installing.
