QC11Y-6*3200 Hydraulic Guillotine Shear
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Cnc Estun Hydraulic Guillotine Metal Plate Shear Machine
-
QC11K 8x2500 CE Approved Hydraulic Shearing Machine, Automatic Cnc Hydraulic Guillotine Shearing Machine
-
Hydraulic Guillotine Steel Shearing Machine
-
Guillotine Shearing Machine 6x4000mm , Sheets Aluminum Shears With NC E21 Controller
-
Guillotine Shearing Machine 6 x 4000mm for Estun E21s NC Control System
-
Bending Machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | HSSK | Model Number | QC11Y-6*3200 | |
| Voltage | 380V | Rated Power | 7.5KW | |
| Dimension(L*W*H) | 4800*1950*2350 | Weight | 5.2t | |
| Certification | IOS9001 | Warranty | 1 year, 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
QC11K SERIES HYDRAULIC GUILLOTINE (CNC) SHEARS MACHINE
1. CE standard;
2. SIEMENS electrics.
3. linear guideway and ball screws
4.Optional NC/CNC
1) The machine employs hydraulically-driven swing beam, the steel plate welded structure,
and accumulator -based pullback cylinder with steady and reliable operation.
2) Indicator-based adjustment of gap of blade is convenient and fast. 3) The machine is equipped with lighting alignment device, and uses stepless control
for the stroke of up tool carrier.
4) The machine uses protection fence for safe operation. 5) Digital display device for size of back gauge and shearing times available.
| TECHNICAL FEATURES | ||
| 1 | Type | cnc Guillotine shearing machine |
| 2 | Cutting length | 3200mm |
| 3 | Cutting thickness | 6mm(mild steel at 450MPa) |
| 4 | Shear angle | 0.5-2 degree adjusted |
| 5 | Number of stroke per minute | 15 |
| 6 | Throat depth | 100mm |
| 7 | Stroke back gauge | 750mm |
| 8 | Main motor | 7.5kw |
| 9 | Main Electric elements in Cabinet | Schneider |
| 10 | Counter on back gauge | Delem DAC360, made in HollandDAC310/E21S |
| 11 | control axis | X + 3 |
| 12 | control details | backgauge,stroke, blades clearance or pressure |
| 13 | G.W. | 5800 KGS |
| 14 | before packing size(mm) | 3600 x 1750 x 2100mm |
1. Warranty: 14 months after delivery the goods.
2. Payment: 30% down payment and 70% paid after receiving the copy of the documents.
3. Delivery: 30 days after receiving 30% down payment.

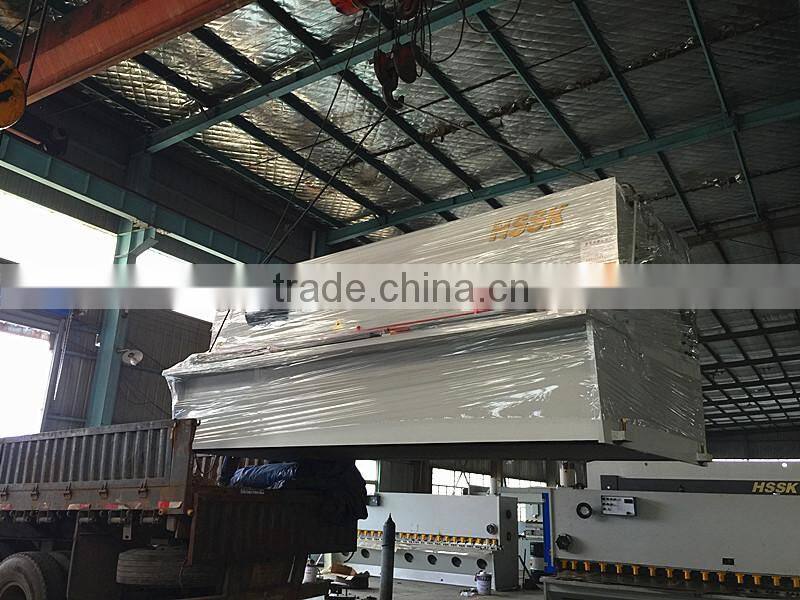

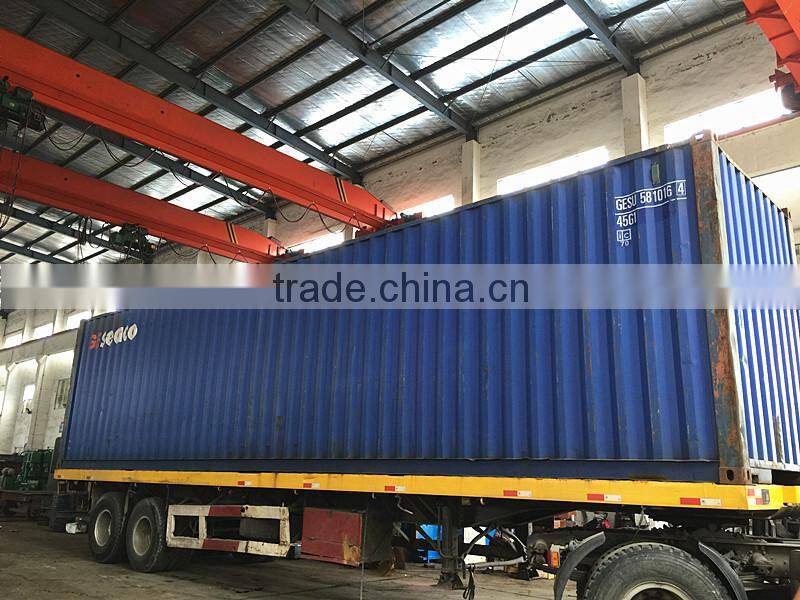

4. Loading: Plastic cover coat, through containers
5. Technique support and service: support twice operating training, first one is at my factory during the processing time, second one at the buyer’s factory during the re-installation/testing period. We will send our engineers go to buyer’s factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
