Product Details
| Place of Origin | Taiwan, China | Brand Name | AUO | |
| Model Number | G057VTN01.0 | Type | TFT |
Product Description

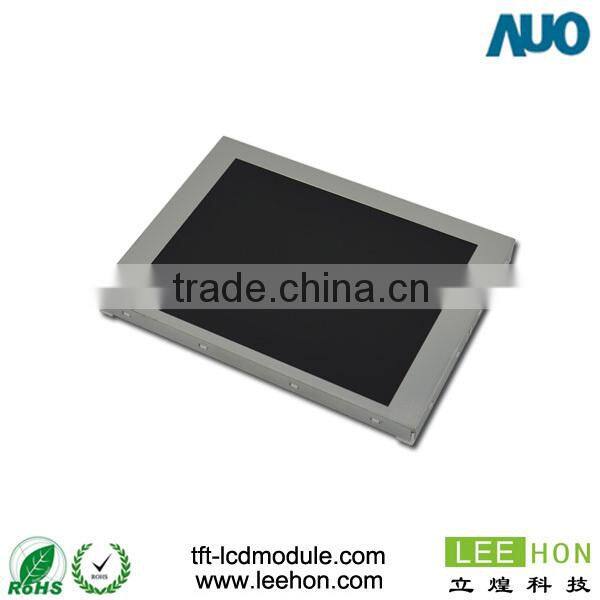

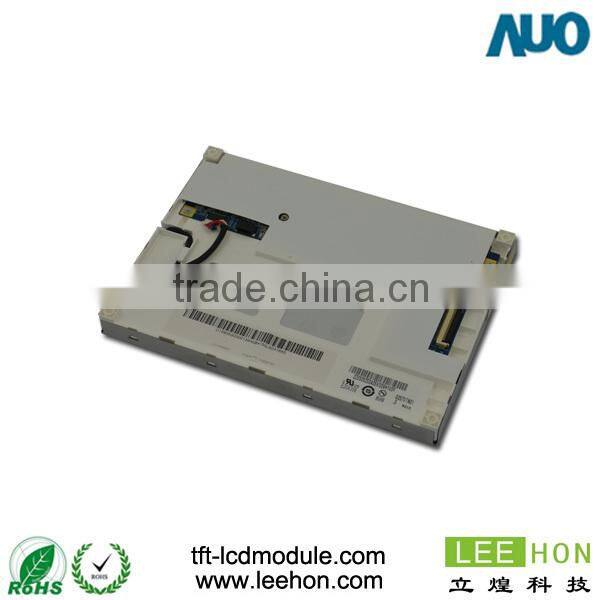

wide view angle AUO 5.7 lcd module with wide temperature -30~85 G057VTN01.0
| Item | Specification |
| Module name | G057VTN01.0 |
| Type | a-Si TFT-LCD |
| Size | 5.7 inch |
| Brand | AUO |
| Resolution | 640X480 |
| View Angle | 80/80/70/70(Deg) R/L/U/D |
| Pixel Pitch | 0.18×0.18 mm |
| Active Area | 115.2×86.4mm |
| Display Mode | TN, Normally White |
| Surface Treatment | Anti-glare, Hardness (3H) |
| Brightness | 530 cd/m2 |
| Contrast Ratio | 800:1 |
| Support Color | 262 K colors |
| Backlight | WLED |
| Supply voltage(V) | 3.3 V (Typ.) |
| Power Consumption | 3.62V (Typ.) |
| Response Time | 15/10 ms |
| Backlight Time | 50kHrs (Min.) |
| Operate Temperature | -30-85(°C) |
| Storage Temperature | -30-85(°C) |
| Electrical Interface | CMOS 6-bit Parallel RGB |
| Outline Dimention | 144.0(H)*104.6(V)*12.3(D) (typ.) |
| Pixel Arrangement | R.G..B. Vertical Stripe |
| Product Features | -- WLED backlight & Backlight replaceable & LED driver integrated; |
| -- Wide view angle; | |
| -- Highly vibration reliability | |
| -- High brightness. | |
| Application | Special for industrial grade use |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
