3 Channels DMX-512 Decoder Controller for RGB LED Lamp Light Multi-functional Full-color Controller
- 5000 Piece / Pieces per Month
- Zhuhai
- Credit Card
You May Like
-
Fashion design 4 channel wall mounted single color led touch dimmer
-
Bincolor P2 touch CT LED dimmer color temperature panel controller dc12V-24V
-
Bincolor P3 LED RGB touch dimmer wall mounted single-zone rgb controller
-
Hot selling T2+R3 Mini CT and dimming LED light controller with touch remote control
-
Bincolor T3 R3 Mini led rgb controller touch control remote control
-
T5+R3 Mini led CT dimmer CW NW WW touch remote control CT controller DC12V-24V
Product Details
| Brand Name | Bincolor | Model Number | BC-853 |
Product Description
3 Channels DMX-512 Decoder Controller for RGB LED Lamp Light Multi-functional Full-color Controller
Introduction:
Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
Specifictaion :
Model | 3CH Decoder |
Input voltage | DC12V-DC24V |
Max load current | 6A×3CH |
Max output power | 72W×3CH(12V)/ 144W×3CH(24V) |
Grey Scale | 4096 levels×3 |
Input Signal | DMX512/1990 |
Output Signal | Constant Voltage PWM×3 |
Decode Channel | 3CH |
DMX512 socket | XLR-3R port/ RJ45 port/terminal block |
Dimension | L157×W65×H40(mm) |
Weight (G.W) | 450g |
Feature :
1. Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
4. Support master mode or slave mode;
5. 8 color changing modes and 10 speed scales in master mode .
6. Indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8.Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
9 .Multiple DMX512 signal interface.

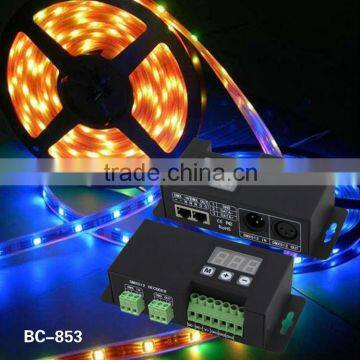

Product show:
Wiring diagram :
1)wiring diagram of Slave Mode:
