dmx512 decoder 4 channel BC-854
- Zhuhai
- Credit Card PayPal
You May Like
-
DMX 512 DIY multi changing patterns decorative light/ LED controller with LCD screen
-
49 changing patterns DMX 512 DIY programming light controller with LCD screen
-
BC-310RF 2 channel CT dimmer for led strip 12v 24v color temperature led strip controller
-
Bincolor BC-322-DMX Timer dimmer DMX LED controller DC12V-36V Aquarium & plant light controller
-
Bincolor P5 AC85-265V single color multizone led dim touch panel dmx dimmer controller
-
Bincolor 33 modes dmx 512 controller manual
Product Details
| Place of Origin | Guangdong, China | Brand Name | Bincolor | |
| Model Number | BC-854 | Type | Manual Switch | |
| Max. Load Power | / | Voltage | Other, DC 12V-24V |
Product Description

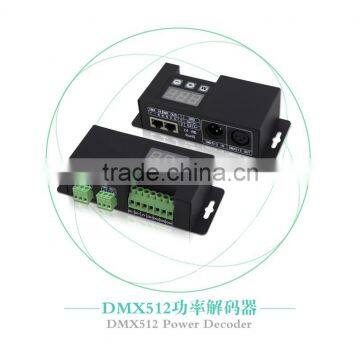

dmx512 decoder 4 channel BC-854
Introduction:
Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~4 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
Product parameter:
Model | BC-854 |
Input voltage | DC12V-DC24V |
Max load current | RGB:4A×3CH W:12A×1CH |
Max output power | RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V) |
Grey Scale | 4096 levels×4 |
Input Signal | DMX512/1990 |
Output Signal | Constant Voltage PWM×4 |
Decode Channel | 4CH |
DMX512 socket | XLR-3R port/ RJ45 port/terminal block |
Dimension | L157×W65×H40(mm) |
Weight (G.W) | 450g |
Feature function:
1. Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
4. Support master mode or slave mode;
5. 8 color changing modes and 10 speed scales in master mode .
6. Indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8.Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
9 .Multiple DMX512 signal interface.
Dimension:
Ciruit diagram:
1 Work as master mode:
2. Work as slave mode :
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
All the products will process aging test before ship out. Quality guarantee.
