BC-802-6803 DC5V-24V LPD6803 DMX SPI Signal Decoder Compatible with LPD1101, D705, UCS6909, UCS6912

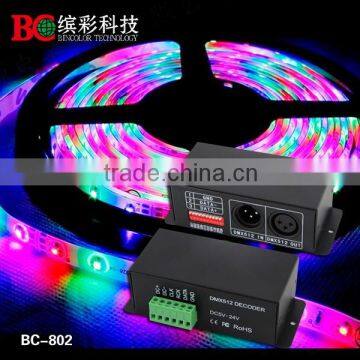

 Product picture

Product Specification:

Product Features:

• In put standard DMX512 protocol,Address can be set by DIP
• Automatically adapt input voltage DC12V-24V
• Self-Changing Mode exist
• Output LPD6803 control Signal
• Power loss momery function
• Over current protection and short circuit protection

Product Diagram :

  DMX PORT

OUTPUT PORT

Port definition:

Warning: the power cable can’t connect the data port, otherwise it will damage the decoder!

Typical Wiring Schematics:

After inspection the goods are packed in white inner box and then carefully packed in cartons.
