Home > Products > LED Rigid Bar Light > Waterproof RGB LED Bar Light 12v 16watt 100cm

Waterproof RGB LED Bar Light 12v 16watt 100cm

FOB Price

USD $6 - $6.5 / Meter

1 Meter(Min.Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	5050	Type	LED Bar Lights
Input Voltage(V)	12	Lamp Power	16
Lamp Luminous Flux(lm)	1584	Working Temperature(℃)	-10, +45
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
Certification	CE	Emitting Color	Changeable
Place of Origin	Guangdong, China	Brand Name	STAR
Model Number	RB50RGBD20

Product Description

Specifications

5050 72leds/m,
Voltage:12/24V,
Power:16w/m
1584Lumen
2-3years

12v/24v Aluminum profile LED Rigid Bar 5050 72led/m 16watt IP33 non waterproof for under cabinet display illumination

ALU STRIPS RGB SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps.

1.Supply connectors are not IP54
2.dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by STARRGB MULTI power supplies/controller

Types of waterproof casing are as follows for your choice:

IP20	Non Waterproof,Aluminum profile with PCB with LEDs
IP65	Drip silicon waterproof for outdoor using
IP33	non waterproof ,aluminum profile with plastic cover with leds

1)Excellent quality, reasonable price

2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving

Technical Data:

IP classification	IP20 for indoor using
Power source	DC12V
Housing	Plastic clear cover
Electrical connection	1x cable with 4-PIN connector male 1x cable with 4-PIN connector female
Maximum quantity per power input	8meter
Operating temperature range	–10° C till +45° C

Photometric Data

LED type	SMD RGB 3-in-1 LEDs
Luminous flux	red 40 Lumen per m green 240 Lumen per m blue 50 Lumen per m r+g+b (white) 330 Lumen per m
Wave length	red 623 nm green 528 nm blue 465 nm
Beam angle	120°

Photos:

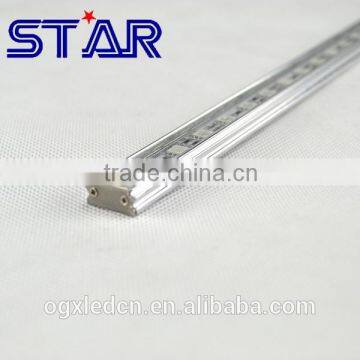

RGB Color LED Rigid bar light 12v with clear cover:

24keys RGB IR Remote controller

RGB LED Rigid bar RGB plug/cable connectors 4 square pin plug both ends

Single color LED Rigid bar light 12v with milky cover photos:
