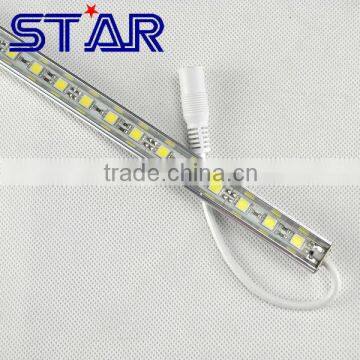

SMD amber LED Light Bar

FOB Price

USD $3 - $4 / Meter

5 Meters(Min.Order)

Supply Ability 10000000 Meter / Meters per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	5050	Type	LED Bar Lights
Input Voltage(V)	12	Lamp Power	16
Color Temperature(CCT)	6000-13000	Working Temperature(℃)	-10, +45
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
Certification	CE	Emitting Color	Other, White, Various single color,RGB
Place of Origin	Guangdong, China	Brand Name	3528/5050
Model Number	3528/5050

Product Description

Specifications

SMD 5050 IP LED Light Bar
Input Voltage: DC12V/DC24V
Certification:CE/RoHS
Waterproof: IP 68
MOQ:1 piece

SMD amber LED Light Bar IP68 Waterproof SMD5050 72led 12v White color for underwater

ALU STRIPS RGB SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps.

1.Supply connectors are not IP54
2.dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by STARRGB MULTI power supplies/controller

Category	Length	Unit	Color	Accessories	Voltage	LED Q.ty	Wattage	Lumen	LED Chip	Outlet	Equiped with Aluminun profile shape
5730	100	cm	White	metal clamps	12V/24V	72	18watt	45-50	TAIWAN	red/black15cm	V and U
5730	100	cm	White	metal clamps	12V/24V	90	20watt	45-50	TAIWAN	red/black15cm	V and U
5050	100	cm	White	metal clamps	12V/24V	72	16watt	20-22	TAIWAN	red/black15cm	V and U
5050	50	cm	White	metal clamps	12V/24V	36	8watt	20-22	TAIWAN	red/black15cm	V and U
5050	120	cm	White	metal clamps	12V/24V	84	18watt	20-22	TAIWAN	red/black15cm	V and U
5050	150	cm	White	metal clamps	12V/24V	90	22watt	20-22	TAIWAN	red/black15cm	V and U
5050	100	cm	White	metal clamps	12V/24V	60	7.2watt	20-22	TAIWAN	red/black15cm	V and U
5050	50	cm	White	metal clamps	12V/24V	30	3.6watt	20-22	TAIWAN	red/black15cm	V and U
2835	100	cm	White	metal clamps	12V/24V	90	9watt	10-12	TAIWAN	red/black15cm	V and U
2835	50	cm	White	metal clamps	12V/24V	45	4.5watt	10-12	TAIWAN	red/black15cm	V and U
2835	100	cm	White	metal clamps	12V/24V	90	16watt	20-22	TAIWAN	red/black15cm	V and U
2835	50	cm	White	metal clamps	12V/24V	45	8watt	20-22	TAIWAN	red/black15cm	V and U

Types of waterproof casing are as follows for your choice:

IP20	Non Waterproof,Aluminum profile with PCB with LEDs
IP65	Drip silicon waterproof for outdoor using
IP33	non waterproof ,aluminum profile with plastic cover with leds

1)Excellent quality, reasonable price

2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving

RGB LED Rigid bar Technical Data:

IP classification	IP20 for indoor using
Power source	DC12V
Housing	Plastic clear cover
Electrical connection	1x cable with 4-PIN connector male 1x cable with 4-PIN connector female
Maximum quantity per power input	8meter
Operating temperature range	–10° C till +45° C

RGB LED Rigid Bar Photometric Data

LED type	SMD RGB 3-in-1 LEDs
Luminous flux	red 40 Lumen per m green 240 Lumen per m blue 50 Lumen per m r+g+b (white) 330 Lumen per m
Wave length	red 623 nm green 528 nm blue 465 nm
Beam angle	120°
