Home > Products > fluided bed dryer > XF Series Horizontal Fluidizing Dryer/drying Healthcare Food Machine
XF Series Horizontal Fluidizing Dryer/drying Healthcare Food Machine
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Product Type | Other, all kinds of materials | |
| Place of Origin | Jiangsu, China | Brand Name | YIBU | |
| Model Number | XF | Voltage | accoding to customer needs | |
| Power(W) | 30KW | Dimension(L*W*H) | 1.2*0.6*0.8m | |
| Weight | 2.4T | Certification | CE:UL:FAD:ISO14001:9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wooden case
Product Description

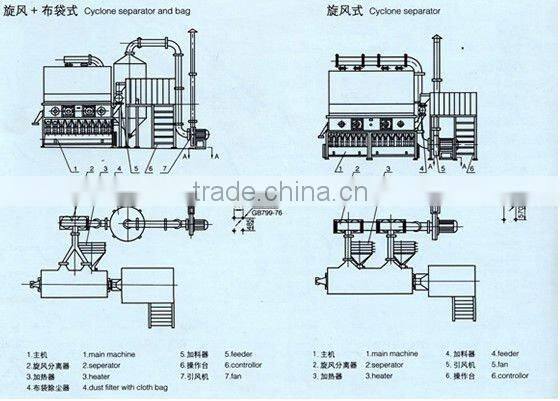

Fluidizing dryer is also called fluid bed. Through operation and improvement over 30 years, it has play an active part in the fields of pharmaceutical, chemical, foodstuff, gain and so on industries. It consists of air filter, fluid bed, cyclone separator, dust collector, high-speed centrifugal fan, control cabinet and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust collector both or one of them. In general, cyclone separator can be selected if the raw material is larger and the dust collector may be selected if the raw material is light. Moreover, there is pneumatic feeding device for your selection. There are two kinds of operation for this machine, continuous and intermittent type.
The clean and hot air enters into fluid bed through distributor of valve plate. The wet material is fed from the feeder forms the fluid state by hot air. Because of the wide contact between hot air and raw materials, the time of drying is short. If use continuous type, the material enters from the front of bed, fluidized in bed for several minutes, and float another side of bed. The machine’ works in negative pressure.
Drying process of medicines, chemical raw material, foodstuff, grain processing, feed and so on. For example, raw medicine, tablet, Chinese medicine, foodstuff of health protection, drinks, feed, resin, citric acid and other powders. The suitable diameter of raw material is normally 0.1-0.6mm. The most applicable diameter of raw material will be 0.5-3mm.

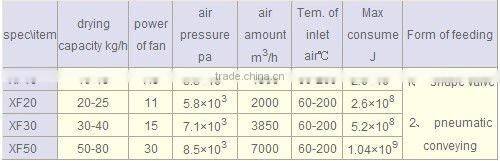

Notes: the drying capacity is measured based on the primary moisture of crystal of plum is 20% and its final moisture is 5% and the temperature of air inlet is 130 °C . The drying capacity of other raw materials will be based on the practical drying condition. When choose models, please note that: Model A should be matched with cyclone separator and Model B with inside bag dust collector and Model C with cyclone separator and bag dust collector.
Explanation to installation
All equipment should be horizontal and fixed with foundation screw on the ground. All parts should be sealed well.
The fan may be installed outdoor or in the special noise free room. The plan can be adjusted slightly in accordance with the real conditions.
Yunnan Baiyao Group
Zhejiang Tongxiang Tianyi Food Co.,Ltd
Anhui Renji Pharmceutical Co.,Ltd
Guangzhou Xingqun Pharmceutical Co.,Ltd
Hebei Baoding Weibao Food Co.,Ltd
Bozhou Baiyunshan Pharmceutical Co.,Ltd
Jiangxi Qingfeng Pharmceutical Co.,Ltd
Guangxi Wantong Pharmceutical Co.,Ltd
Shanghai AnErXin Chemical Co.,Ltd
Shantou Fuwei Food Co.,Ltd
Company Profile
Changzhou Yibu Drying Equipment Co., Ltd. is a leading manufacturer of drying, mixing, granulating and grinding equipment in mainland China. Our company covers an area of more than 50,000 square meters, and has over 180 sets of special processing equipment and powerful technical force. We are a specially-designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation. Especially, we are ISO9001 and ISO14001 certified. The founder of our company, Mr. Zha Guocai has devoted himself in the research, manufacture, production and business of drying equipment for over thirty years. Our company pays much attention to science and technology renovation and has cooperated with many institutes located in Shanghai, Wuhan and Chongqing, such as the Ministry of Chemical Industry and Tsinghua University. Therefore we can launch 3 to 5 new varieties into the market every year. In 1998, through approval of state relevant departments, our company set up China Research Center of Drying and Granulating that can research new process, develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We also have many testing machines in our lab for clients to make trials. Currently, our products have been sold to nearly 50 countries and regions around the world, including the USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Malaysia, Philippines, Korea, Japan, Taiwan, and Hong Kong. If high quality drying, blending, granulating and grinding equipment and professional services and technical support are what you are looking for, please do not hesitate to contact us. You are welcome to come to our factory to make investigation and trials.
