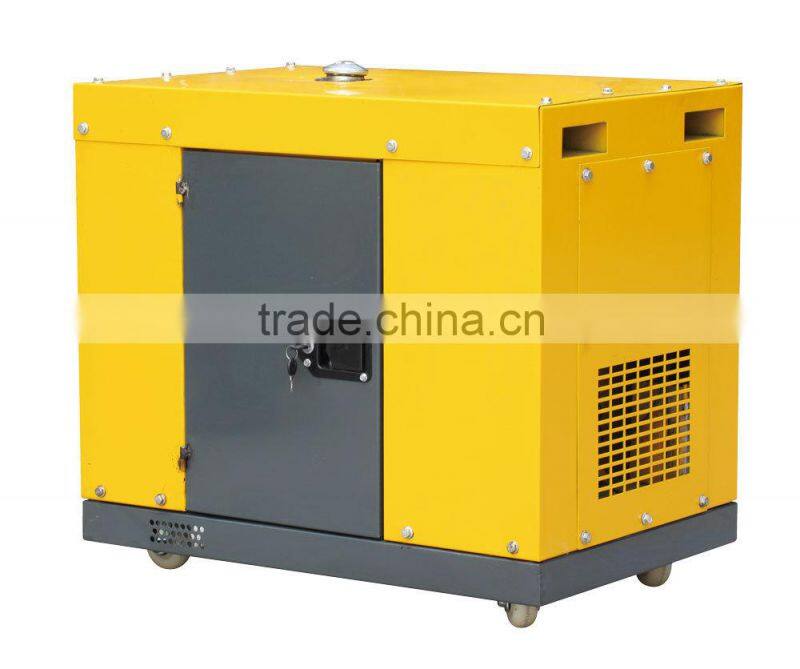

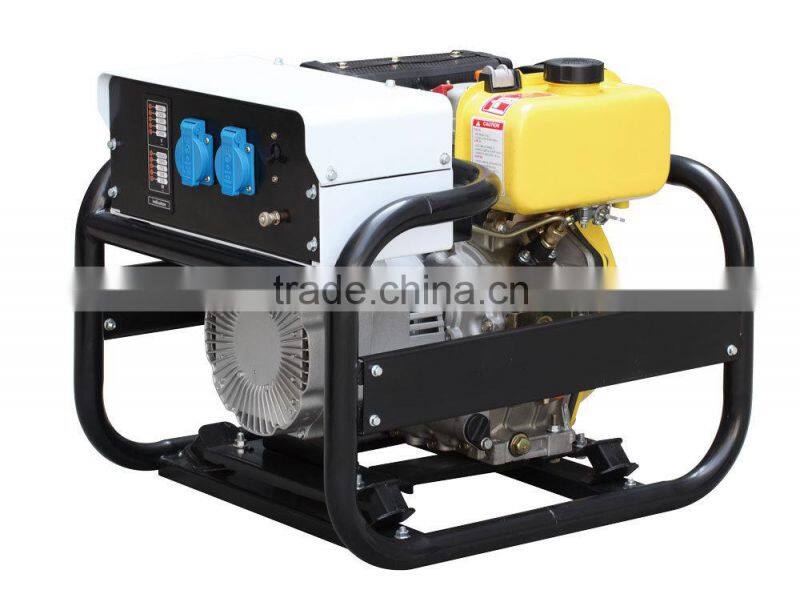

Inverter Generator Powered by Diesel Engine
- Fuzhou
- T/T
You May Like
Product Description
Advantages
PERMANENT MAGNETIC ALTERNATOR:We choose permanent magnetic alternator which is brushless with inverter electronic control system.
DIGITAL INVERTER SYSTEM: Pure sine wave and THD less than 1%.High voltage multiphase AC power generated by the alternator and the AC power is then converted to DC. Finally the DC power is converted back to AC by the inverter unit. The inverter unit also smoothes and cleans the power.
HIGH QUALITY POWER OUTPUT: A sinewave inverter that guarantees commercial-quality electricity – making it ideal for use with frequency sensitive electrical equipment such as computers, TV sets, air condition and so on.
HIGH FUEL EFFICIENCY: As coupled with the inovation of alternator,this digital inverter generator can save 20% fuel consumption than other home use genset.
POWERFUL 4-STROKE OHV GASOLINE ENGINE: Compact size, high power, simple mechanism and easy starting.
| Genset | |||||
| Model Name | W2600IC/S | W5600IC/S | W5900IC/S | W9900IC/S | |
| Rated AC output | 1.8KW | 3KW | 5KW | 10KW | |
| Rated AC frequency | 50/60HZ | ||||
| Rated AC voltage | 230V | ||||
| Rated AC current | 7.8A | 13A | 21.7A | 43.5 | |
| Engine | |||||
| Engine | 170F | 178F | 188F | HDA20F | |
| Engine Type | 4-stroke, single cylinder, Direct injection,air cooled,diesel | ||||
| Displacement | 211ml | 296ml | 438ml | 954ml | |
| Rated rev | 3000r/min | ||||
| Start system | Recoil hand-operated, electric system | ||||
| Engine rated output | 2.3KW | 3.5KW | 6.5KW | 13.5KW | |
| Fuel tank capacity | 5L | 14L | 21L | 26L | |
| Fuel comsumption | ≤285g/kw.h | ≤283g/kw.h | ≤270g/kw.h | ≤255g/kw.h | |
| Lube Oil capacity | 0.75L | 1.1L | 1.65L | 3.2L | |
| Alternator | |||||
| Alternator | Werner permanent magnetic alternator,100%copper,brushless | ||||
| The electronic control | digital inverter | ||||
| DC output | 12V 5A | ||||
| output waveform | pure sine wave | ||||
| output efficiency | ≥90% | ||||
| Voltage rate | ±2% | ||||
| Total Harmonic Distortion | ≤1.5% | ||||
| Phase | single phase | ||||
| Dimension(mm) | 442×382×440 | 477×440×470 | 585×568×568 | 920*690*790 | |
| Net weight | 19KG | 34.3KG | 61.5KG | 155KG | |
100% copper winding
Digital Inverter
Pure sine wave
