Micro 12V dc Generator Permanent Magnet

FOB Price

US$ 230 - 310 / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Easy to operate, suitable for a large range of application, ideal for home and business.

2. Rare earth permanent magnetic digital inverter alternator to insure high efficiency.

3.Low noise and easy operation,low fuel consumption

4..Compact structure and light weight

Model Name	W26A
Engine	156F
Engine Type	4-stroke, OHV, single cylinder, cylinder inclined, air cooled,petrol
Displacement	98.5ml
Compression	8.0:1
Rated rev	3600r/min
Ignition system	T.C.I
Start system	Recoil hand-operated, electric system
Engine rated output	1500W
Fuel tank capacity	5L
Fuel comsumption	≤336g/kw.h
Lube Oil capacity	0.4L
Transient Max current	110A (67A continuous 15min)
Alternator	Werner permanent magnetic alternator,100%copper,brushless,3500rpm-3750rpm
Rated DC voltage	12V
Rated DC current	80A
output waveform	DC
output efficiency	90%
Ripple voltage	≤3mv
Dimension	420×455×370 (mm)
Net weight	19KG

100% copper winding

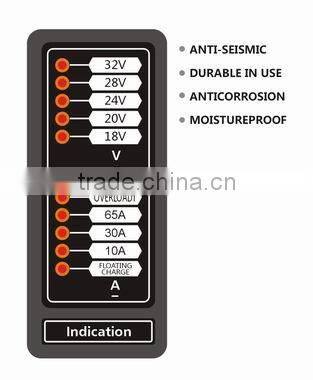

LED Indication

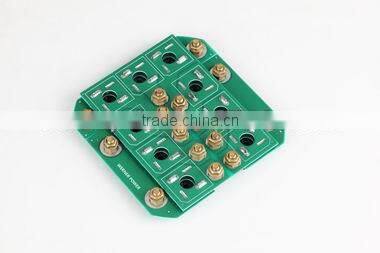

Rectifier Modular

Certifications

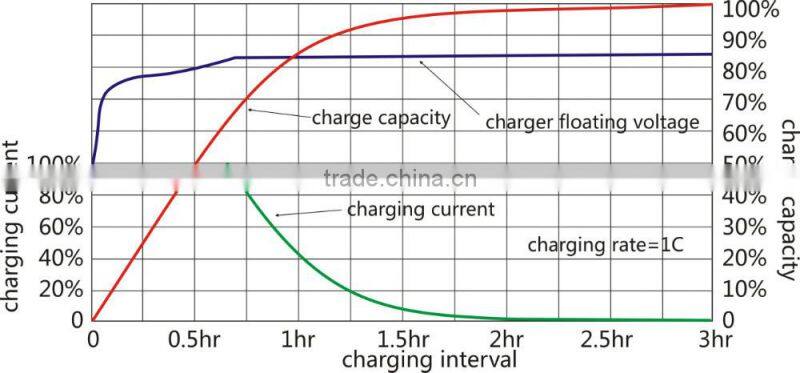

Charging Curve
