Home > Products > Drying oven > Apple Chips Mesh-belt Dryer for Foodstuff Industry
Apple Chips Mesh-belt Dryer for Foodstuff Industry
- Shanghai
- T/T
You May Like
-
Grain Mesh-belt Dryer for Foodstuff Industry
-
Watering Vegetable for Hot Air Circulation Drying Oven
-
CT-C Series Hot Air Circulation Drying Oven(machine)
-
Hot Air Circulating Drying Oven for Konjak
-
CT-C Series Hot Air Circulating Drying Oven for Blueberry
-
Energy Saving CE Certificate CT-C Hot Air Circulating Drying Oven
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YIBU | |
| Model Number | DW | Application | Granules | |
| Type | Drying Machine | After-sales Service Provided | Engineers available to service machinery overseas |
wooden case, plastics or others
Product Description

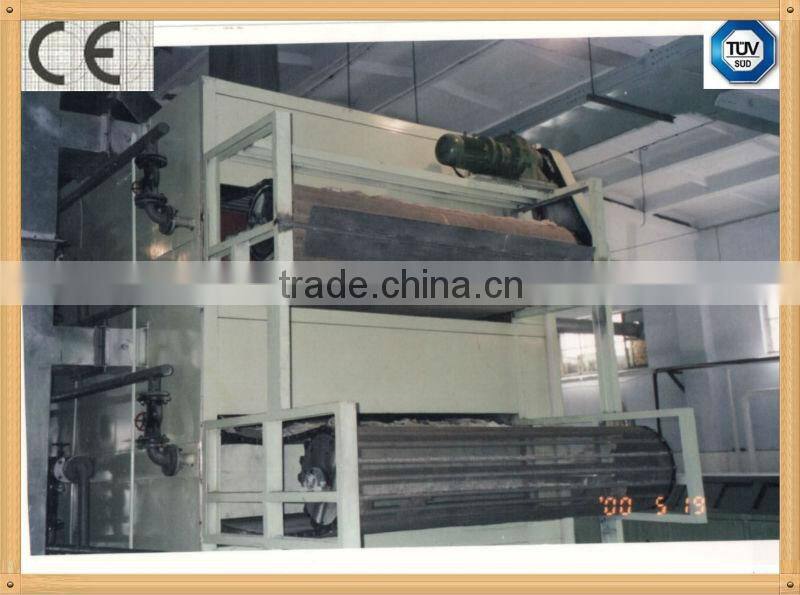

DW Mesh-Belt Drye For hawthorn for foodstuff industry for drying apple
Principle
For DW type air jet mesh-belt dryer, the hot air flows. Through narrow seams or holes, downward or upward to the materials on the transmission belt. Because the spray air speed is up to more than 15m/s, the heat transmitting film is very thin, the heat transmitting co-efficiency is big and the drying speed is fast. When the machine is used for the air tight grains, the above air jet flow will return to the top and the bottom flow will return to the bottom, take part in circulation. For some materials, the air flows will pass through the inside of the materials, the heat source can be steam, electricity, thermal furnaces and combustion oil flue and etc.
Applications
DW type spray air mesh-belt drying machine is mainly used for drying the fiber plate, plaster plate, carton board, pulp film, coated cloth and etc.. The machine is also suitable for drying the sheet state material and some special materials.
Technical Parameters
| spec | unit | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 |
| belt width | m | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| drying section length | m | 8 | 10 | 8 | 10 | 8 | 10 |
| thickness of the material | mm | 10-80 | |||||
| operation temperature | °C | 60-130 | |||||
| steam Pressure | Mpa | 0.2-0.8 | |||||
| steam consumption capacity | Kgsteam/kgH2O | 2.2-2.5 | |||||
| drying strength | KgH2O/h | 6-20 | |||||
| total power of fan | Kw | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 |
| total power of machine | KW | 6.25 | 8.25 | 8.25 | 11.75 | 11.75 | 15.75 |
Company Profile
Changzhou Yibu Drying Equipment Co., Ltd. is a leading manufacturer of drying, mixing, granulating and grinding equipment in mainland China. Our company covers an area of more than 50,000 square meters, and has over 180 sets of special processing equipment and powerful technical force. We are a specially-designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation. Especially, we are ISO9001 and ISO14001 certified. The founder of our company, Mr. Zha Guocai has devoted himself in the research, manufacture, production and business of drying equipment for over thirty years. Our company pays much attention to science and technology renovation and has cooperated with many institutes located in Shanghai, Wuhan and Chongqing, such as the Ministry of Chemical Industry and Tsinghua University. Therefore we can launch 3 to 5 new varieties into the market every year. In 1998, through approval of state relevant departments, our company set up China Research Center of Drying and Granulating that can research new process, develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We also have many testing machines in our lab for clients to make trials. Currently, our products have been sold to nearly 50 countries and regions around the world, including the USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Malaysia, Philippines, Korea, Japan, Taiwan, and Hong Kong. If high quality drying, blending, granulating and grinding equipment and professional services and technical support are what you are looking for, please do not hesitate to contact us. You are welcome to come to our factory to make investigation and trials.
