Home > Products > Powder Equipment > Series CX Vertical Dry Powder Iron Separators

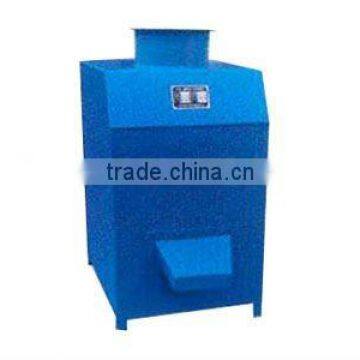

Series CX Vertical Dry Powder Iron Separators
- 30 Set / Sets per Month
- Qingdao /Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Magnetic Separator | |
| Place of Origin | Shandong, China | Brand Name | HUATE MAGNET | |
| Model Number | CX |
Product Description
Specifications
It is specialized in eliminating the waste iron form the dry powder continuously.It is specialized in eliminating the waste iron form the dry powder continuously. Inside using the rare earth material to generate high gradient magnetic field outside the stainless steel with powerful iron-attraction. As the material falls into the magnetic roller and then rotates with the roller. The ferromagnetism material falls into the iron-collecting box under the gravity force as the magnetic force disappears. This equipment can match with the product with the characteristic of work continuously , iron-cleaning automatically. The inner employing the unique upright structure that helps the material avoid pasting with the iron. It is widely arranged in the lines such as chemical industry, ceramics, plastics, nonmetal mineral and so on.
>
| Model | Roller diameter mm | RollerLength mm | Magnetic induction density ≥GS | Rotary speed of roller r/min | Granularity ≤mm | MaximumProcessingCapacity ≤T/h | Vibrating frequency kw | Weight Kg | Appearance size mm | ||
| L | W | H | |||||||||
| CX-1 | 320 | 300 | 3500 | 35 | 5 | 1 | 1.1 | 170 | 600 | 750 | 1250 |
| CX-2 | 320 | 500 | 3800 | 2 | 1.1 | 350 | 600 | 750 | 1400 | ||
| CX-3 | 450 | 650 | 4000 | 3 | 1.5 | 660 | 1100 | 1000 | 1550 | ||
| CX-4 | 550 | 800 | 4200 | 4 | 1.5 | 980 | 1350 | 1400 | 1700 | ||
| CX-5 | 650 | 900 | 4500 | 5 | 2.2 | 1250 | 1600 | 1650 | 1870 | ||
