Home > Products > dryer > DW Series Mesh Belt Dryer for Synthetic Rubber

DW Series Mesh Belt Dryer for Synthetic Rubber

FOB Price

US$ 30,000 - 90,000 / Set

1 Set(Min. Order)

Port ShangHai Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	YI BU
Model Number	DW

Packaging Details

export wooden cases

Product Description

DW Mesh-Belt Dryer for vegetable and fruits

This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.

(Just for your reference)
The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.

De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.

spec	DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10
unit number	4	6	4	6	4	6
belt Width m	1.2	1.2	1.6	1.6	2	2
drying section Length m	8	10	8	10	8	10
Thickness of the material mm	10-80
Temperature °C	60-130
steam Pressure Mpa	0.2-0.8
steam Consumption Kgsteam/KgH₂O	2.2-2.5
drying strength KgH₂O/h	6-20kg/m².h
total power of blower Kw	3.3	4.4	6.6	8.8	12	16
total power of equipment KW	4.05	5.15	7.35	9.55	13.1	17.1

Specialized machine for vegetable

	unit	three units series specialized machine for vegetable		five layers specialized machine for vegetable(Frame type)
model		DWP-2-10-3	DWF-2-10-3	DW5-3-12
effective belt width	m	2	2	3
effective belt length	m/unit	10	10	12
tandemquantity		3	3
layers				5
vegetable capacity	kg/h	600	720	2000
evaporate strength	kg/h	400-510	480-640	1440-1800
consumption of steam	Kgsteam/KgH₂O	2.2-2.5	2.2-2.5	2.2-2.4
heat radiation area	m²	900	1440	2600
total power of the machine	kw	70	52	150
overall size	m	33.2×2.58×2.8	33.2×2.27×2.85	15.3×4.3×8.5
heat source type		steam, theermal conductivity oil, hot air furnace, electric

Specialized machine for feed (frame type)

Specialized machine for feed (frame type)
model	unit	DWZ-3×12
effective belt width	m	3
effective belt length	m/unit	12
using temperature	°C	80-130
pressure of steam	Mpa	0.4-0.8
drying time	min	35-50
thickness of material	cm	5-8
drying strength	kg/h	6-20
consumption of steam	Kgsteam/KgH₂O	2-2.4
total power of the machine	kw	76
overall size	m	15.1×4.3×3.4

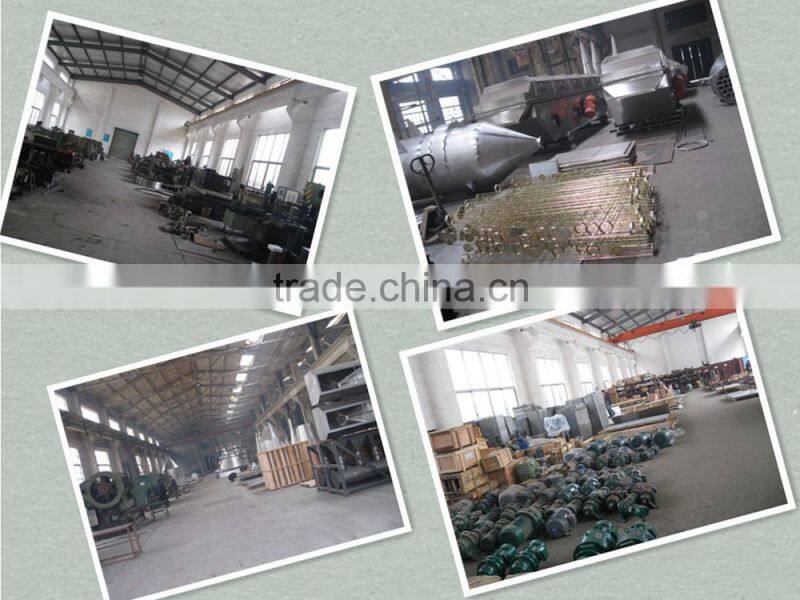

workshops:

Company Profile

Changzhou Yibu Drying Equipment Co., Ltd.

Changzhou Yibu Drying Equipment Co., Ltd. is a leading manufacturer of drying, mixing, granulating and grinding equipment in mainland China. Our company covers an area of more than 50,000 square meters, and has over 180 sets of special processing equipment and powerful technical force. We are a specially-designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation. Especially, we are ISO9001 and ISO14001 certified. The founder of our company, Mr. Zha Guocai has devoted himself in the research, manufacture, production and business of drying equipment for over thirty years. Our company pays much attention to science and technology renovation and has cooperated with many institutes located in Shanghai, Wuhan and Chongqing, such as the Ministry of Chemical Industry and Tsinghua University. Therefore we can launch 3 to 5 new varieties into the market every year. In 1998, through approval of state relevant departments, our company set up China Research Center of Drying and Granulating that can research new process, develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We also have many testing machines in our lab for clients to make trials. Currently, our products have been sold to nearly 50 countries and regions around the world, including the USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Malaysia, Philippines, Korea, Japan, Taiwan, and Hong Kong. If high quality drying, blending, granulating and grinding equipment and professional services and technical support are what you are looking for, please do not hesitate to contact us. You are welcome to come to our factory to make investigation and trials.
