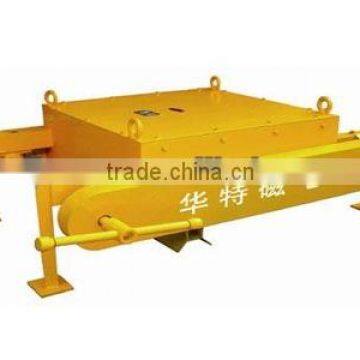

Series RCYP Permanent Magnetic Iron Separators for conveyor belt
- Qingdao/shanghai/tianjin
- Credit Card
You May Like
-
series HTECS eddy current separator for scrap recycling
-
series HTECS eddy current separator for scrap ships recycling
-
series HTECS eddy current separator for metal recycling
-
series HTECS eddy current separator for non-ferrous metal
-
series HTECS eddy current separator for scarps
-
series HTECS eddy current separator for waste
Product Details
| Place of Origin | Shandong, China | Brand Name | Huate | |
| Model Number | RCYP |
Product Description
Specifications
1.with high performance,2.with low price,
3.high performance and so on.
1.It is made up with the permanent magnetic core with high performance, iron-discharging chain and iron-protecting cover.
2. It is used to eliminate the ferromagnetism materials from the non-magnetic material. Inside we adopt the computerized simulating magnetic field circle design and perfect double magnetic poles structure.
3.As the ferromagnetism material accumulates, wag the handle to drive the scraper to eliminate the iron.
4.The equipment has the characteristics with low price, high performance and so on
Model | Belt width mm | Suspension Height H mm | Magnetic Intensity ≥mT | Material Depth ≤mm | Weight kg | Hanging Dimension D*Emm | Appearance Size A*B*C mm | Magnet dimension F*G mm |
RCYP-4 | 400 | 125 | 50 | 70 | 250 | 470*340 | 1100*910*500 | 500*500 |
RCYP-5 | 500 | 150 | 60 | 90 | 580 | 570*440 | 1200*1020*550 | 600*600 |
RCYP-6 | 600 | 175 | 60 | 125 | 680 | 670*500 | 1300*1120*560 | 700*700 |
RCYP- 6.5 | 650 | 200 | 70 | 150 | 820 | 715*550 | 1380*1170*550 | 750*750 |
RCYP-8 | 800 | 250 | 70 | 200 | 1500 | 915*750 | 1630*1300*560 | 950*950 |
RCYP-10 | 1000 | 300 | 70 | 250 | 2300 | 1050*900 | 1765*1500*560 | 1100*1100 |
RCYP-12 | 1200 | 350 | 70 | 300 | 3300 | 1250*1140 | 1960*1750*580 | 1300*1340 |
RCYP-14 | 1400 | 400 | 70 | 350 | 3800 | 1450*1350 | 2180*1950*620 | 1500*1550 |
