QPG Air Stream Spray Dryer(Drying machine)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Yibu | |
| Model Number | QPG | Type | Other, spray dryer | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wooden case
Product Description
QPG Air Stream Spray Dryer
Principles

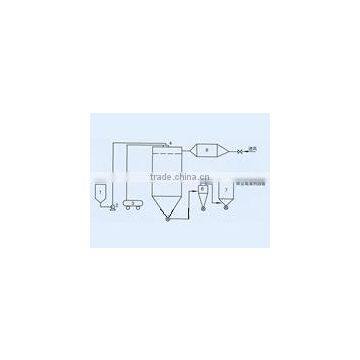

air stream spray dryer 's work principle
The clean air is heated and entered into drying tower,the raw material inside the tower is atomized into fine mist through muzzles of two or three flows. The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture (solvent) in the raw materials. The moisture or solvent is discharged accompany with hot air, then the power product is produced.
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
Features
QPG Air Stream Spray Dryer is good for raw materials that are large in viscosity,paste material,which the other equipment can not replace it.
More varieties and wide application in drying with lower temperature.
The nozzle is simple in structure,convenient in maintenance and low cost in operation.
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
Thechnical parameters
The technical parameters for QPG Air Stream Spray Dryer as bellow:
| parameters spec | 5 | 25 | 50 | 100 | 150 | 200 | |
amount of evaporation Kg/h | t=150-90 | 1.5 | 7.5 | 15 | 30 | 45 | 60 |
| t=200-100 | 2.5 | 12.5 | 25 | 50 | 75 | 100 | |
| t=250-100 | 3.75 | 18.75 | 37.5 | 75 | 112.5 | 150 | |
| t=300-100 | 5 | 25 | 50 | 100 | 150 | 200 | |
| t=350-110 | 6 | 30 | 60 | 120 | 200 | 240 | |
| pressure of air M3/min | 0.9 | 0.9 | 1.1 | 1.5 | 2.7 | 3.4 | |
| pressure of air Mpa | 0.4 | 0.6 | 0.7 | ||||
| Heat resource | electricity,electricity+steam,coal(oil)combustion furnace | ||||||
| consumption of heat 104Kcal/h | 1 | 5 | 10 | 20 | 30 | 40 | |
| power Kw | 0.75 | 4 | 7.5 | 11 | 15 | 18.5 | |
Note: (1) if the equipment is bigger than 200, it might be designed and manufactured in accordance with the requirements of customers.
(2) the power of fan is suitable of standard flow chart. If add the cloth bag to remove dust or recover solvent, it should be increased.
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer/QPG Air Stream Spray Dryer
(Drying machine)
