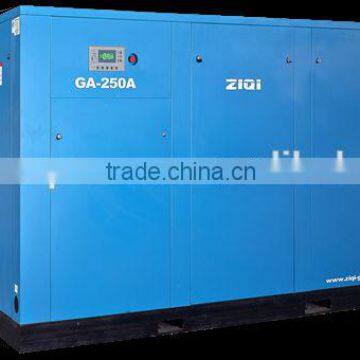

500 Kw Frequency Screw Air Compressor Imported From China

FOB Price

US$ 11,000 - 250,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw
Configuration	Other, Stationary, ISO9001	Power Source	AC Power
Lubrication Style	Oil-less	Mute	No
Place of Origin	Shanghai, China	Brand Name	ZIQI, ZIQI
Model Number	GA-500W VFC	Voltage	380,3000 ,6000,10000/3/50,60
Dimension(LWH)	4650x2300x2400mm	Weight	10450KG
Certification	ISO9001	Warranty	One Year
After-sales Service Provided	Overseas service center available

500 Kw Frequency Screw Air Compressor Imported From China

Product Description

Production Name		Screw air compressor
Model Number		GA-500W VFC
Brand Name		ZIQI
Configuration		Stationary
Air displacement/ exhaust pressure	mmm/min/MPA	9.00-90.0/0.7 8.70-87.0/0.8 8.00-80.0/1.0 6.80-68.0/1.3
Compressor series		single stage
Cooling method		A-air Cooling W-watering Cooling
Exhaust temperature	℃	Air Cooling <Ambient temperature +15℃ Watering Cooling<40℃
Water temperature	℃	≤32
Water pressure	MPa	0.2-0.6
Noise level	B(A)	86 2
Transmission		Flexbility direct drive
Electric suppy	V/ph/Hz	380,3000 ,6000,10000/3/50,60
Motor Power	KW	500
Lubricant oil	L	230
Starting method		Frequency start up
Dimension(LWH)	mmxmmxmm	4650x2300x2400mm
Weight	Kg	10450
Exit diameter	mm	150
Cooling water connector pipe diameter	mm	50

Advantages:

Using the renowned US Dynisco andapt to the high wearing and corrosion producing environment.
High quality oil and air separator core,the oil content though profession strict test<3ppm
Adopt ZIQI unique reverse-lock technology,oil never leak.Italy manuli,life will be five times longer compared to ordinary rubber tube
German Original twin-screw air end,triple-seal,patent pruducts,air end never leak oil.
The original allocation with high efficient steady intake valve,more fuelefficient,high reliability.
high quality,and low price.
various specification and models for your choice.
Lower noise
Good after-sales service
Superior and compact designing

Frequency inverter air compressor cost comparison

in the wholo cycle of compressor operation,energy saving will far exceed the compressor price

Technical Parameter

Detail Images
