15kw Energy Save Frequency Air Compressor Witn air cooling
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
500 Kw Frequency Screw Air Compressor Imported From China
-
450Kw Variable Frequency Single Stage Electric Screw Air Compressor
-
Variable Frequency Inverter Screw Air Compressor Prices
-
Good-quality Low noise Frequency Air Compressor
-
Best Popular Frequency Air Compressor Price
-
German technology Green Frequency Air Compressor recognized
Product Details
Condition | New | Type | Screw | |
Configuration | Portable | Power Source | AC Power | |
Lubrication Style | Lubricated | Mute | No | |
Place of Origin | Shanghai, China | Brand Name | ZIQI | |
Model Number | GA-15AVFC | Voltage | 380/400/415/440/460/660/690V | |
Dimension(L*W*H) | 1260*1000*1230mm | Weight | 590kg | |
Certification | ISO9001 | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

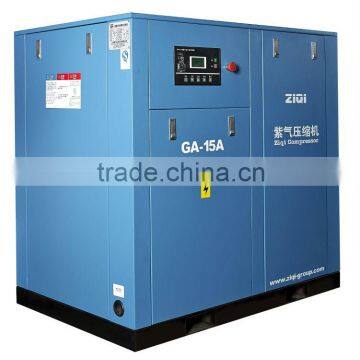

15kw Energy Save Frequency Air Compressor Witn air cooling
Model | GA-15AVFC | ||
Air discharge/Pressure discharge | m³/min/Mpa | 0.27~2.7/0.7 , 0.25~2.5/0.8, 0.23~ 2.3/1.0 ,0.20~ 2.0/1.3 | |
compression series |
| Single stage | |
Cooling model |
| Air cooling | |
Exhaust temperature | ºC | < Ambient temperature +15ºC | |
Air inlet temperature | ºC | ≤32ºC | |
Noises Level | dB(A) | 63±2 | |
Transmission |
| Belt drive | |
Power supply | V/Ph/Hz | 380/400/415/440/460/660/690/3/60 | |
Protection grade |
| IP55 | |
Motor power | kw | 15 | |
Starting model |
| Frequency start up | |
Dimensions | L | mm | 1260 |
| W | mm | 1000 |
| H | mm | 1230 |
Weight | Kg | 590 | |
Exit diameter | mm | 25 |
By the German GHH ZiQi compressor (wujiang factory, same below), the German GHH company abundant scientific research technology, the most advanced computer management system, the host with the most in the world patent linear manufacturers, the European standard production line, make the company produced "ZiQi" double screw air compressor on the technology, energy saving, and a new level, the production of the third generation with the European synchronization, energy-saving screw compressor and low noise.The company has always been adhering to the European advanced design concept and exquisite assembly process, and continuously improve the production process, strengthen the monitoring method.ZiQi compressor to provide you with the best compressed air system solutions.Ensure that every component of the product quality is the premise of our work center, it is also inspire us to achieve perfect in all aspects.
We firmly believe that ZiQi is a professional manufacturer of compressor you can trust.Company produces the product series include air-cooled screw air compressor, water cooled screw air compressor, screw air compressor frequency conversion and mobile screw air compressor, freeze drying machine, precision filter, adsorption dryer, etc.At the scene of the production, ZiQi compressor will provide users with high-quality compressor air system, to the user to achieve the best production capacity.User can choose in the range of our products a complete set of compressed air system to meet the various needs.
We are committed to:
We will through innovation, communication with users work together to provide users with better compressed air system!
