Home > Products > After treatment equipment > automatic compressed air filter

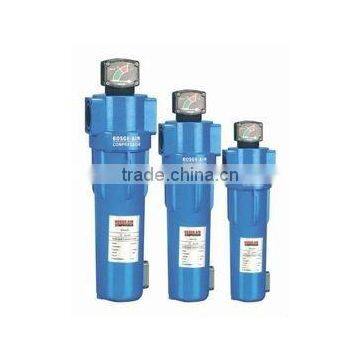

automatic compressed air filter
- shanghai
- T/T
You May Like
Product Details
| Type | Screw | Configuration | Stationary | |
| Power Source | Natural Gas | Lubrication Style | Oil-less | |
| Mute | Yes | Place of Origin | Shanghai, China | |
| Brand Name | goodair | Model Number | D-001 |
Product Description
Specifications
The Efficiency of FilterE: solid particles: 3 u oil content: 5ppm
D: solid particles: 0.1 u oil content: 1.0ppm
The Efficiency of Filter
E: solid particles: 3 μ, oil content: 5ppm
D: solid particles: 0.1 μ, oil content: 1.0ppm
C: solid particles: 0.01μ, oil content: 0.01ppm
B: solid particles: ≤0.01μ, oil content: ≤0.01ppm
A: solid particles: ≤0.01μ, oil content: 0.003ppm
Good Air Compressor Company sincerely hopes to serve you. We are a professional compressed air purification equipment manufacturer located in China.
Model | Capacity (Nm3/min) | Element Quantity | Dimension (mm) | Air Connection | Weight (kg) | |||||||
E- | D- | C- | B- | A- | A (Width) | B (Height) | ||||||
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 1 | 105 | 250 | ZG1″ | 2 | ||
001 | 001 | 001 | 001 | 001 | 1.2 | 1 | 105 | 250 | ZG1″ | 2 | ||
002 | 002 | 002 | 002 | 002 | 2.4 | 1 | 105 | 310 | ZG1 1/2″ | 3 | ||
004 | 004 | 004 | 004 | 004 | 3.8 | 1 | 137 | 400 | ZG1 1/2″ | 4 | ||
005 | 005 | 005 | 005 | 005 | 5 | 1 | 137 | 400 | ZG1 1/2″ | 5 | ||
007 | 007 | 007 | 007 | 007 | 6.8 | 1 | 137 | 425 | ZG1 1/2″ | 5 | ||
008 | 008 | 008 | 008 | 008 | 8.5 | 1 | 137 | 620 | ZG1 1/2″ | 10 | ||
010 | 010 | 010 | 010 | 010 | 10.7 | 1 | 137 | 620 | ZG1 1/2″ | 10 | ||
013 | 013 | 013 | 013 | 013 | 13.5 | 1 | 137 | 620 | ZG2″ | 10 | ||
018 | 018 | 018 | 018 | 018 | 18 | 1 | 137 | 620 | DN80 | 10 | ||
024 | 024 | 024 | 024 | 024 | 24 | 2 | 153 | 940 | DN80 | 14 | ||
036 | 036 | 036 | 036 | 036 | 36 | 2 | 456 | 1033 | DN80 | 65 | ||
045 | 045 | 045 | 045 | 045 | 45 | 2 | 456 | 1128 | DN100 | 68 | ||
054 | 054 | 054 | 054 | 054 | 54 | 3 | 513 | 1215 | DN125 | 96 | ||
066 | 066 | 066 | 066 | 066 | 66 | 3 | 513 | 1215 | DN125 | 96 | ||
