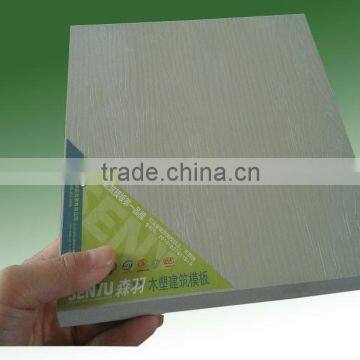

High Strength PVC WPC formwork

1.Product name

wpc template for concrete formwork

2.Specifications

Maximum length is unlimited, maximum width is 1220mm

3.Usage

widely used in building construction

4.Features

fireproof, waterproof, heat/cold resistance, anti-ultraviolet, anticorrosive, electric insulation

5.High strength

Modulus of Elasticity 1461N/mm2

6.Material stability

available for both sides, natural feel&wood touch

7.Resist temperature

from -20 °C to 110°C

8.Environment effect

recyclable 100%

9.Certificate

CE &BV certification

10.Install instruction and notice

1) can put it anywhere when install it

2)easy to nail, drill, nail and cut to any size you want

3)the keel or supporter should be flat, the maximum distance is 240mm between to keels or supporters

4)enhance iron nail, about 10mm to board edge to nail.

5)when form removal, don't be violent.

6)when repeat to use it, don't need to brush parting agent

Characteristic

WPC

Wood

Moisture Resistance

Waterproof

Water absorptive

Rot Resistance

Antisepsis

Rot except special treating

Split Resistance

No Cracked

Cracked by weathering effect

Distortion Resistance

Almost no Contraction /expansion

Distorting effected by change of moisture and

temperature

UV Resistance

High grade UV resistance

Easily effected by UV

Fading Resistance

Almost No

Easy to fade

Outdoor adaptability

Great

Only few of treated-wood adaptive

No need Painting

No need

Need paint periodically

Durable/Longevity

>8-15 years

<3 years

Various Configuration

extruded via various mould

simplex

Environment Effect

Recyclable 100%

Consume woods
