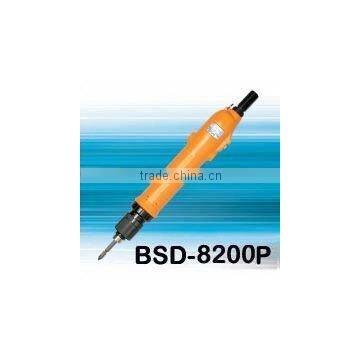

High Accuracy Torque Compact DC Automatic Electric Screwdriver (electric screw driver for assembly)68

High Torque Compact DC Automatic Electric Screwdriver (electric screw driver for assembly,electric tool)

 American and Japanese high-tech DC high performance servo-motors are applied with super strong magnetic iron. The motor starts up quickly with a small current. With heat radiation fan and ventilation holes, the motor heat is disseminated quickly. It can continuously operate at low temperature rise. Gear assembly and clutch are manufactured with alloy steel materials imported from Japan. They have low torque attenuation, high stability and long lifetime.

Specifications:

1) Torque:7- 24 kgf.cm( 0.69-2.35 N.m )

2) Torque accuracy 3%

3) Unloaded rotation speed: 1,000r.p.m

4) Most applied to office machines,PC and peripheral optional

5) Screw diameter: a) Machine screw: 3.0 - 5.0mm b) Tapping screw: 3.0 - 4.0mm

6) Weight: 600g

7) Length: 260mm

8) Suspension rack model: KH-3

9) Torque fixing ring model: KC-2

10) Bit type: a) M6 ø5mm b) HEX ø5mm c) HEX 6mm

11) Pow controller model:BSP-32HL-60W

Details of goods:

1.Product packaging 33*10*8cm

2.Open it

3.All parts included

4.Connect them together

.

5.Push start

6.0-8 stepless torque adjustment

7.New design!

8.You may hang it up with spring

9.The right side

10.The other side

11.The power controller
